Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Secure steering gear assembly with a vise, using copper plates or something similar to prevent it from being damaged. Do not grip cylinder in a vise.
  • Before performing disassembly, clean steering gear assembly with kerosene. Be careful not to bring any kerosene into contact with the discharge and return port connectors.

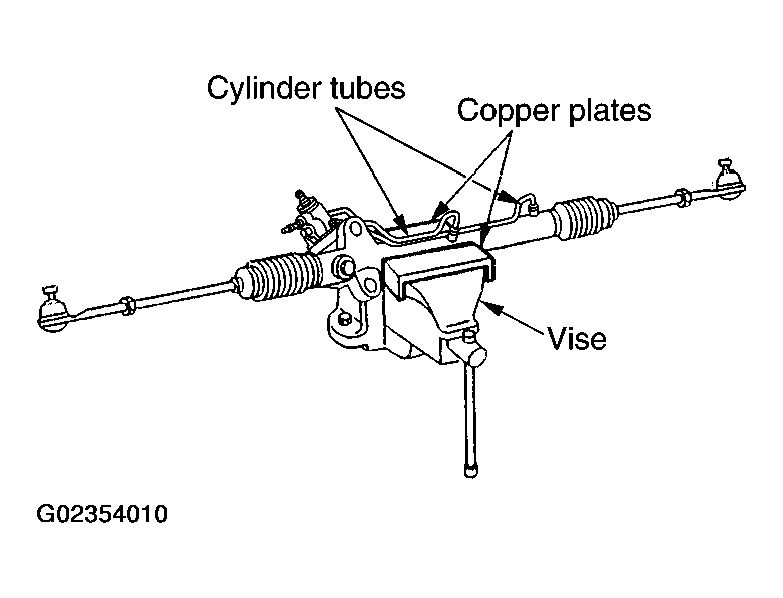

    Fig 1: Securing Steering Gear Assembly With A Vise, Using Copper Plates
    G02354010Courtesy of NISSAN MOTOR CO., U.S.A.
