Power Window Sub-Switch (Front Passenger Side) Power Supply And Ground Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER SUPPLY CIRCUIT
Check voltage between power window sub-switch (front passenger side) connector D36 terminal 10 and ground.

10 (W) - Ground: Battery voltage

OK or NG
1. OK: GO TO 2.
2. NG: GO TO 3.

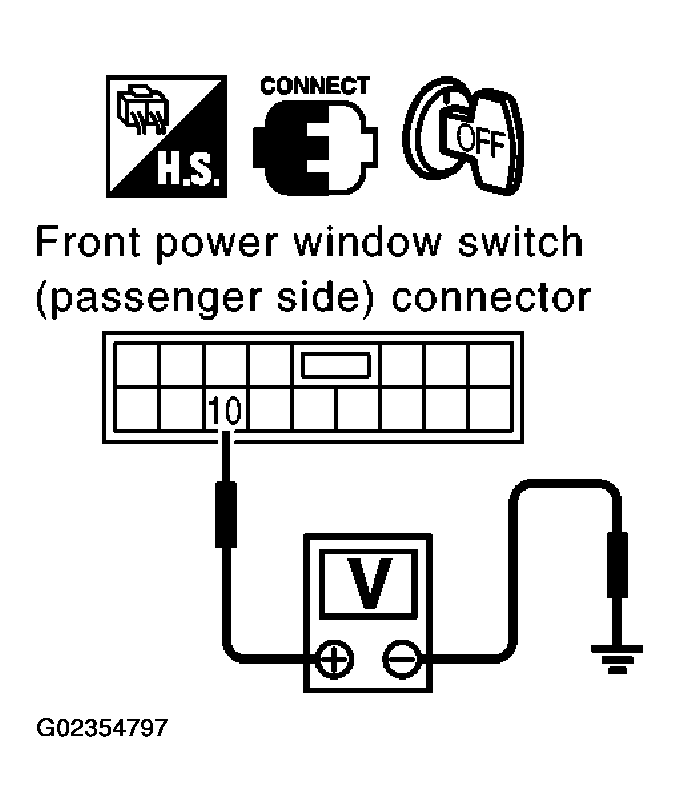

  Fig 1: Checking Voltage Between Power Window Sub-Switch (Front Passenger Side) Connector D36 Terminal 10 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window sub-switch (front passenger side) connector.
3. Check continuity between power window sub-switch (front passenger side) connector D36 terminal 11 and ground.
  11 (B) - Ground: Continuity should exist.
OK or NG
1. OK: Power window sub-switch (front passenger side) power supply and ground circuits are OK.
2. NG: Repair or replace harness.

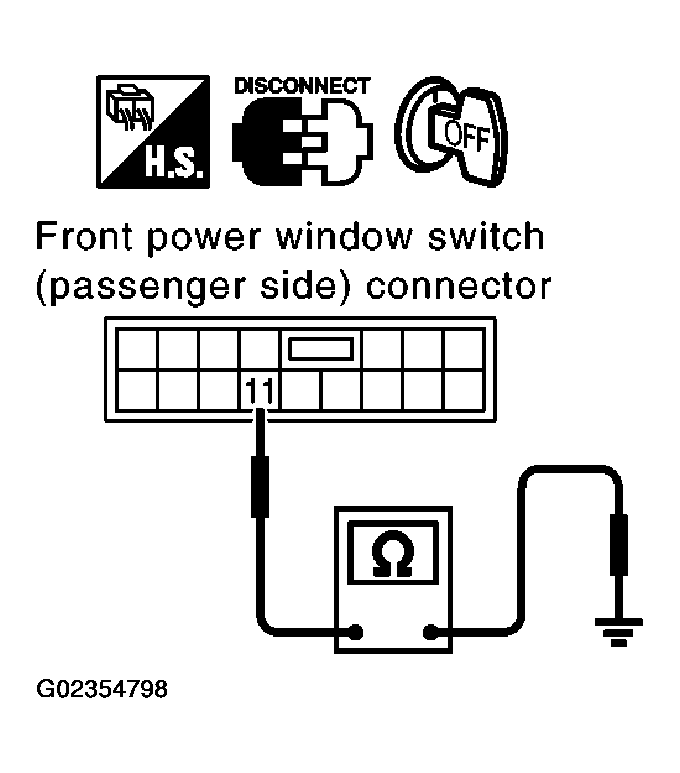

  Fig 2: Checking Continuity Between Power Window Sub-Switch (Front Passenger Side) Connector D36 Terminal 11 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK POWER WINDOW SUB-SWITCH POWER SUPPLY CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM connector M2 terminal 54 and power window sub-switch (front passenger side) connector D36 terminal 10.
  54 (W) - 10 (W): Continuity should exist.
3. Check continuity between BCM connector M2 terminal 54 and ground.
  54 (W) - Ground: Continuity should not exist.
OK or NG
1. OK: Check the condition of the harness and the connector.
2. NG: Repair or replace harness.

  Fig 3: Checking Continuity Between BCM Connector M2 Terminal 54 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
