Power Window Motor (Front Passenger Side) Circuit Check

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check Power Window Sub-Switch (Front Passenger Side) Output Signal
1. Connect power window sub-switch (front passenger side) connector.
2. Turn ignition switch ON.
3. Check voltage between power window sub-switch (front passenger side) connector D37 terminal 4 and 5.

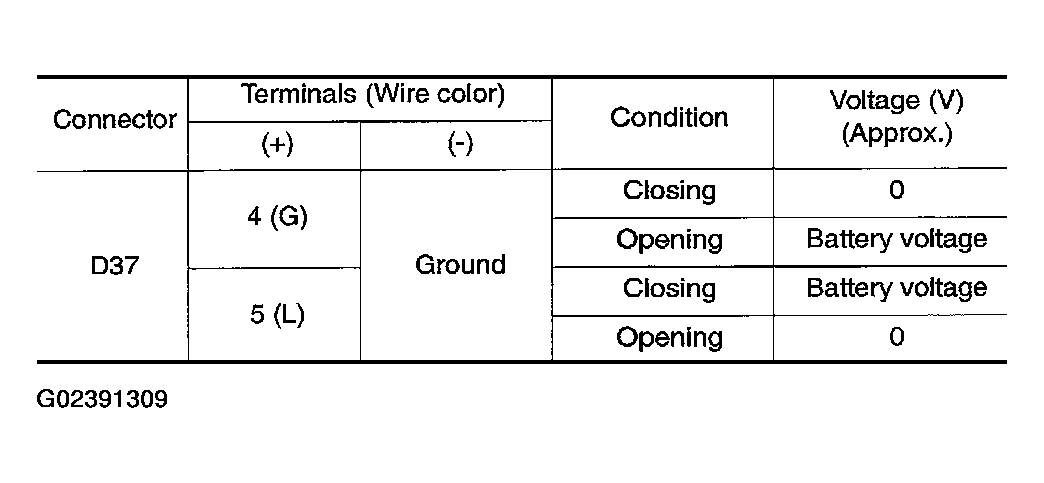

  Fig 1: Voltage Measuring Table - Between Power Window Sub-Switch (Front Passenger Side) Connector D37 Terminal 4 And 5
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 2.
2. NG : Replace power window sub-switch (front passenger side).

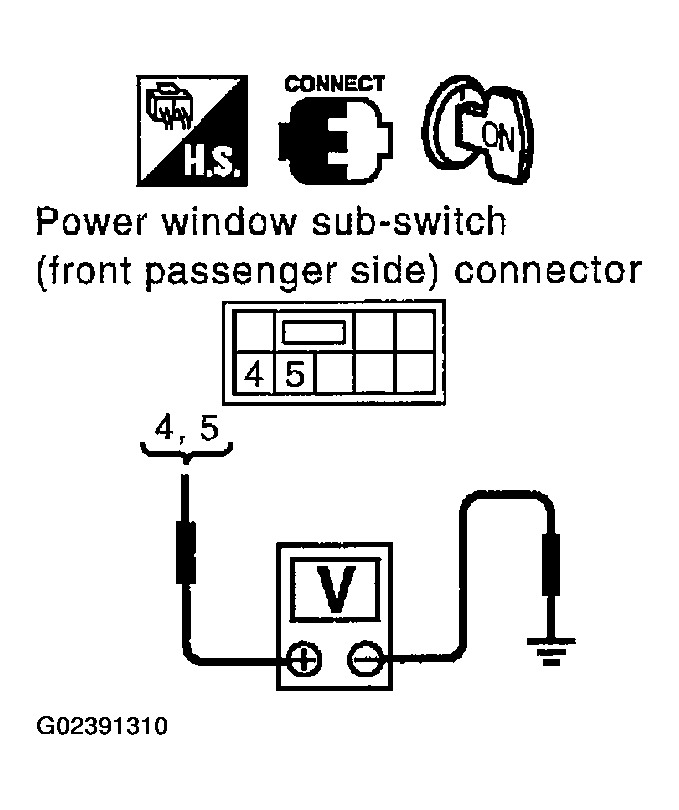

Fig 2: Checking Voltage Between Power Window Sub-Switch (Front Passenger Side) Connector D37 Terminal 4 And 5
Courtesy of NISSAN MOTOR CO., U.S.A.
Check Power Window Motor (Front Passenger Side) Circuit
1. Turn ignition switch OFF.
2. Disconnect power window motor (front passenger side) and power window sub-switch (front passenger side) connector.
3. Check continuity between power window sub-switch (front passenger side) connector D37 terminals 4, 5 and power window motor (front passenger side) connector D38 terminals 1, 2.
  1. 4 (G) - 1 (G): Continuity should exist.
  2. 5 (L) - 2 (L): Continuity should exist.
OK or NG
1. OK : Replace power window motor (front passenger side)
2. NG : Repair or replace harness between power window sub-switch (front passenger side) and power window motor (front passenger side).

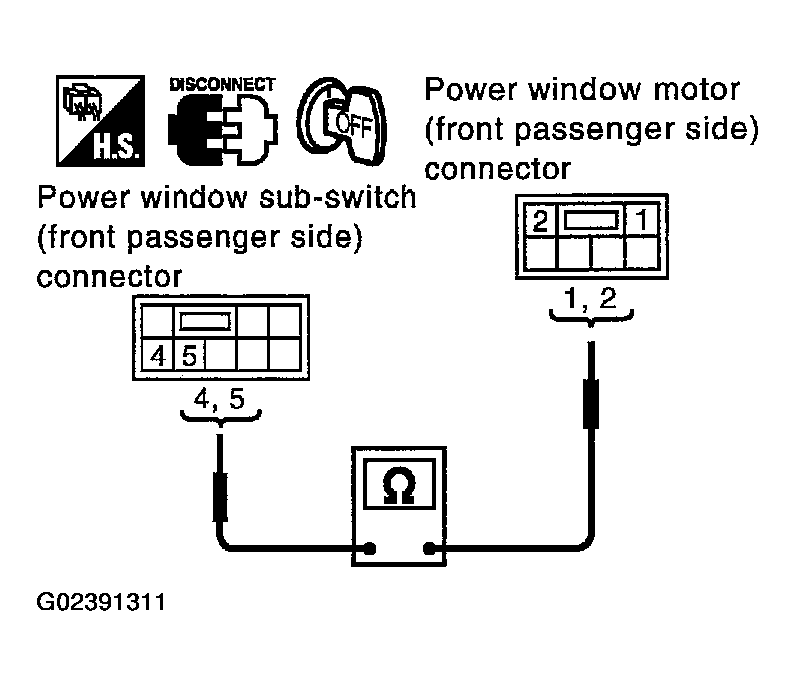

Fig 3: Checking Continuity Between Power Window Sub-Switch (Front Passenger Side) Connector D37 Terminals 4, 5 And Power Window Motor (Front Passenger Side) Connector D38 Terminals 1, 2
Courtesy of NISSAN MOTOR CO., U.S.A.
