Power Window Motor (Front Driver Side) Circuit Check/With Front And Rear Window Anti-Pinch System

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check Power Window Main Switch Output Signal
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector D6 terminal 11 and 18.

  Fig 1: Voltage Measuring Table - Between Power Window Main Switch Connector D6 Terminal 11 And 18
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 2.
2. NG : Replace power window main switch.

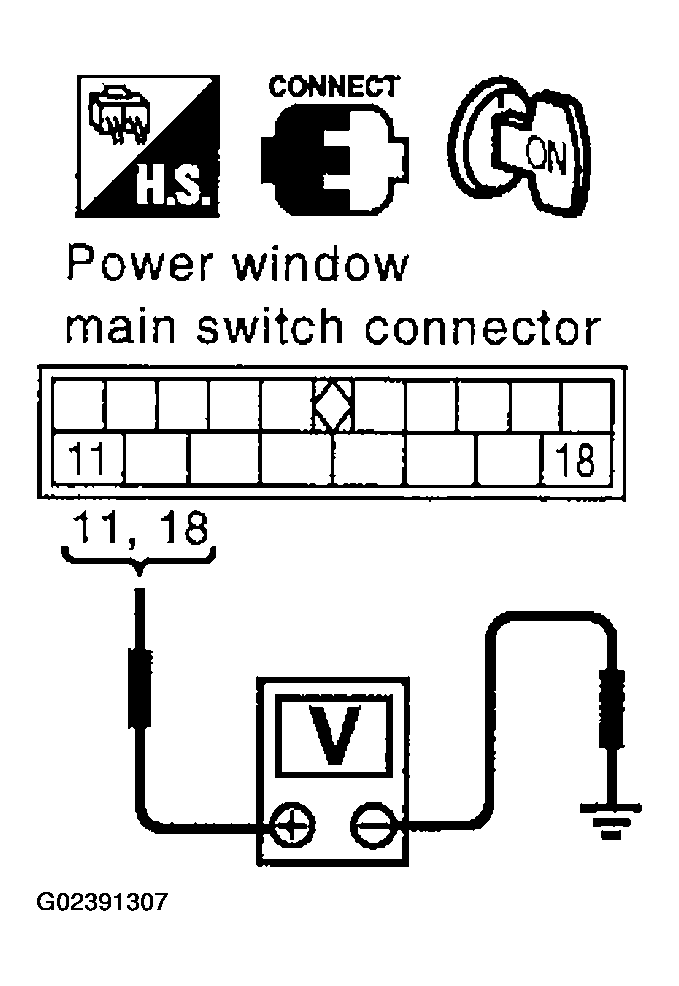

Fig 2: Checking Voltage Between Power Window Main Switch Connector D6 Terminal 11 And 18
Courtesy of NISSAN MOTOR CO., U.S.A.
Check Power Window Motor Circuit
1. Turn ignition switch OFF.
2. Disconnect power window main switch and power window motor (front driver side) connector.
3. Check continuity between power window main switch connector D6 terminal 11,18 and power window motor (front driver side) connector D9 terminal 1, 2.
  1. 11 (L) - 2 (L): Continuity should exist.
  2. 18 (G) - 1 (G): Continuity should exist.
OK or NG
1. OK : Replace power window motor (front passenger side)
2. NG : Repair or replace harness between power window main switch and power window motor (front driver side).
Fig 3: Checking Continuity Between Power Window Main Switch Connector D6 Terminal 11,18 And Power Window Motor (Front Driver Side) Connector D9 Terminal 1, 2
Courtesy of NISSAN MOTOR CO., U.S.A.
