Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove driver-side lower instrument panel. Refer to (C) Instrument Lower Driver Panel under "REMOVAL AND INSTALLATION ".
  2. Remove VDC/TCS/ABS control unit.

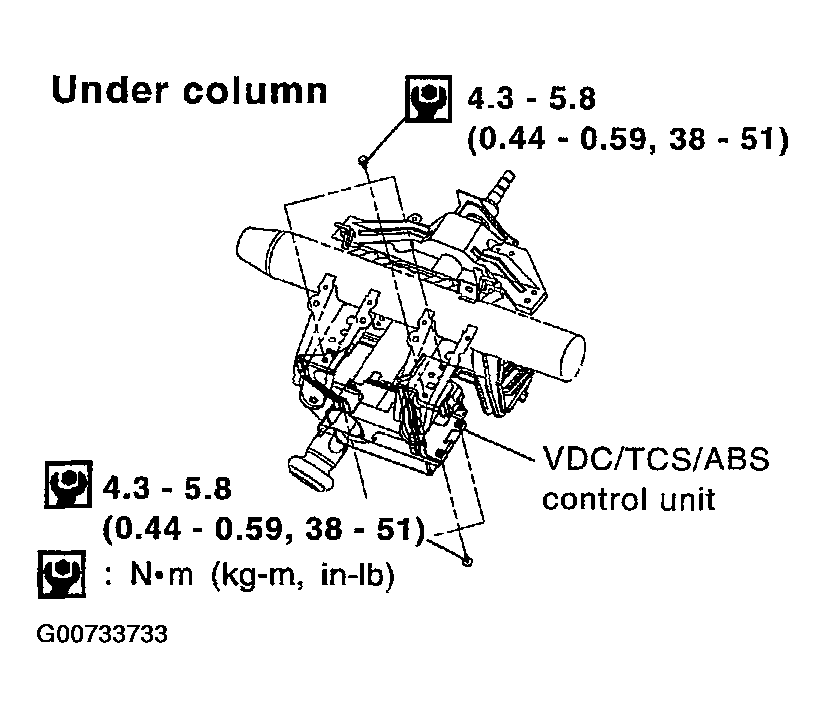

    Fig 1: Locating VDC/TCS/ABS Control Unit
    G00733733Courtesy of NISSAN MOTOR CO., U.S.A.
