CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

For details, refer to the separate "CONSULT-II Operations Manual".

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch to ON position. (Do not start engine.)
Touch "START (NISSAN BASED VHCL)".

Fig 2: Consult-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".
If "A/T" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Consult-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DTC WORK SUPPORT".

Fig 4: Consult-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu (1st, 2nd, etc.).

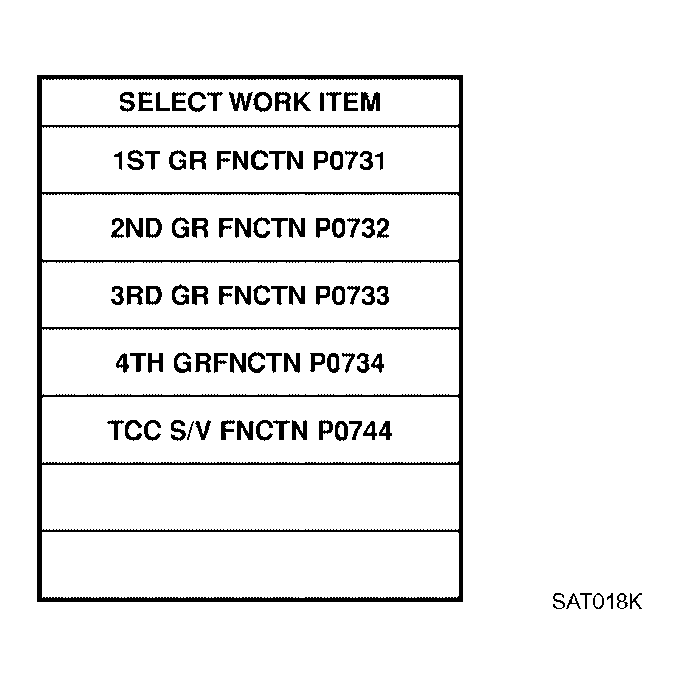

Fig 5: CONSULT-II Display - Select Work Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

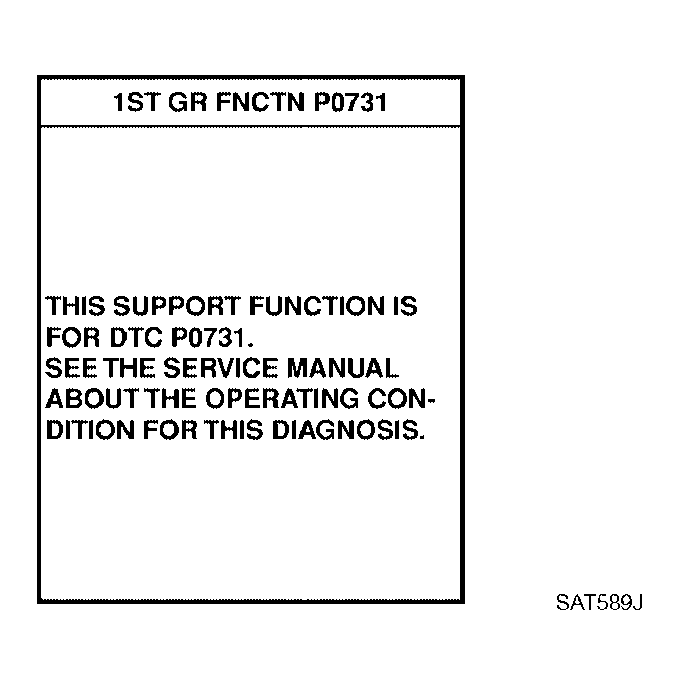

Fig 6: CONSULT-II Display - 1st GR FNCTN P0731
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

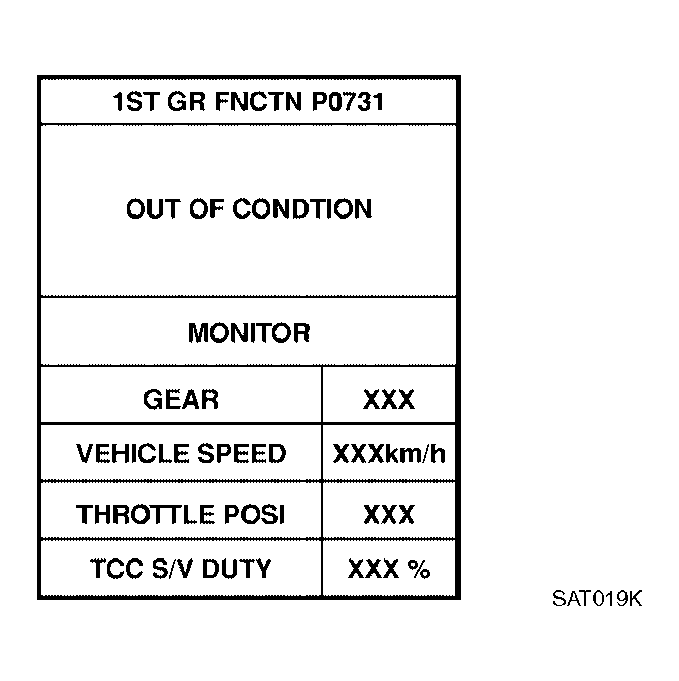

Fig 7: CONSULT-II Display - Out Of Condition
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING" .

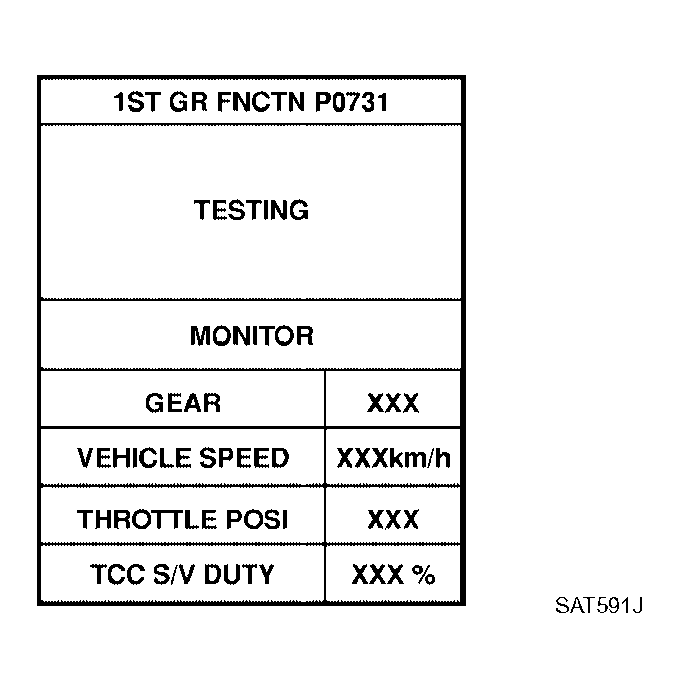

  Fig 8: CONSULT-II Display - Testing
  Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE ".

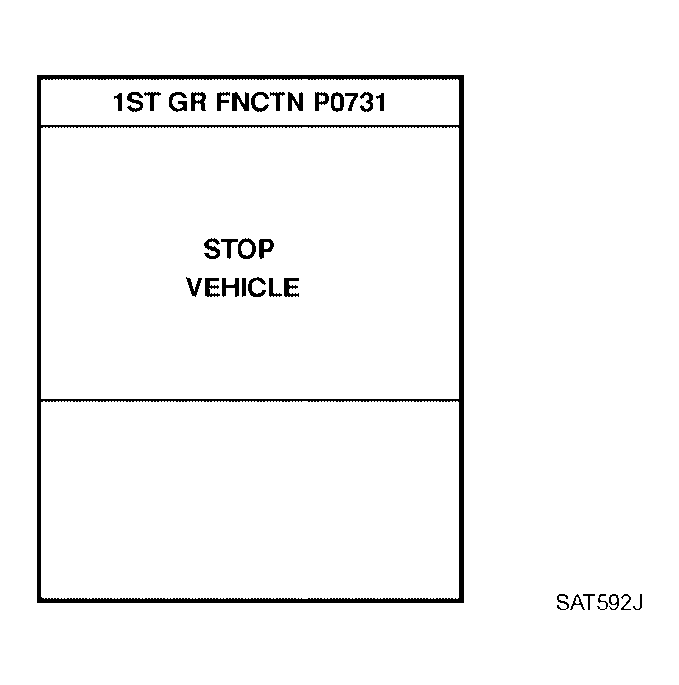

Fig 9: CONSULT-II Display - Stop Vehicle
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: CONSULT-II Display - 1st GR FNCTN P0731
Courtesy of NISSAN MOTOR CO., U.S.A.

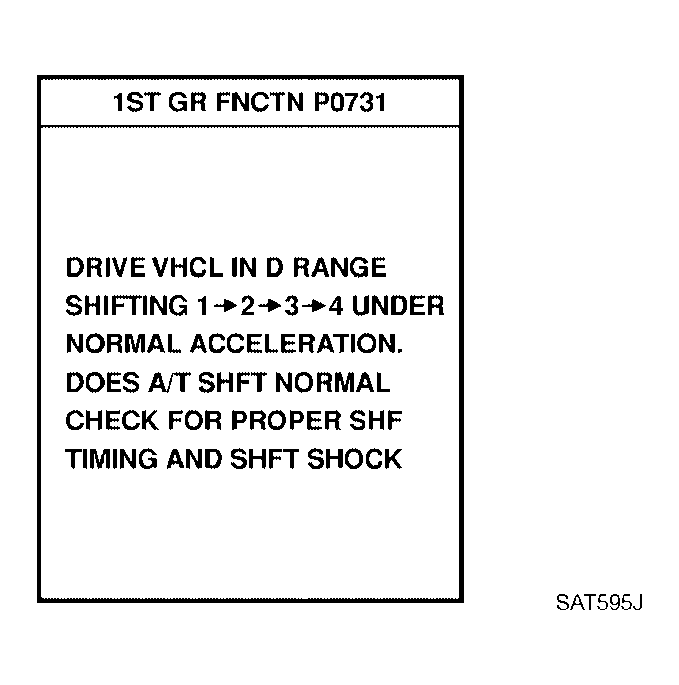

Perform test drive to check gear shift feeling in accordance with instructions displayed.

Fig 11: CONSULT-II Display - 1st GR FNCTN P0731
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "YES" or "NO".

Fig 12: CONSULT-II Display - 1st GR FNCTN P0731
Courtesy of NISSAN MOTOR CO., U.S.A.

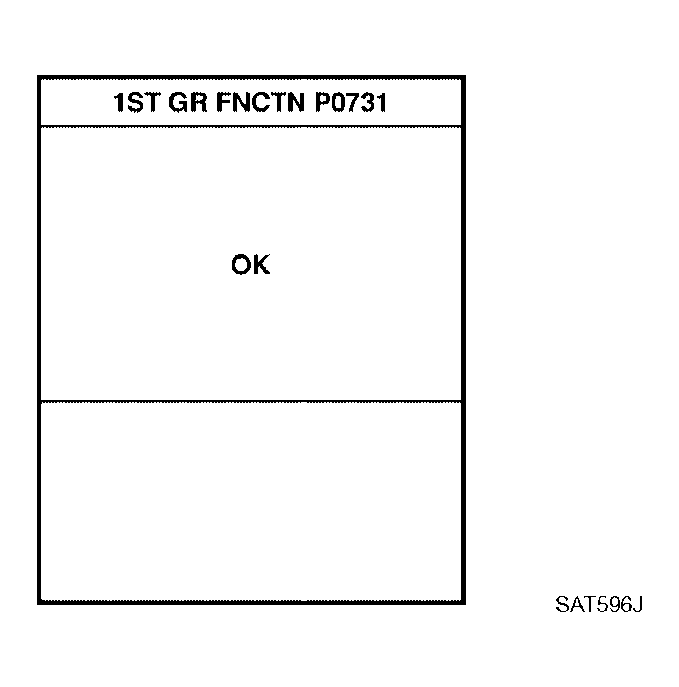

CONSULT-II procedure ended.

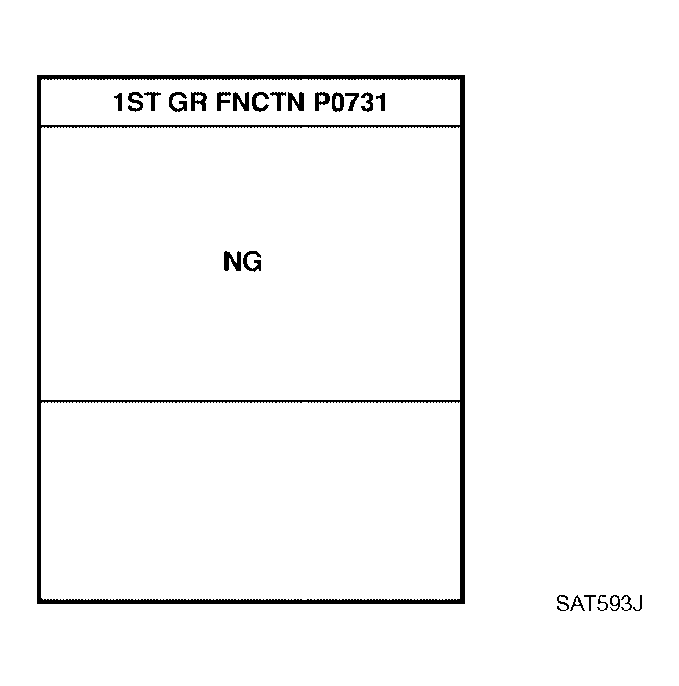

If "NG" appears on the scene, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE ".

Fig 13: CONSULT-II Display - 1st GR FNCTN P0731
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: CONSULT-II Display - 1st GR FNCTN P0731
Courtesy of NISSAN MOTOR CO., U.S.A.
