With Consult-II

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine (VDC switch OFF).
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Press MAIN switch and make sure that CRUISE indicator lights up.
  4. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    SPECIFIED CONDITIONS

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position

    If DTC is detected, go to "DIAGNOSTIC PROCEDURE "

    If DTC is not detected, go to the following step.

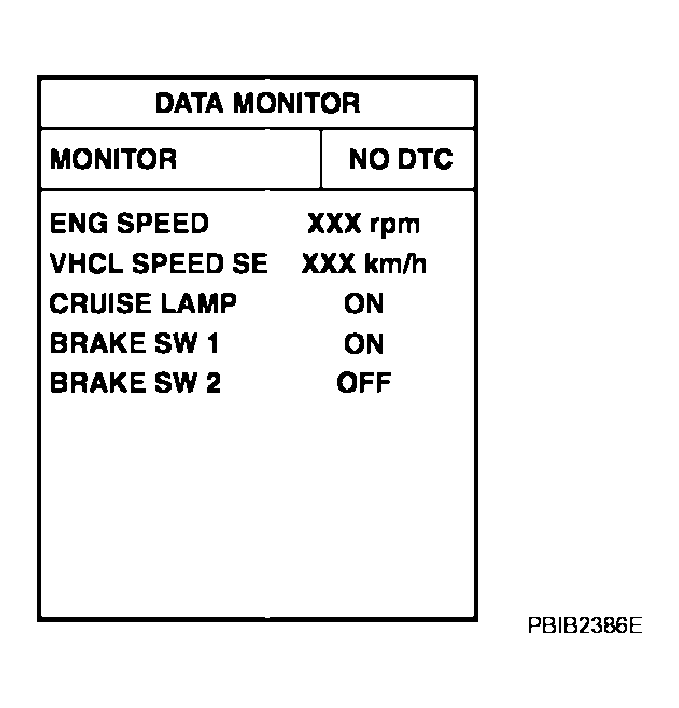

    Fig 1: CONSULT-II Display - Data Monitor
    G04173674Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    SPECIFIED CONDITIONS

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position
    Driving location Depress the brake pedal for more than five seconds so as not to come off from the above-mentioned vehicle speed.
  6. If DTC is detected, go to "DIAGNOSTIC PROCEDURE "
