Diagnostic Procedure

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground three screws on the body. Refer to "GROUND INSPECTION "

  Fig 1: Locating Body Ground Screws
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.
CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness connector.

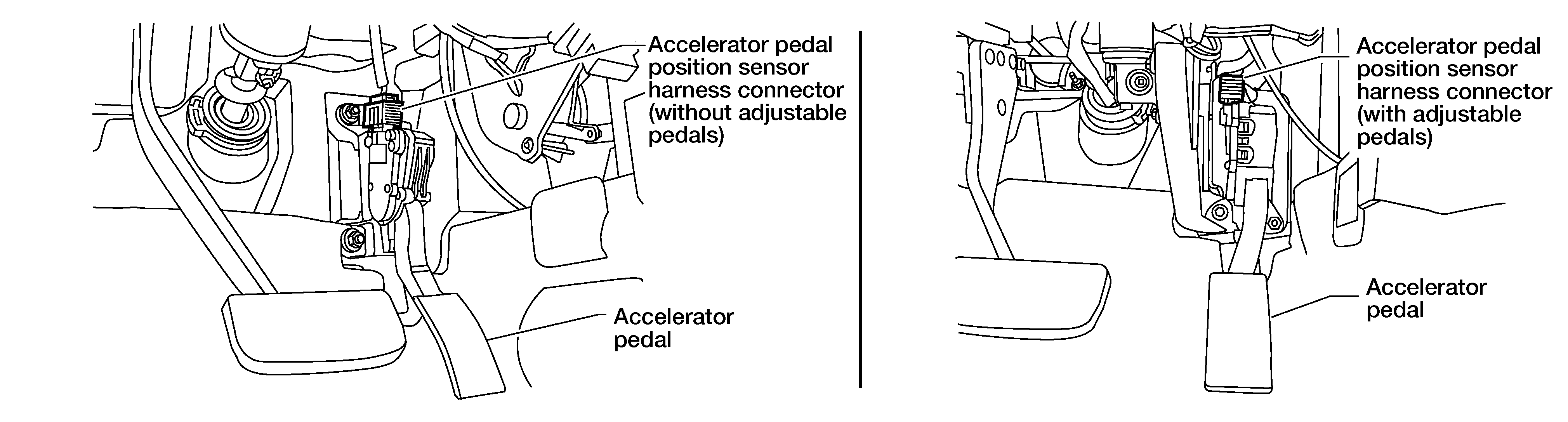

  Fig 2: Checking Accelerator Pedal Position Sensor 1 Power Supply Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 2 and ground with CONSULT-II or tester.
Voltage: Approximately 5V

OK or NG

OK: GO TO 6.

NG: GO TO 3.

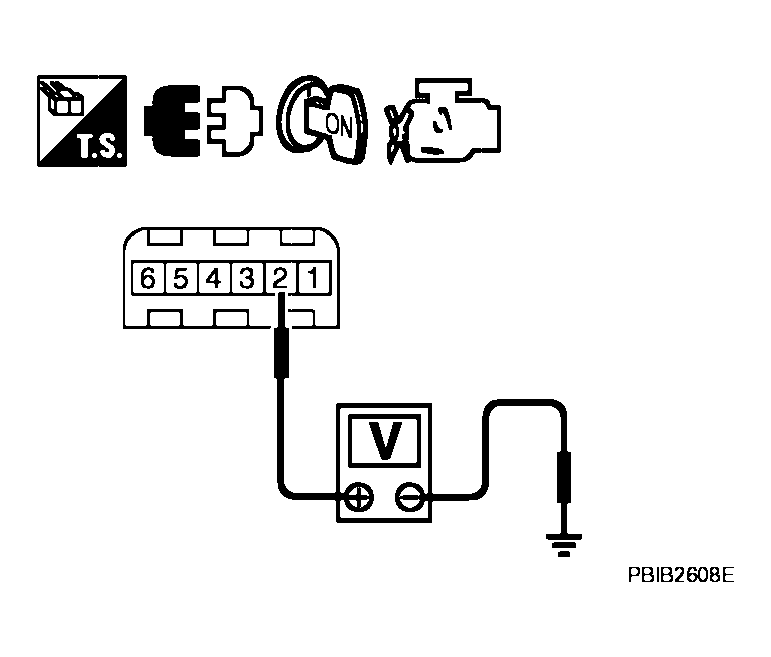

Fig 3: Checking Voltage Between APP Sensor Terminal 2 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 2 and ECM terminal 90.
Refer to WIRING DIAGRAM .

Continuity should exist.

OK or NG

OK: GO TO 4.

NG: Repair open circuit.

CHECK SENSOR POWER SUPPLY CIRCUITS

Check harness for short to power and short to ground, between the following terminals.

SENSOR POWER SUPPLY CIRCUITS REFERENCE WIRING DIAGRAM

ECM terminal	Sensor terminal	Reference Wiring Diagram
90	APP sensor terminal 2	WIRING DIAGRAM
48	EVAP control system pressure sensor terminal 3	WIRING DIAGRAM
49	Refrigerant pressure sensor terminal 3	WIRING DIAGRAM
49	Battery current sensor terminal 1	WIRING DIAGRAM
68	PSP sensor terminal 3	WIRING DIAGRAM

OK or NG

OK: GO TO 5.

NG: Repair short to ground or short to power in harness or connectors.

CHECK COMPONENTS
Check the following.
- EVAP control system pressure sensor (Refer to "COMPONENT INSPECTION ")
- Refrigerant pressure sensor (Refer to "COMPONENTS ")
- Battery current sensor (Refer to "COMPONENT INSPECTION ")
- Power steering pressure sensor (Refer to "COMPONENT INSPECTION ")
OK or NG

OK: GO TO 8.

NG: Replace malfunctioning component.
CHECK APP SENSOR
Refer to "COMPONENT INSPECTION "

OK or NG

OK: GO TO 8.

NG: GO TO 7.
REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING "
3. Perform "THROTTLE VALVE CLOSED POSITION LEARNING "
4. Perform "IDLE AIR VOLUME LEARNING "
: INSPECTION END
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT "

: INSPECTION END
