Removal and Installation for Compressor: Notes

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

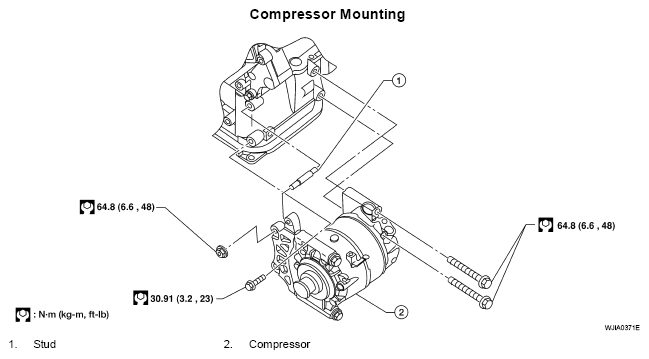

Fig 1: Removing/Installing Compressor With Torque Specifications
G04908438Courtesy of NISSAN MOTOR CO., U.S.A.
