Piston Selection Table

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

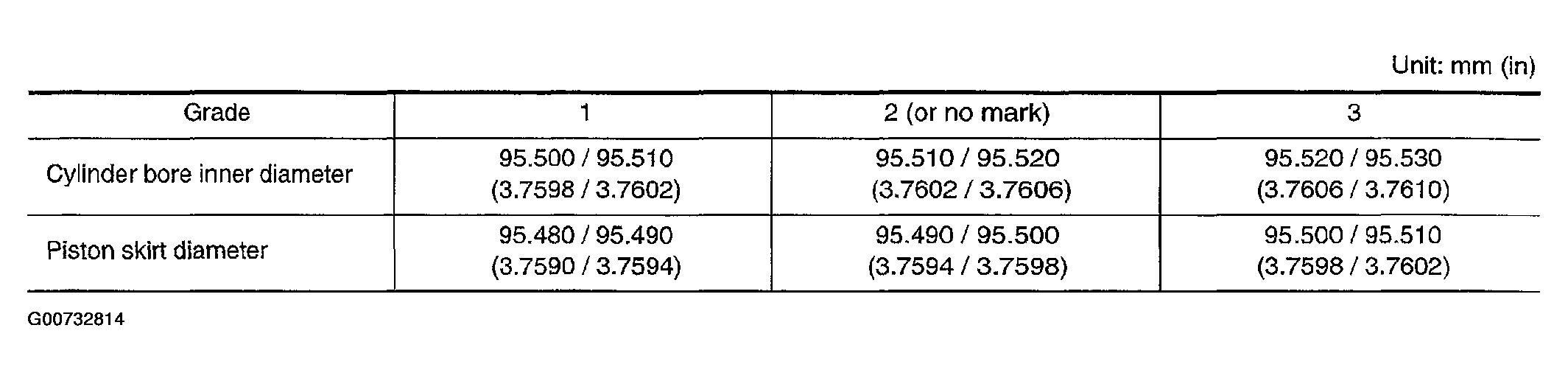

Fig 1: Piston Selection Table
G00732814Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Piston is available together with piston pin as assembly.
  • The piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no piston pin grades can be selected. (Only "O" grade is available.)
  • No second grade mark is available on piston.
