Power Supply and Ground Circuit Check for AV Switch

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSES

Check the fuses below.

FUSES REFERENCE CHART

Unit	Power source	Fuse No.
AV switch	Battery power	19
AV switch	Ignition switch ACC or ON	4

OK or NG

OK: GO TO 2.

NG: If fuse is blown be sure to eliminate cause of malfunction before installing new fuse. Refer to , "POWER SUPPLY ROUTING CIRCUIT ".

CHECK POWER SUPPLY CIRCUIT

Disconnect AV switch connector.

Check voltage between AV switch and ground.

POWER SUPPLY CIRCUIT

Terminals			Ignition switch position
(+)		(-)	OFF	ACC	ON
Connector	Terminal	(-)	OFF	ACC	ON
M98	1	Ground	Battery voltage	Battery voltage	Battery voltage
M98	2	Ground	0V	Battery voltage	Battery voltage

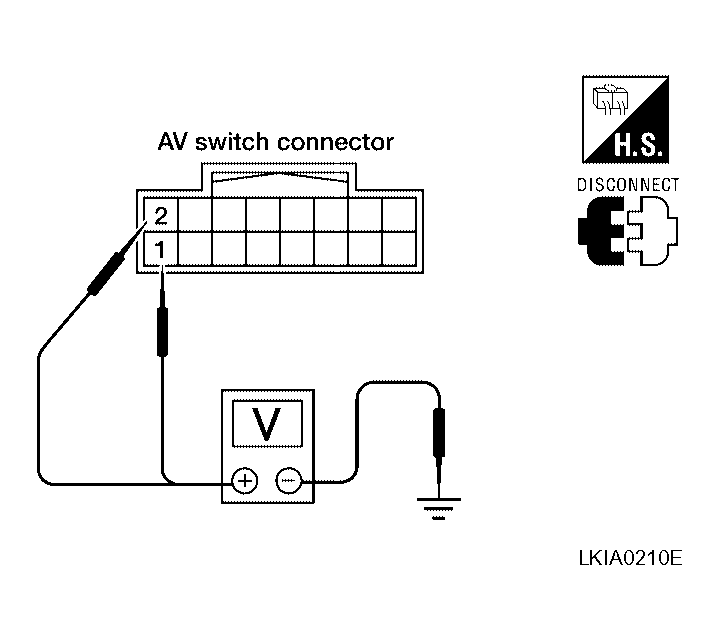

Fig 1: Checking Power Supply Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: Check harness for open between AV switch and fuse.

CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between AV switch harness connector M98 terminal 5 and ground.
  Continuity should exist.

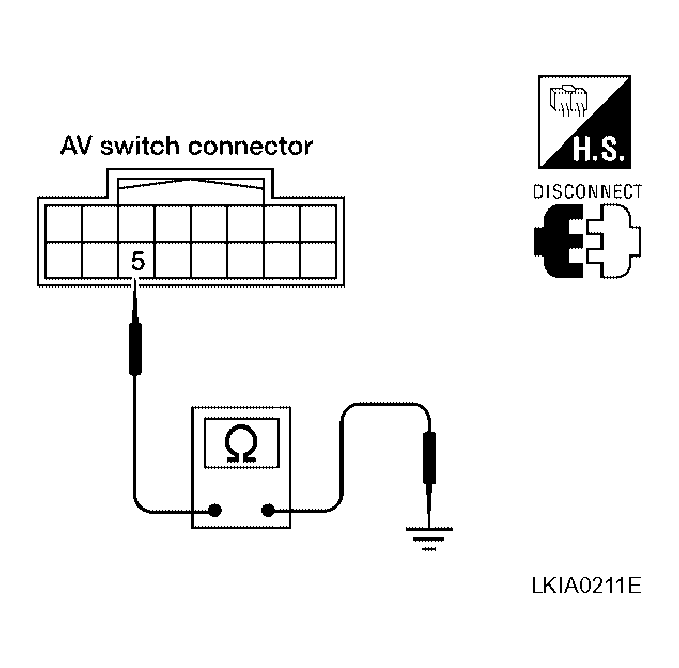

Fig 2: Checking Ground Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Inspection End.

NG: Repair ground harness.
