Mid Level System

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG-POWER references, see SYSTEM WIRING DIAGRAMS .

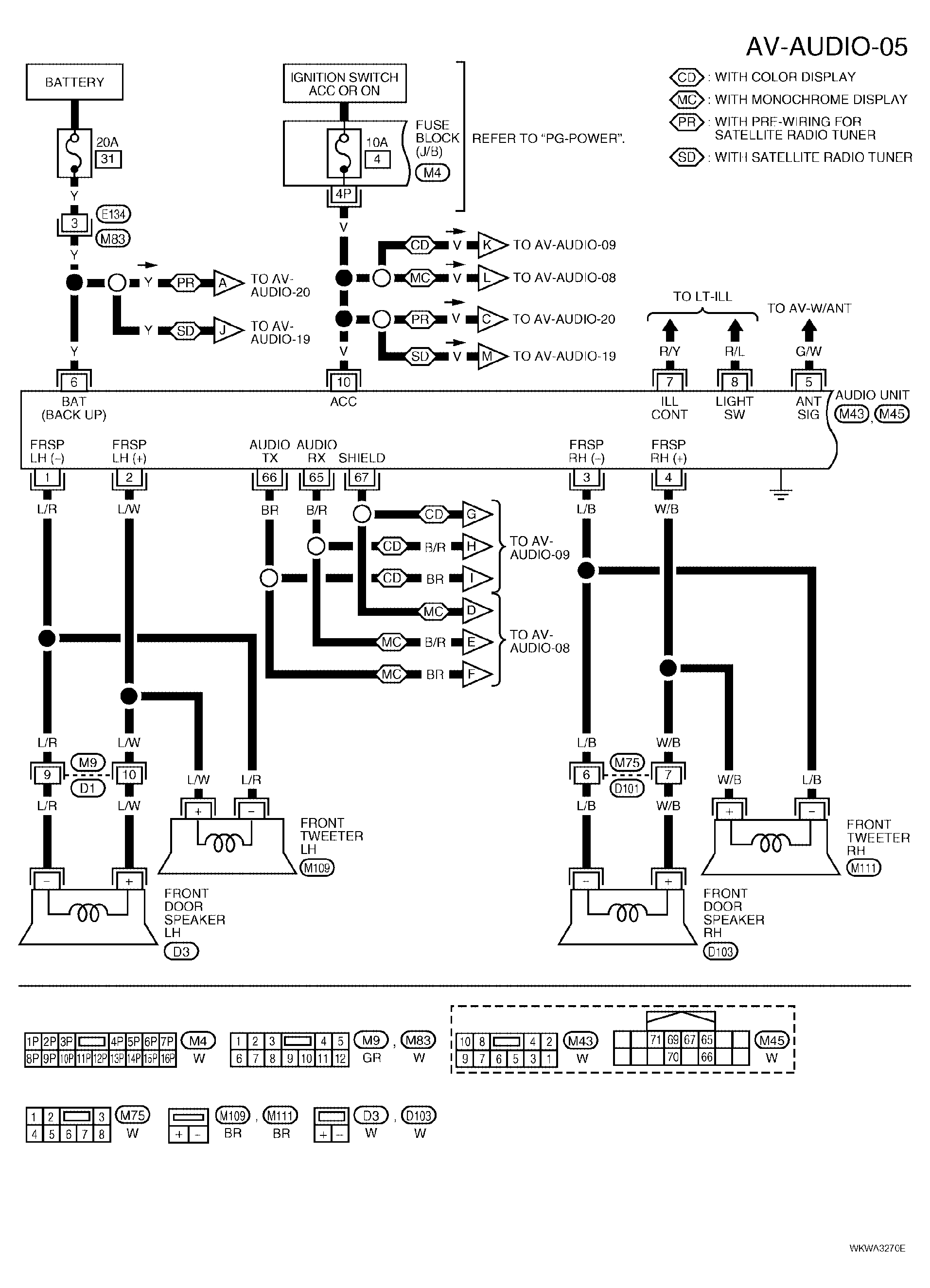

Fig 1: AV-AUDIO-05 - Wiring Diagram

G04201434

Courtesy of NISSAN MOTOR CO., U.S.A.

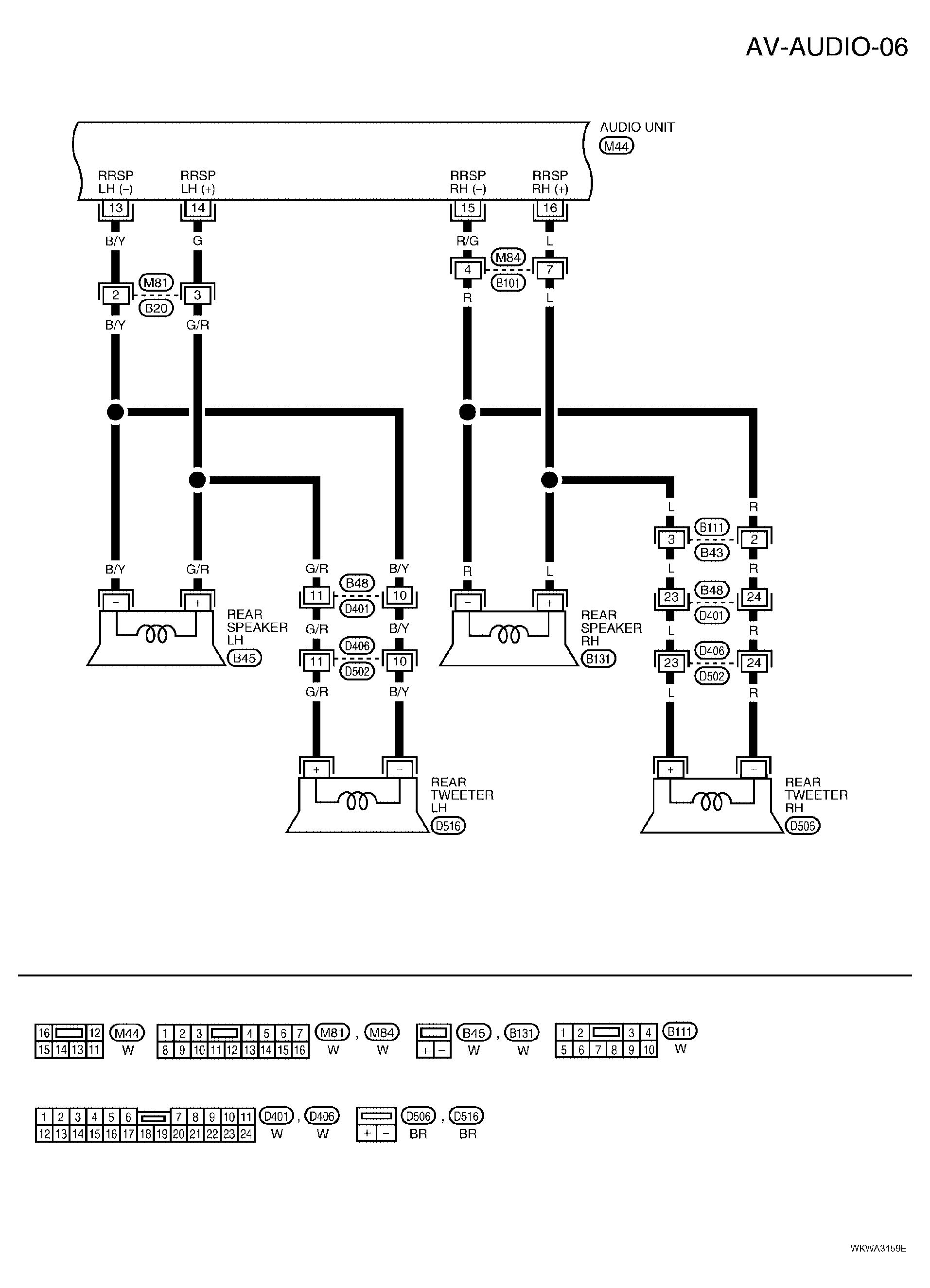

Fig 2: AV-AUDIO-06 - Wiring Diagram

G04201435

Courtesy of NISSAN MOTOR CO., U.S.A.

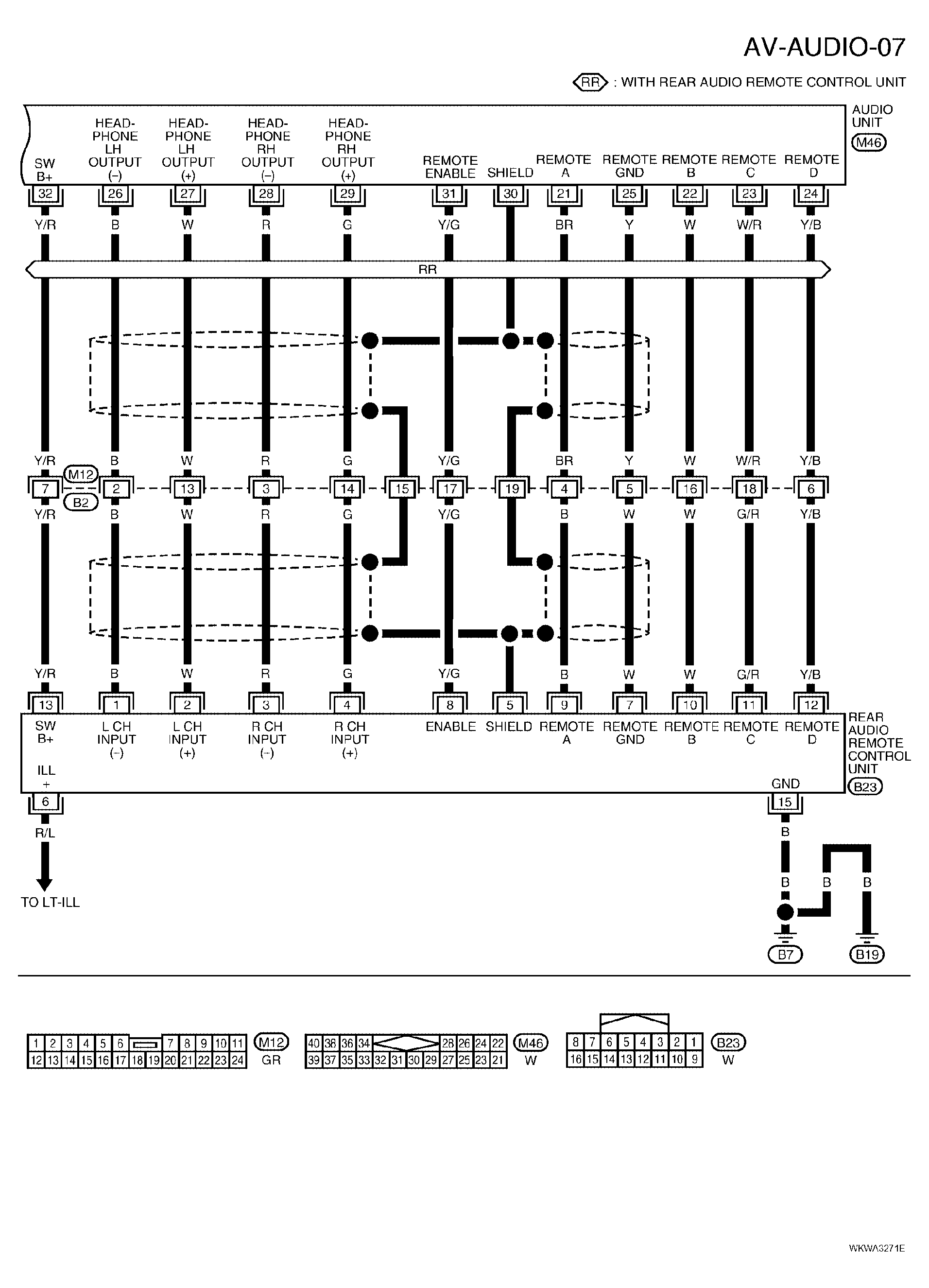

Fig 3: AV-AUDIO-07 - Wiring Diagram

G04201436

Courtesy of NISSAN MOTOR CO., U.S.A.

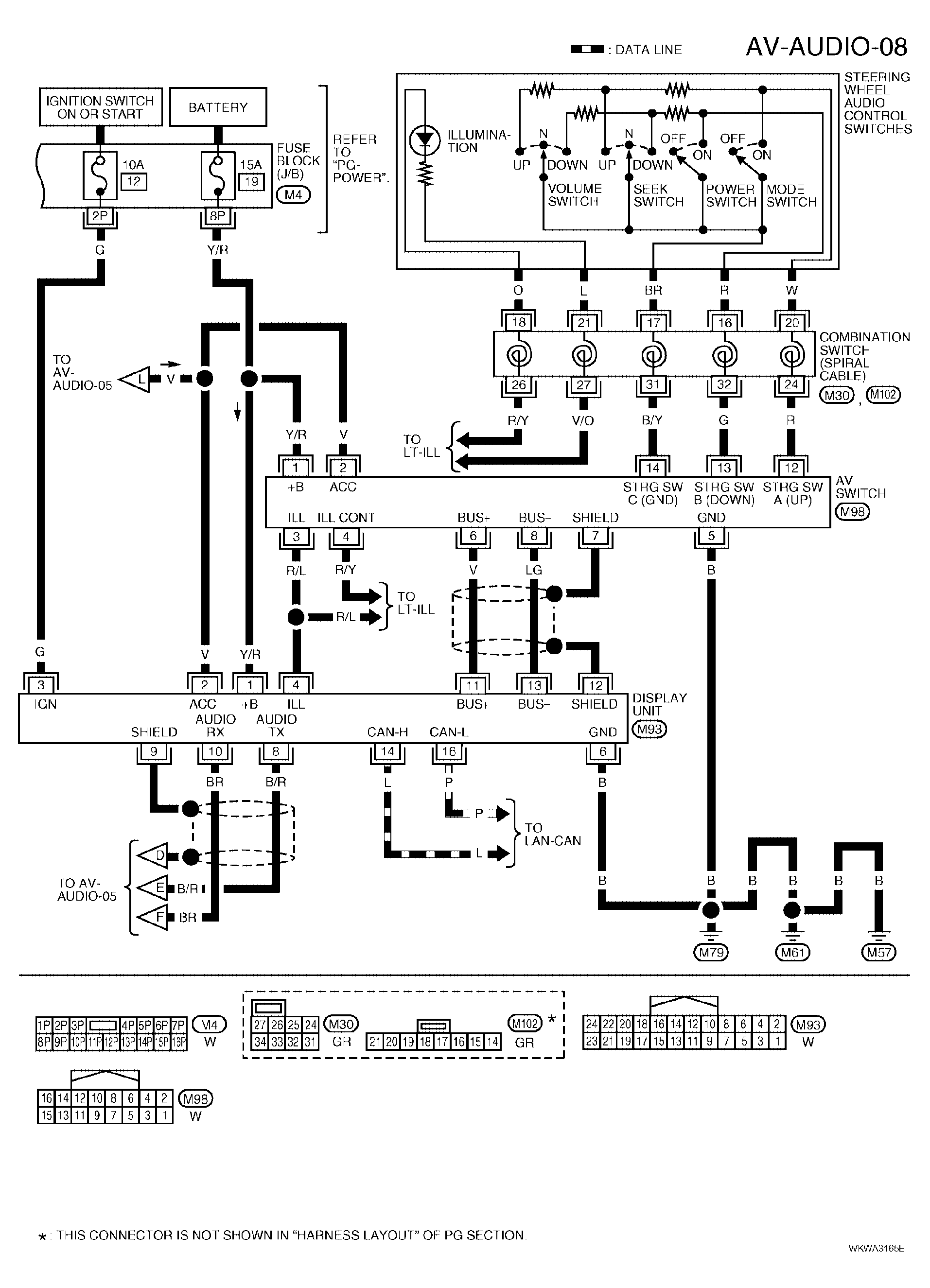

Fig 4: AV-AUDIO-08 - Wiring Diagram

G04201437

Courtesy of NISSAN MOTOR CO., U.S.A.

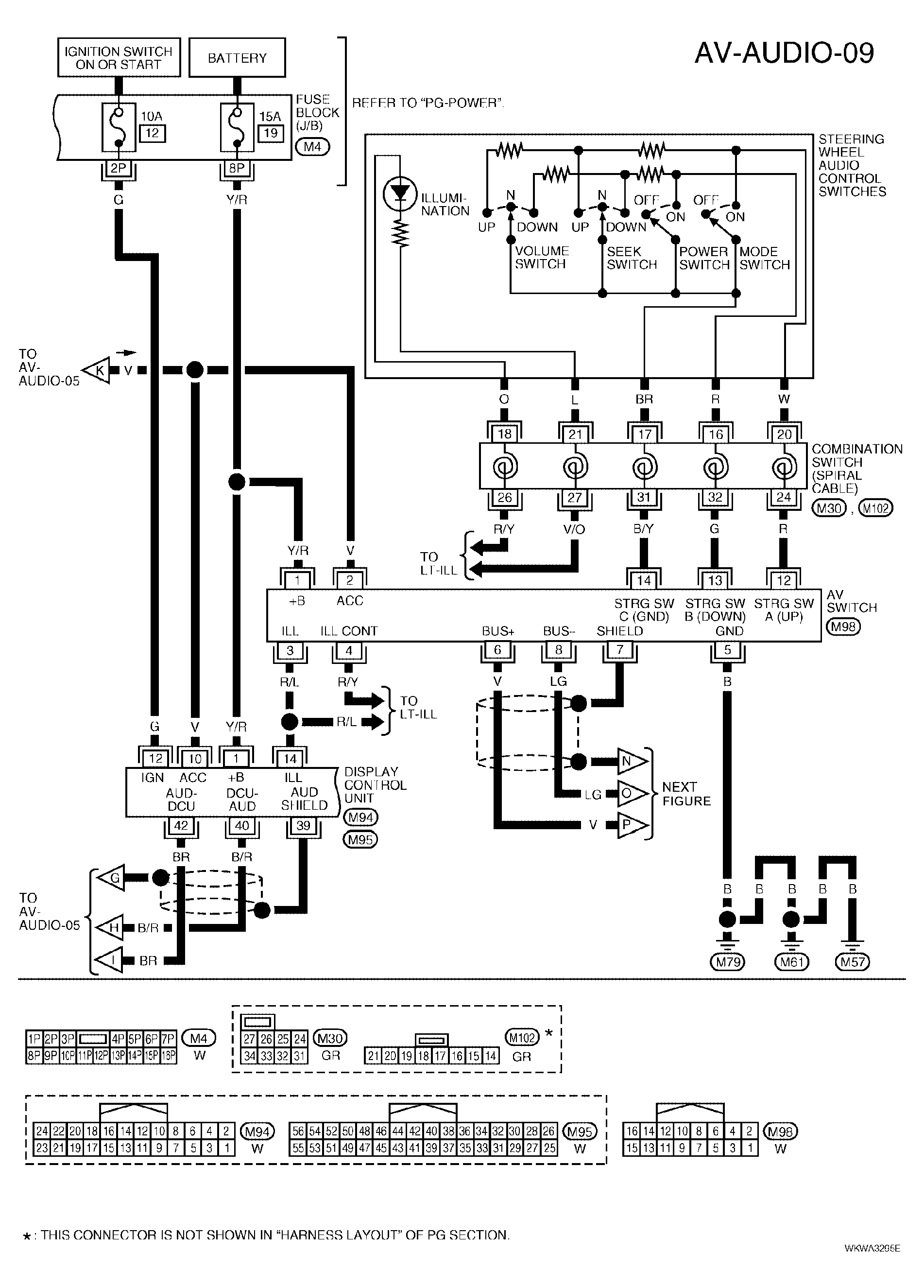

Fig 5: AV-AUDIO-09 - Wiring Diagram

G04201438

Courtesy of NISSAN MOTOR CO., U.S.A.

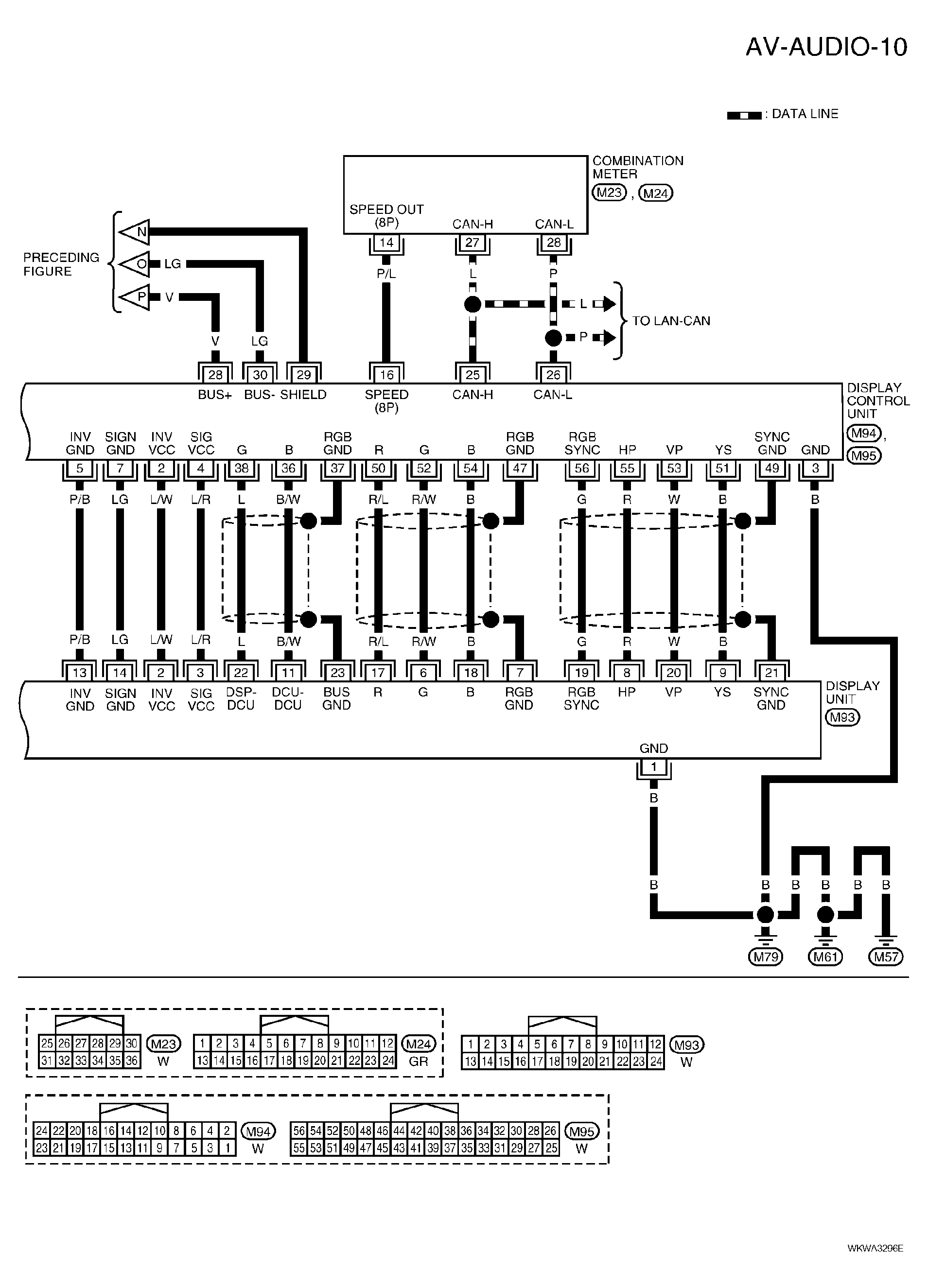

Fig 6: AV-AUDIO-10 - Wiring Diagram

G04201439

Courtesy of NISSAN MOTOR CO., U.S.A.
