Power Supply Circuit Inspection

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUSES

    Check that the following fuses are not blown.

    FUSES REFERENCE CHART

    Unit Terminals Signal name Fuse No.
    Audio unit 6 Battery power 31
    10 Ignition switch ACC or ON 4
    AV switch 1 Battery power 19
    BOSE speaker amp. (with BOSE) 1 Battery power 31
    Subwoofer (BOSE system) 6 Battery power 18

    OK or NG

    OK: GO TO 2.

    NG: If fuse is blown, be sure to eliminate cause of problem before installing new fuse. Refer to , "POWER SUPPLY ROUTING CIRCUIT ".

  2. POWER SUPPLY CIRCUIT CHECK
    1. Disconnect audio unit, subwoofer (with BOSE) or BOSE speaker amp. (with BOSE) connector.
    2. Check voltage between the audio unit and ground.
      AUDIO UNIT AND GROUND

      Unit Terminal No. OFF ACC ON
      (+) (-)
      Connector Terminal
      Audio unit M43 6 Ground Battery voltage Battery voltage Battery voltage
      10 Ground 0V Battery voltage Battery voltage

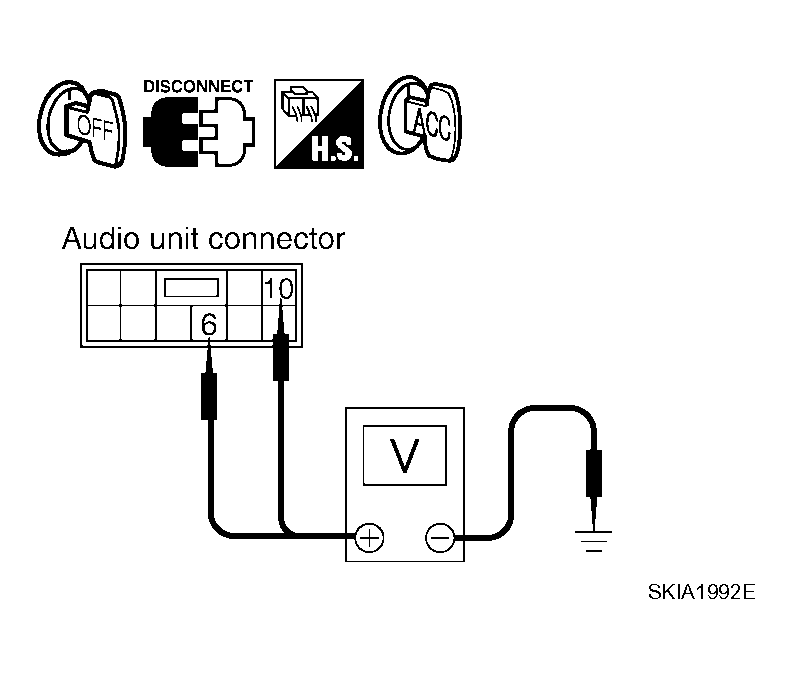

      Fig 1: Checking Voltage Between Audio Unit And Ground
      G04201491Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between subwoofer (BOSE system) and ground.
      SUBWOOFER (BOSE SYSTEM) AND GROUND

      Unit Terminal No. OFF ACC ON
      (+) (-)
      Connector Terminal
      Subwoofer B11 6 Ground Battery voltage Battery voltage Battery voltage

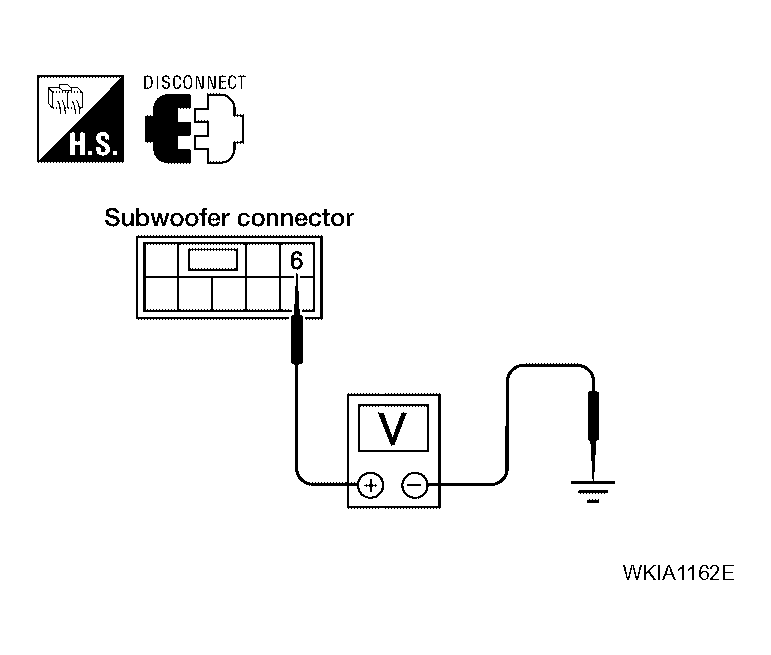

      Fig 2: Checking Voltage Between Subwoofer (Bose System) And Ground
      G04201492Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between BOSE speaker amp. (with BOSE) and ground.
      BOSE SPEAKER AMP. (WITH BOSE) AND GROUND

      Unit Terminal No. OFF ACC ON
      (+) (-)
      Connector Terminal
      BOSE speaker amp. M113 1 Ground Battery voltage Battery voltage Battery voltage

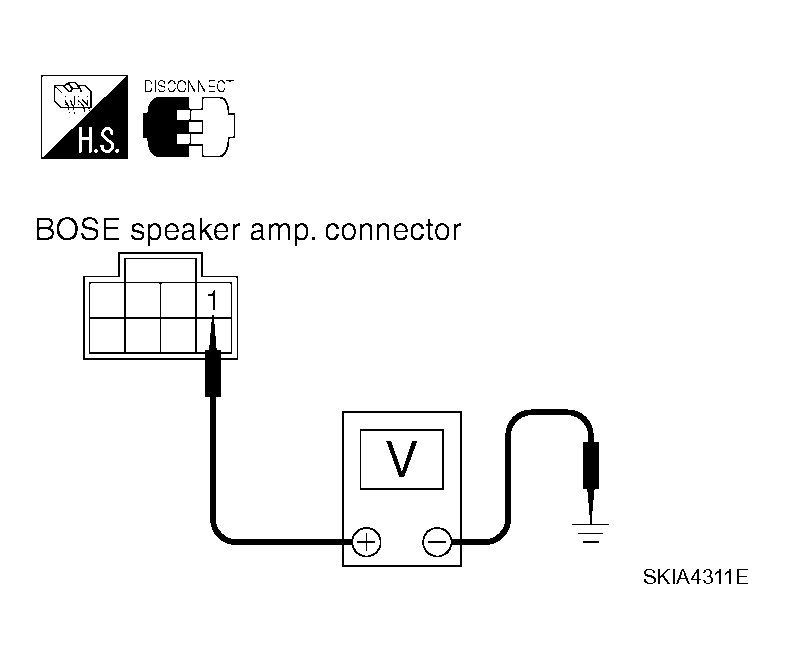

      Fig 3: Checking Voltage Between Bose Speaker Amp (With Bose) And Ground
      G04201493Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 3.

    NG :

    • Check connector housings for disconnected or loose terminals.
    • Repair harness or connector.
  3. GROUND CIRCUIT CHECK
    1. Turn ignition switch OFF.
    2. Check continuity between subwoofer (BOSE system) harness connector B11 terminal 5 and BOSE speaker amp. (with BOSE) harness connector M113 terminal 17 and ground.

      Continuity should exist.

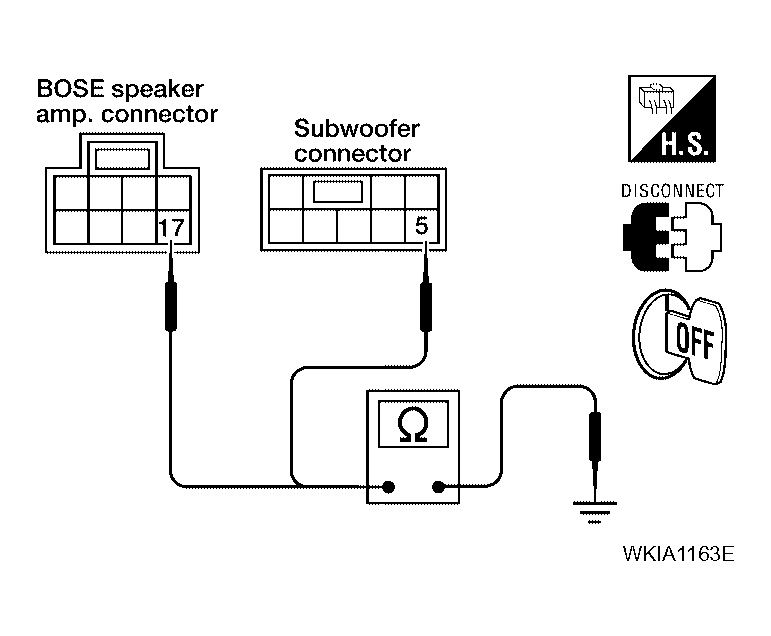

    Fig 4: Checking Continuity Between Subwoofer (BOSE System) And BOSE Speaker Amp. (With BOSE)
    G04201494Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Inspection End.

    NG :

    • Check connector housings for disconnected or loose terminals.
    • Repair harness or connector.
