With Right And Left Hand Automatic Sliding Door System And Automatic Back Door System

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

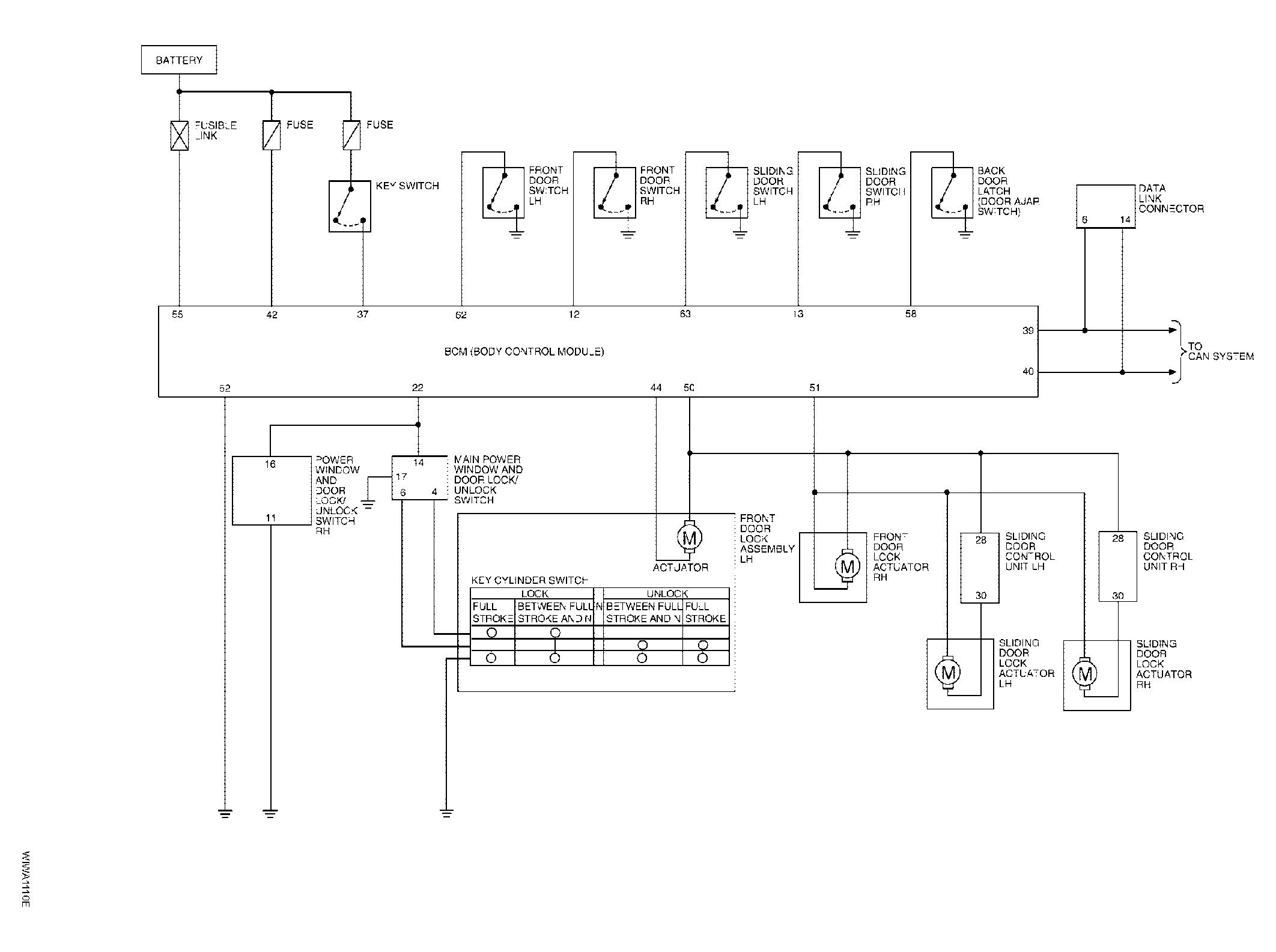

Fig 1: Power Door Lock System - Schematic Diagram (With Right And Left Hand Automatic Sliding Door System)
G04199207Courtesy of NISSAN MOTOR CO., U.S.A.
