Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install the inner tie-rods.
Install the outer tie-rods to the specified length and tighten the outer tie-rod lock nut. Refer to "STEERING GEAR AND LINKAGE ".
Use Genuine High Temperature, High Strength Thread Locking Sealant (Red) or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

Outer tie-rod lock nut: 41.5 N.m (4.2 kg-m, 31 ft-lb)

Fig 1: Measuring Length Of Inner And Outer Tie Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure rack stroke. Refer to "STEERING GEAR AND LINKAGE ".

Fig 2: Measuring Rack Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.
Before installing the dust boot, coat the contact surfaces between the boot and the inner tie-rod with grease.

Fig 3: Identifying Contact Surfaces Between The Boot And The Inner Tie-Rod To Be Coated With Grease
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the boot clamps and boot bands securely.

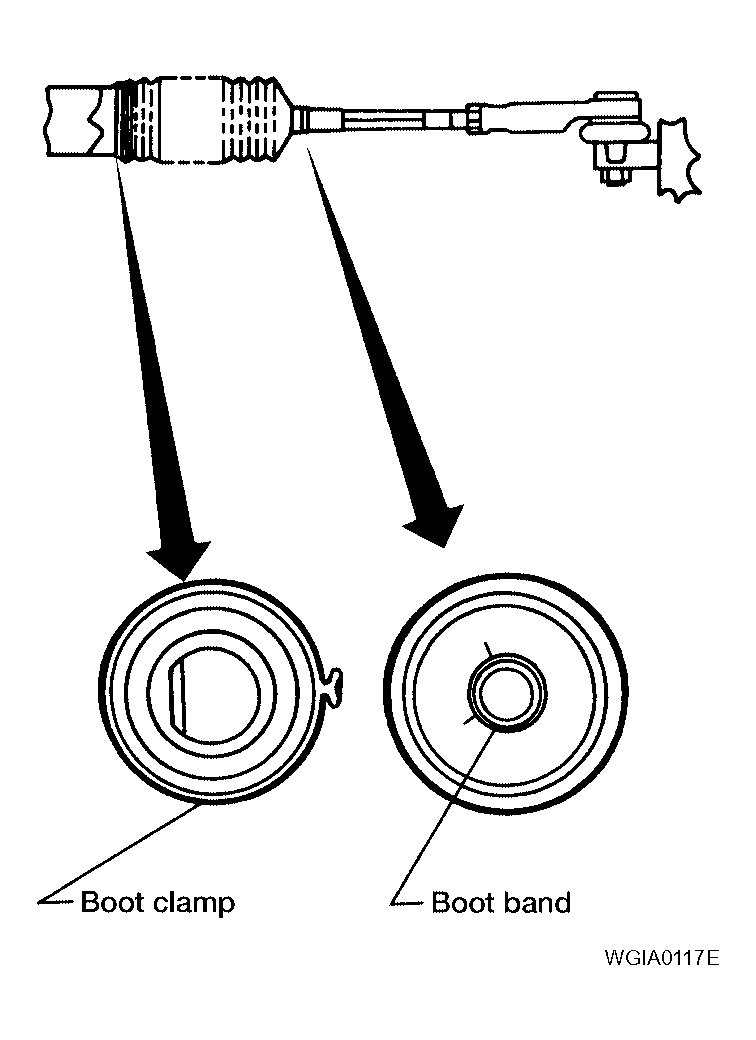

Fig 4: Installing Boot Clamps And Boot Bands
Courtesy of NISSAN MOTOR CO., U.S.A.
