Mainshaft Assembly

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install needle bearing to mainshaft.
  2. Install sprocket and electric controlled coupling to mainshaft.
  3. Install spacer to main shaft.
    Fig 1: Identifying Needle Bearing To Mainshaft
    G04121289Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install snap ring to mainshaft.
  5. Install mainshaft assembly to rear case, then install front case and rear case. Refer to "FRONT CASE AND REAR CASE ".

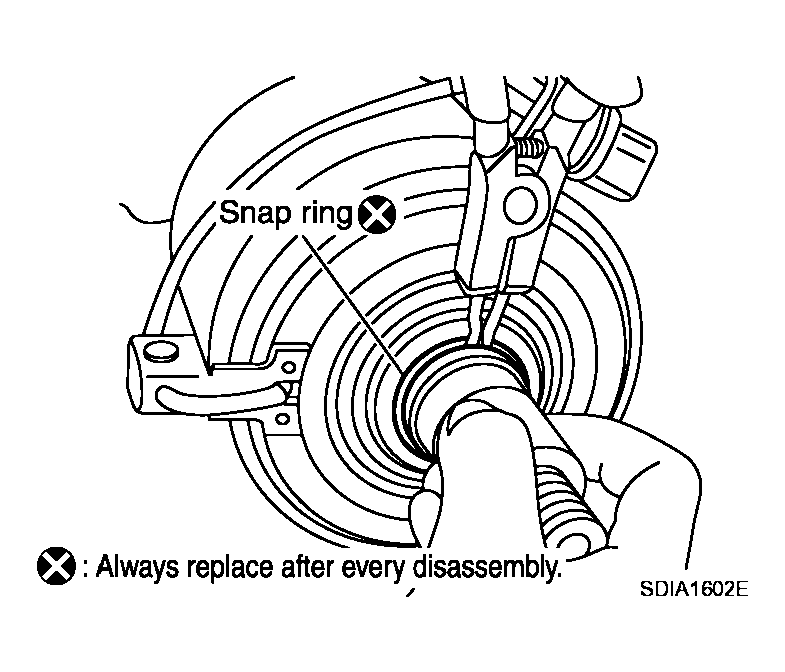

    Fig 2: Identifying Snap Ring To Mainshaft
    G04121290Courtesy of NISSAN MOTOR CO., U.S.A.
