Compass Display "- - -"

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FAIL-SAFE MODE

    Make sure that fail-safe mode is not activated. Refer to "Fail-safe Function ".

    Is fail-safe mode activated?

    YES: GO TO 3.

    NO: GO TO 2.

  2. CHECK DISPLAY AND A/C AUTO AMP. SELF-DIAGNOSIS

    Check display and A/C auto amp. self-diagnosis. Refer to "FUNCTION CONFIRMATION PROCEDURE ".

    Are all segments of display and A/C auto amp. displayed?

    YES: INSPECTION END

    NO: Replace display and A/C auto amp.

  3. CHECK POWER AND GROUND CIRCUIT

    Check power and ground circuit. Refer to "POWER SUPPLY AND GROUND CIRCUIT INSPECTION ".

    OK or NG

    OK: GO TO 4.

    NG: Repair malfunctioning part.

  4. CHECK COMPASS CIRCUIT
    1. Disconnect compass connector and display and A/C auto amp. connector.
    2. Check continuity between compass harness connector M81 terminal 2 (L) and display and A/C auto amp. harness connector M31 terminal 6 (L).

      2 (L) - 6 (L): Continuity should exist  .

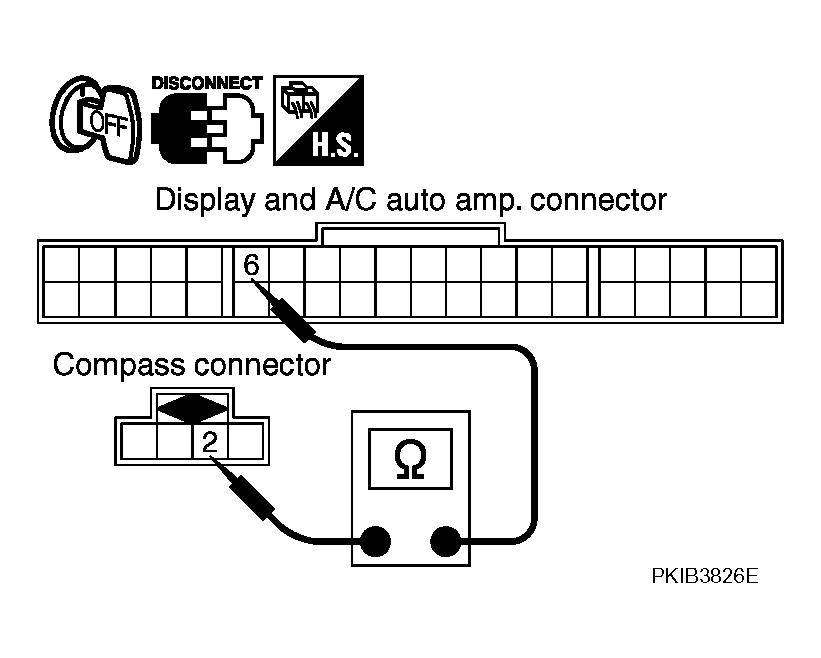

      Fig 1: Identifying Continuity Between Compass Connector M81 Terminal 2 (L) And Display And A/C Auto Amp. Connector M31 Terminal 6 (L)
      G04183482Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check continuity between compass harness connector M81 terminal 3 (R) and display and A/C auto amp. harness connector M31 terminal 7 (R).

      3 (R) - 7 (R): Continuity should exist  .

    OK or NG

    OK: GO TO 5.

    NG: Repair harness or connector.

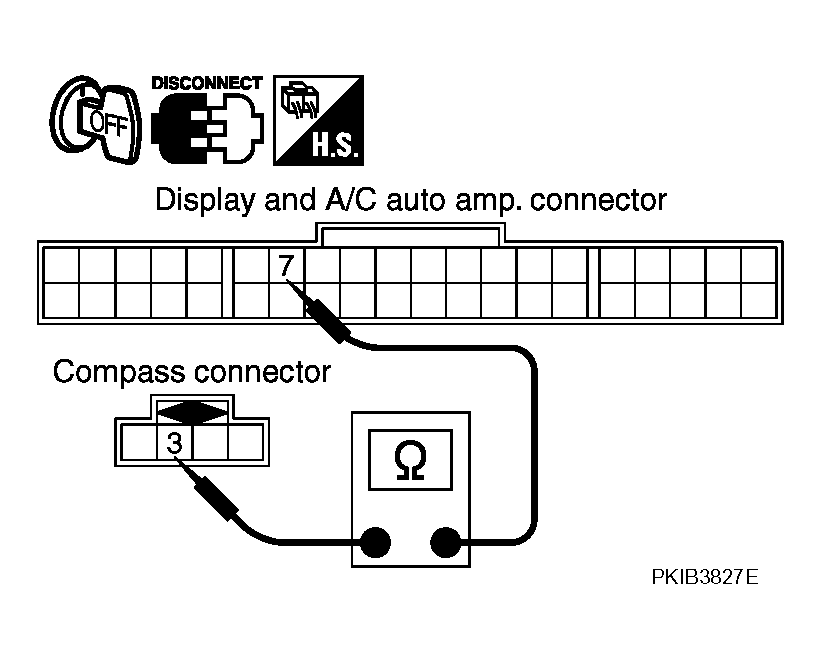

    Fig 2: Identifying Continuity Between Compass Connector M81 Terminal 3 And Display And A/C Auto Amp. Connector M31 Terminal 7
    G04183483Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK COMPASS SIGNAL
    1. Connect compass connector and display and A/C auto amp. connector.
    2. Turn ignition switch ON.
    3. Check voltage signal between compass harness connector M81 terminal 2 (L) and ground.

      2 (L) - Ground:

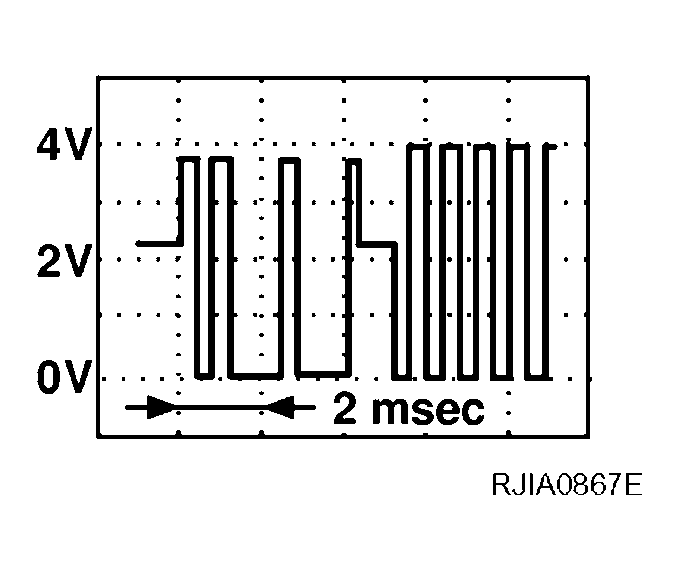

      Fig 3: Connector M81 Terminal 2 (L) And Ground - Voltage Signal Graph
      G04183484Courtesy of NISSAN MOTOR CO., U.S.A.

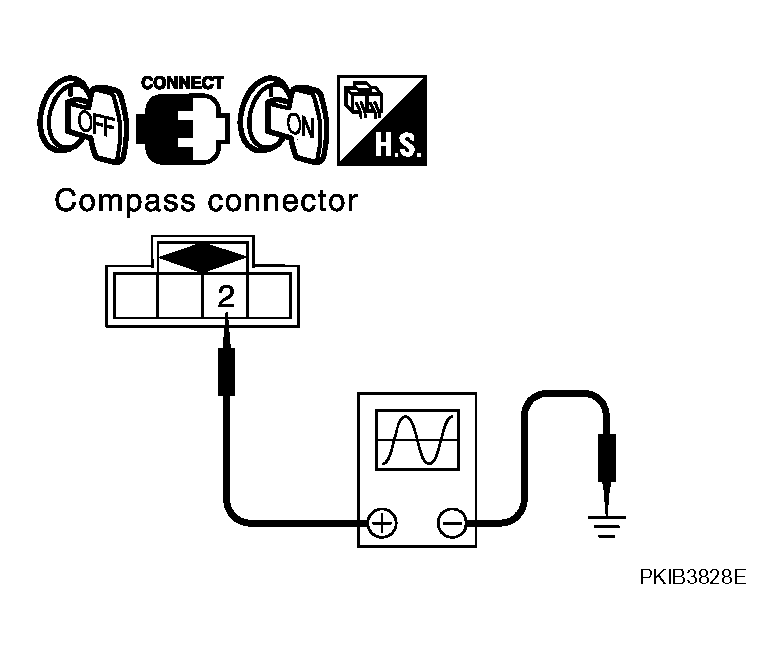

      Fig 4: Identifying Voltage Signal Between Compass Harness Connector M81 Terminal 2 (L) And Ground
      G04183485Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage signal between compass harness connector M81 terminal 3 (R) and ground.

      3 (R) - Ground:

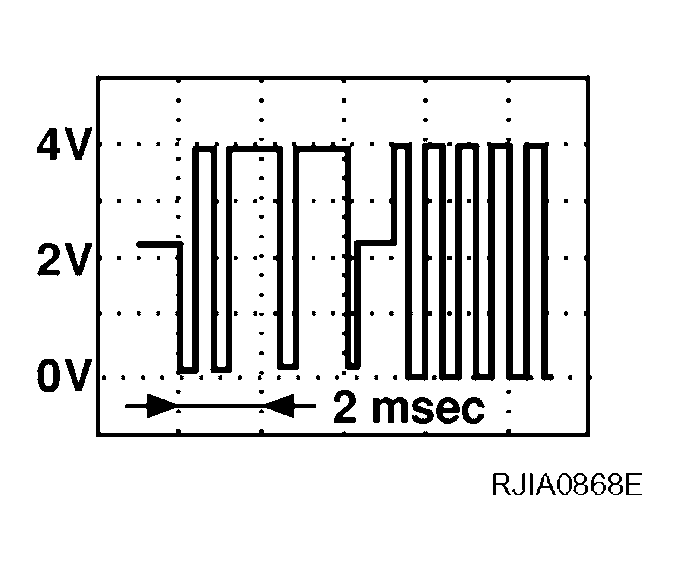

      Fig 5: Connector M81 Terminal 3 (R) And Ground - Voltage Signal Graph
      G04183486Courtesy of NISSAN MOTOR CO., U.S.A.

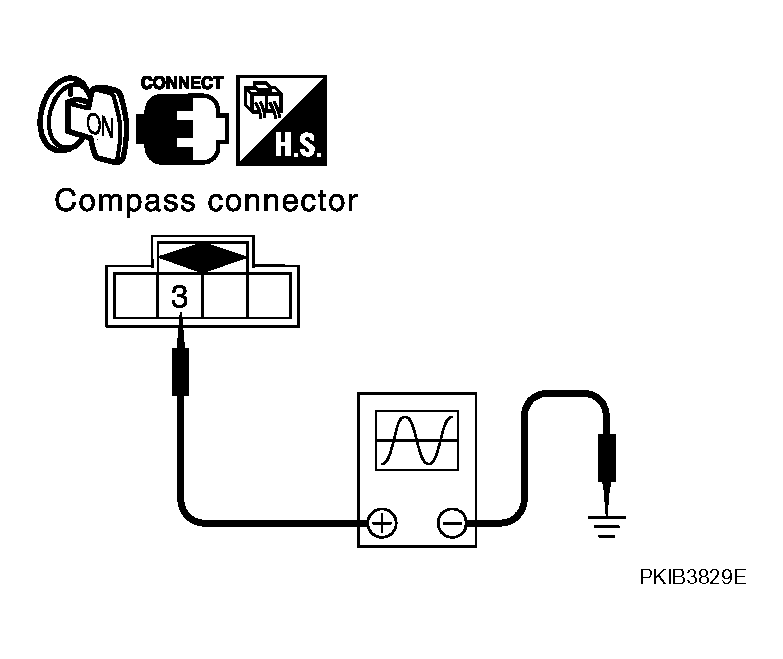

      Fig 6: Identifying Voltage Signal Between Compass Harness Connector M81 Terminal 3 (R) And Ground
      G04183487Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Replace display and A/C auto amp.

    NG: Replace compass.
