WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
Up to vehicle identification numbers JNKCV54E26M712739 and JNKCV54E26M712740.

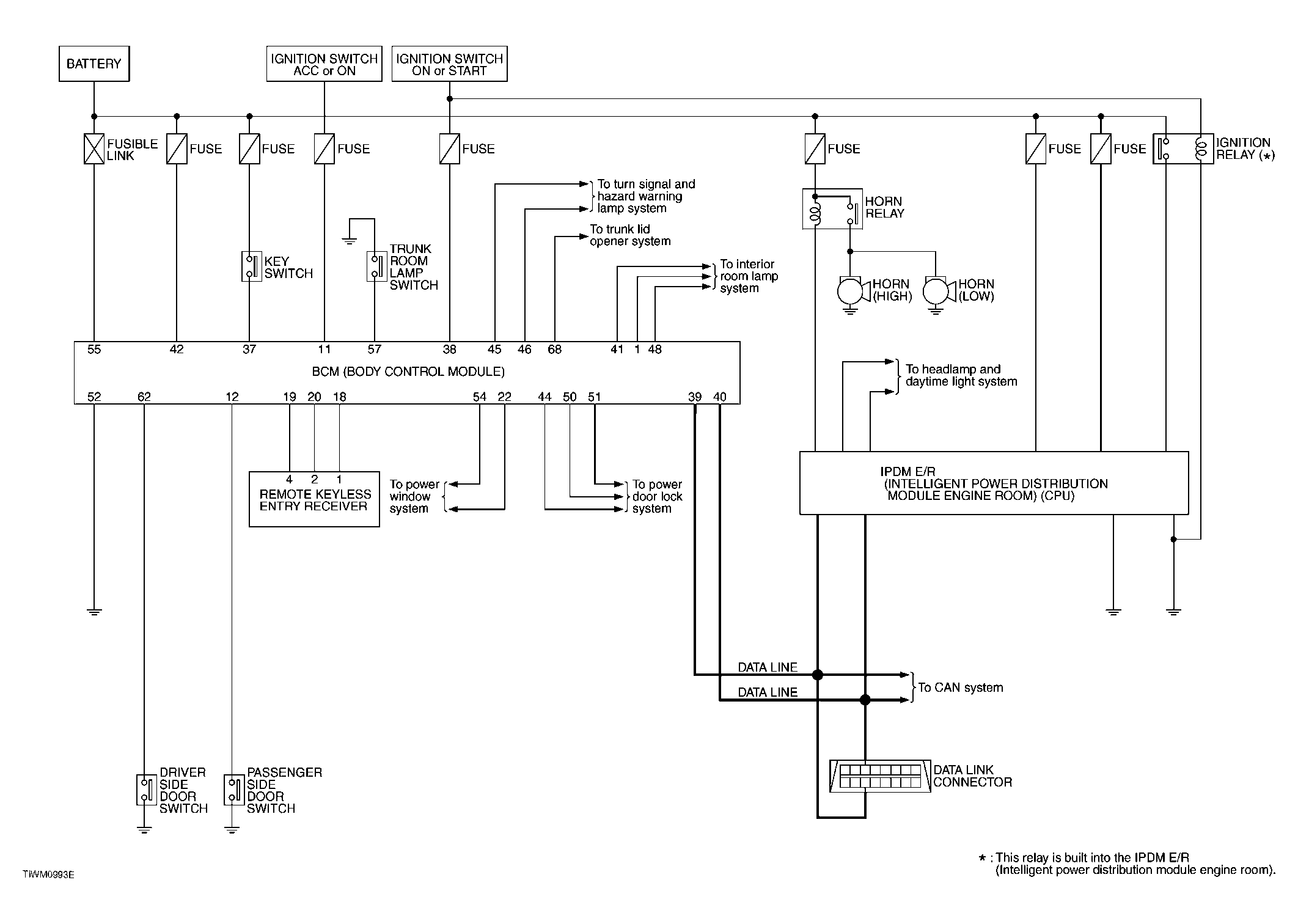

Fig 1: Remote Keyless Entry System - Schematic Diagram
