Terminals and Reference Value for Steering Lock Unit/With Intelligent Key System
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
STEERING LOCK UNIT/WITH INTELLIGENT KEY SYSTEM TERMINALS AND REFERENCE VALUE
| Terminal No. | Wire color | Signal Designation | Measuring condition | Voltage (V) (Approx.) | |
|---|---|---|---|---|---|
| Ignition knob position | Operation or conditions | ||||
| 1 | Y | Power source (Fuse) | - | - | Battery voltage |
| 2 | L/Y | Steering lock unit power supply | LOCK | - | 5 |

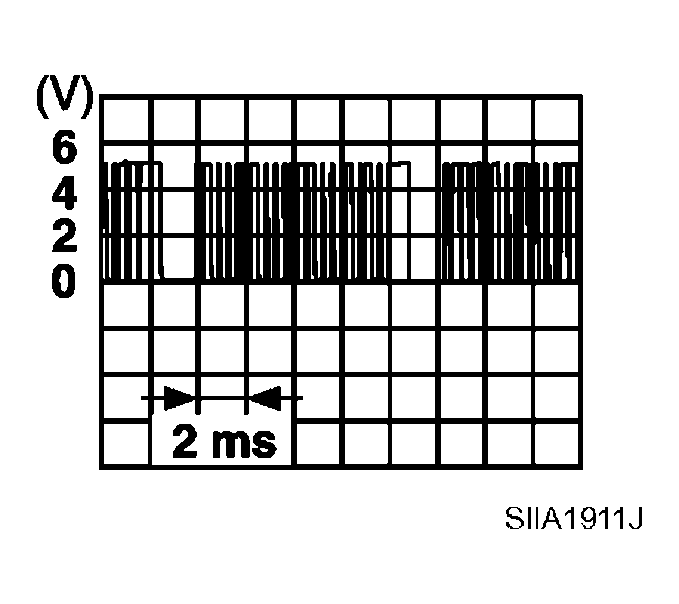

| 3 | L/OR | Steering lock unit communication signal | LOCK | Press ignition knob with Intelligent Key inside vehicle. | |
| Other than the above | 5 | ||||
| 4 | G/R | Steering lock unit ground | - | - | 0 |
