Wiring Diagram - NAVI

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG references see POWER SUPPLY, GROUND AND CIRCUIT ELEMENTS

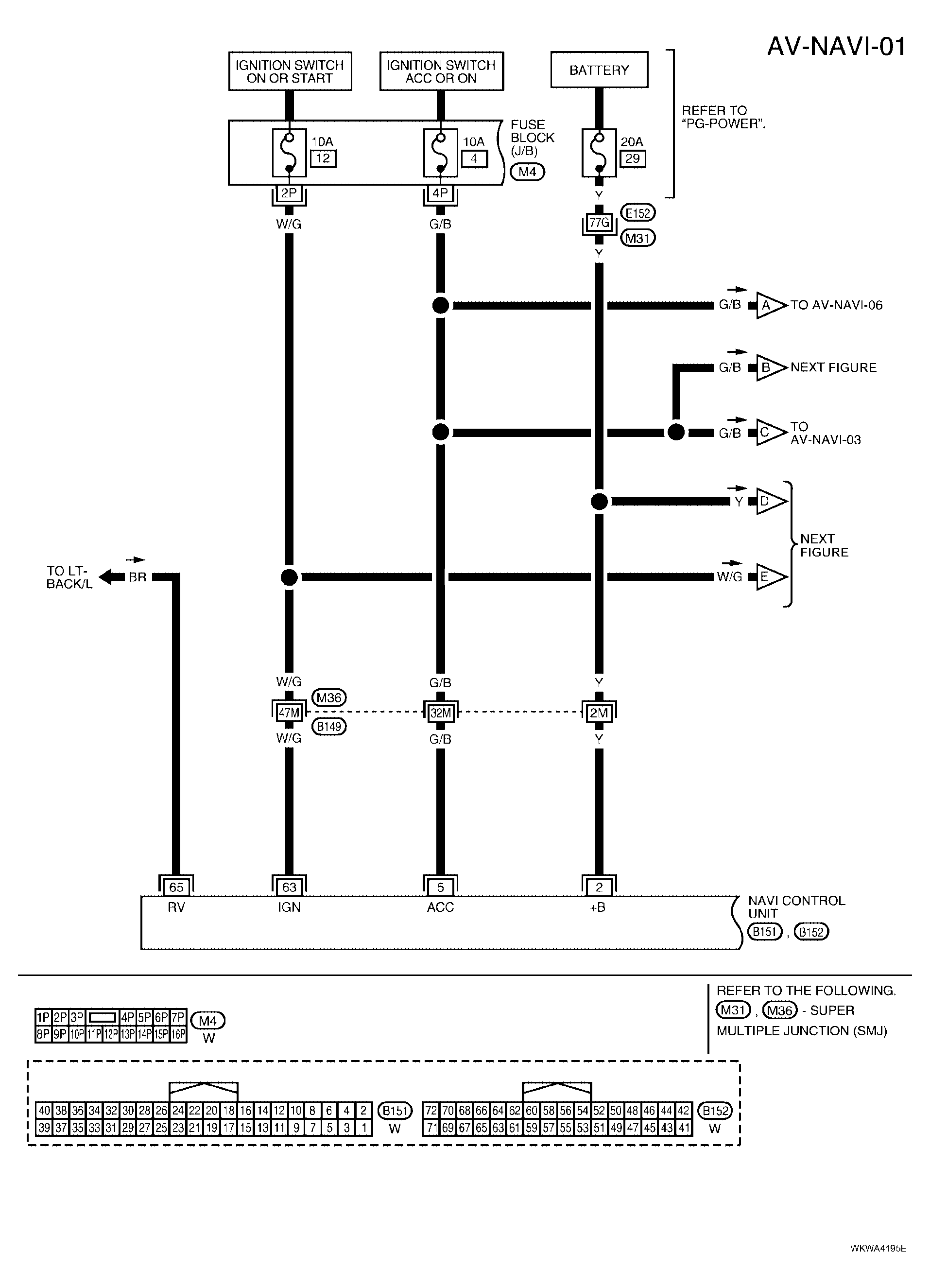

Fig 1: Wiring Diagram - AV-NAVI-01 - (1 Of 7)

G04177726

Courtesy of NISSAN MOTOR CO., U.S.A.

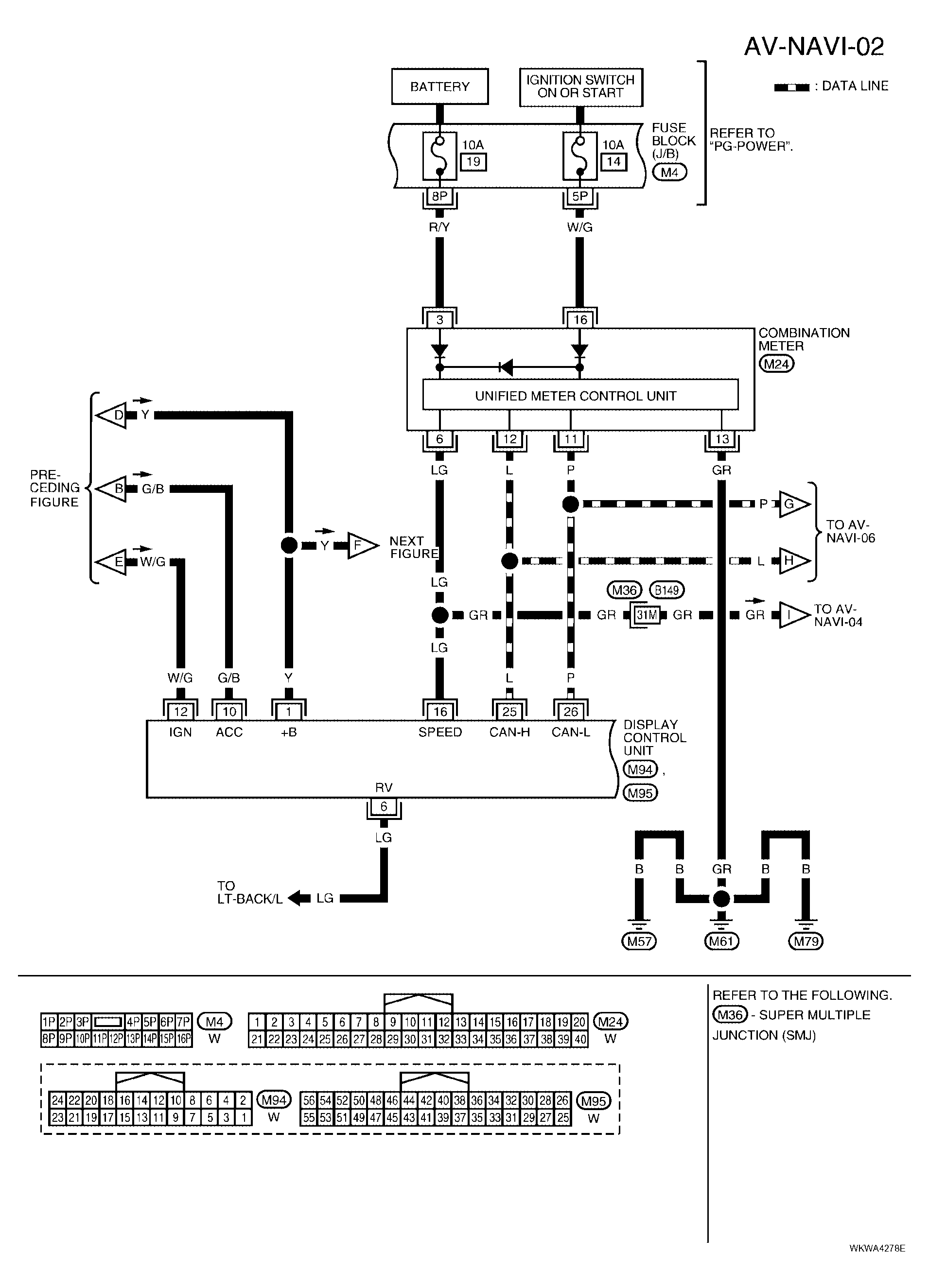

Fig 2: Wiring Diagram - AV-NAVI-02 - (2 Of 7)

G04177727

Courtesy of NISSAN MOTOR CO., U.S.A.

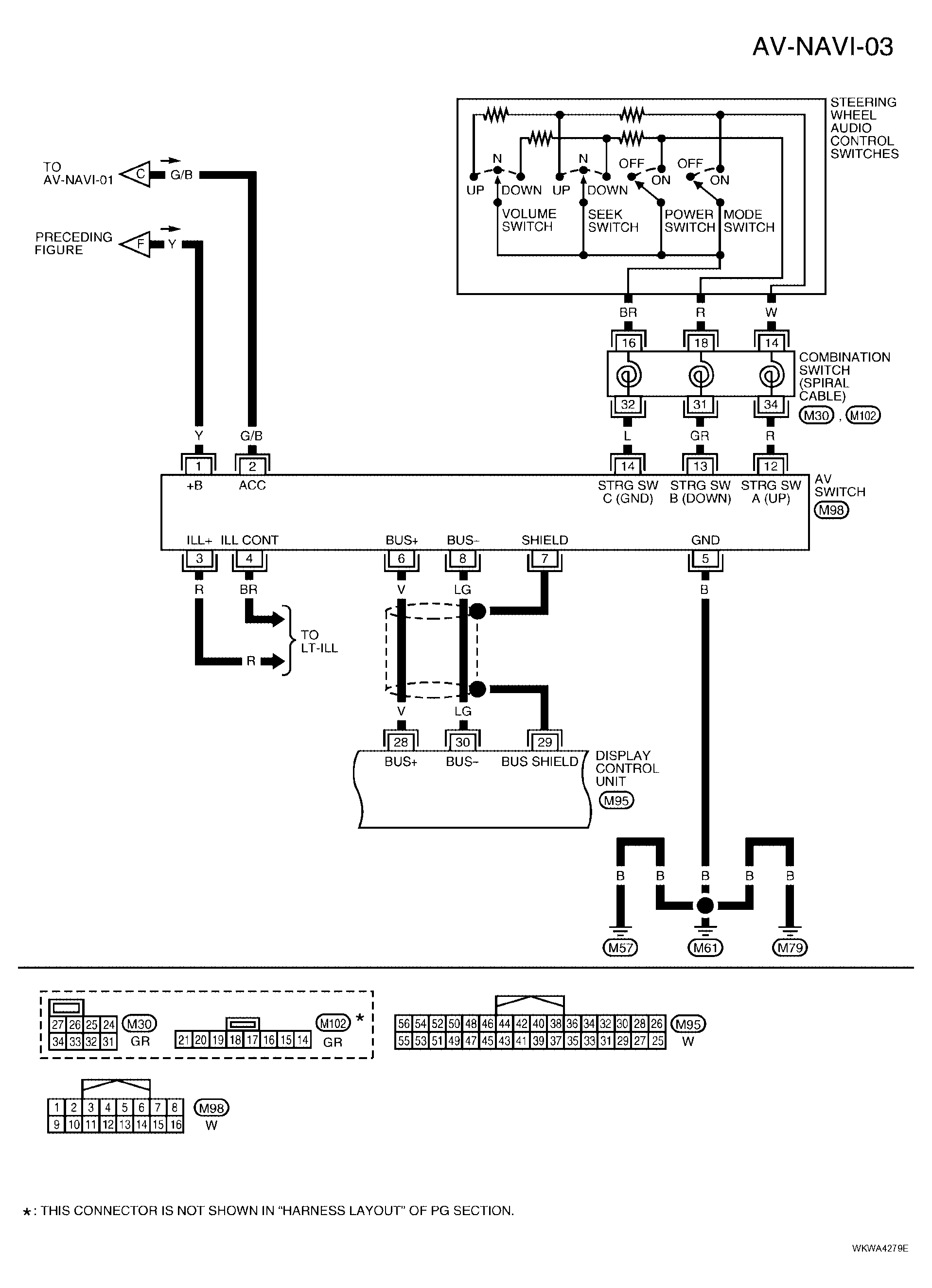

Fig 3: Wiring Diagram - AV-NAVI-03 - (3 Of 7)

G04177728

Courtesy of NISSAN MOTOR CO., U.S.A.

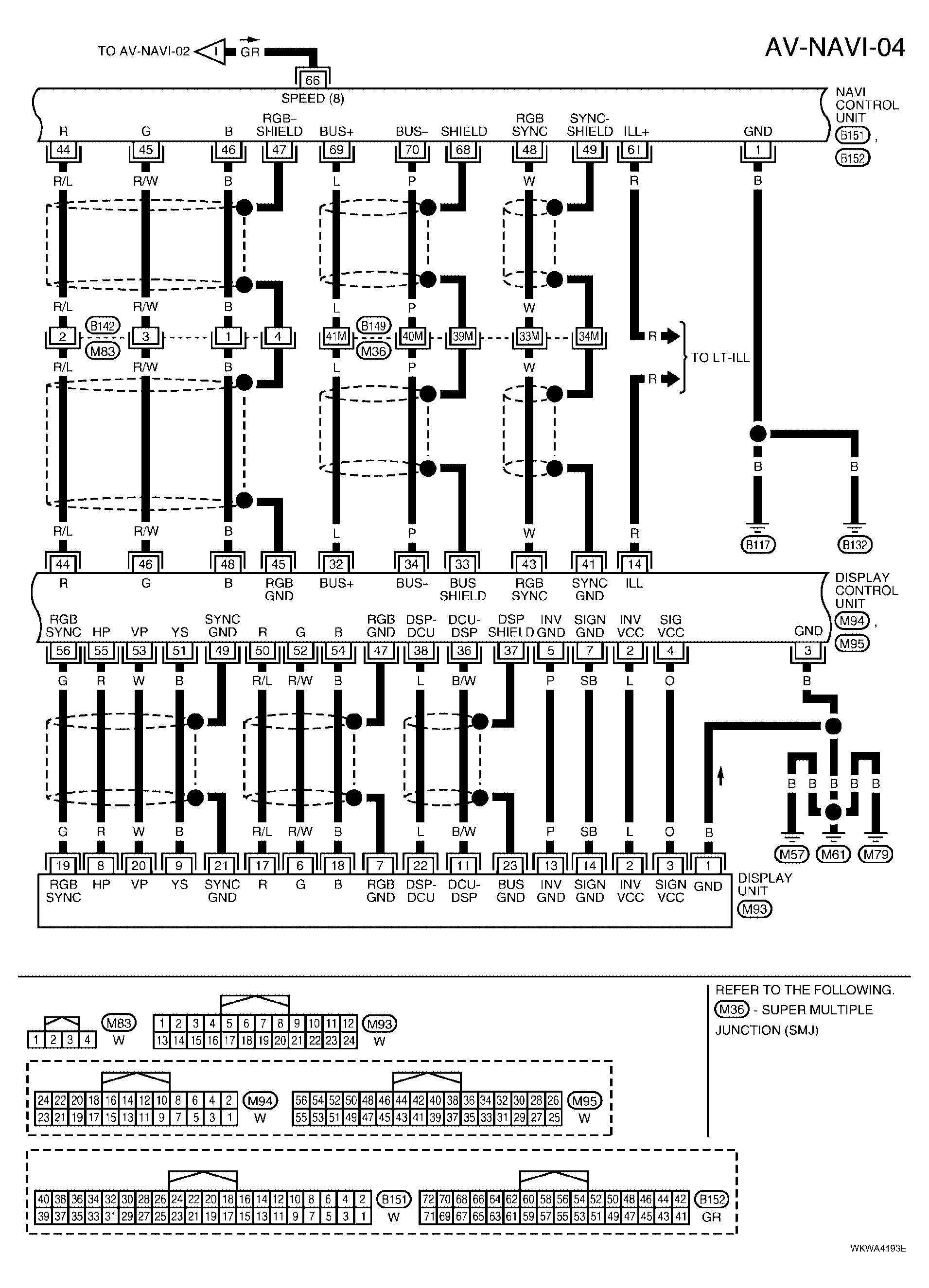

Fig 4: Wiring Diagram - AV-NAVI-04 - (4 Of 7)

G04177729

Courtesy of NISSAN MOTOR CO., U.S.A.

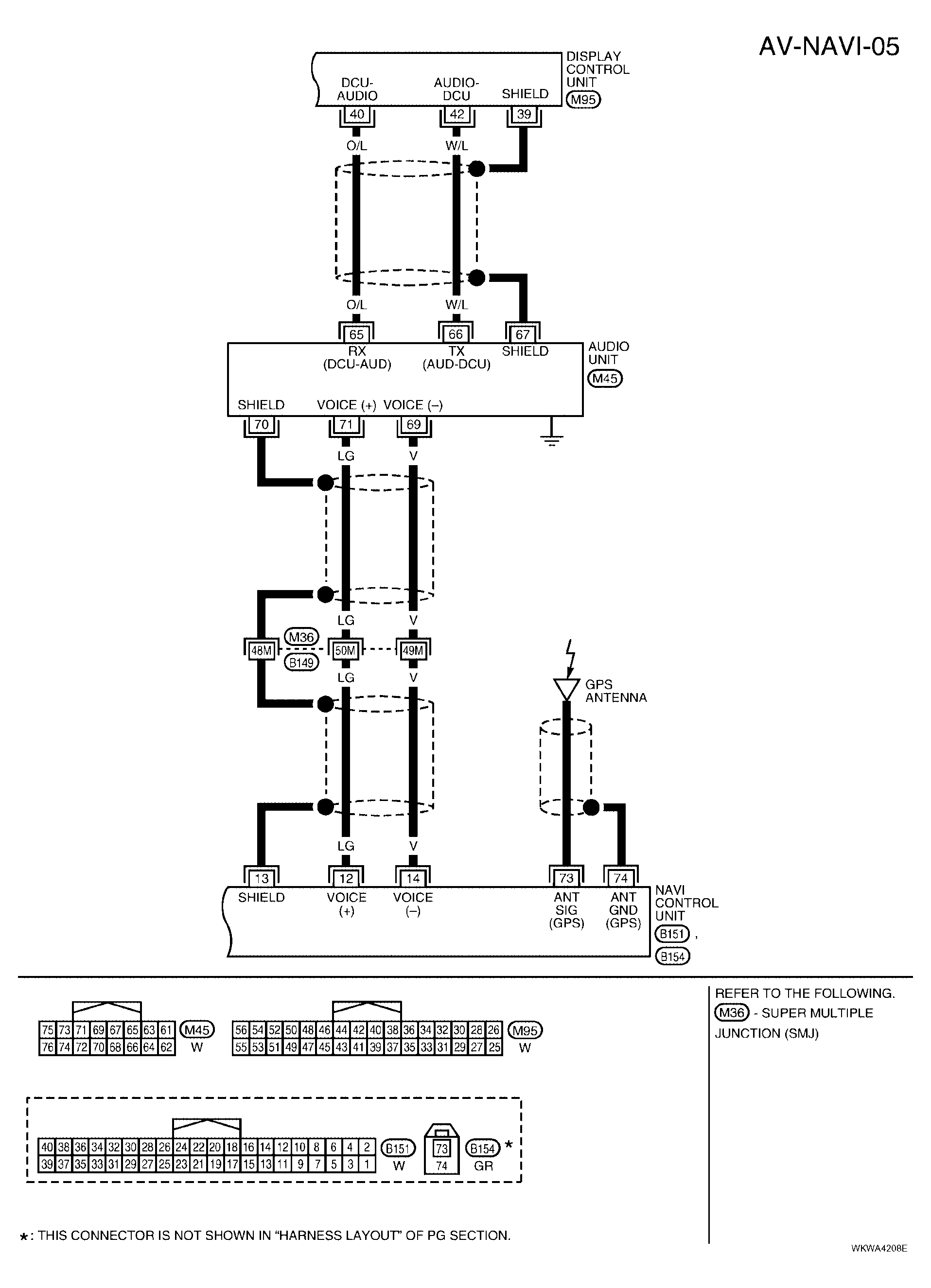

Fig 5: Wiring Diagram - AV-NAVI-05 - (5 Of 7)

G04177730

Courtesy of NISSAN MOTOR CO., U.S.A.

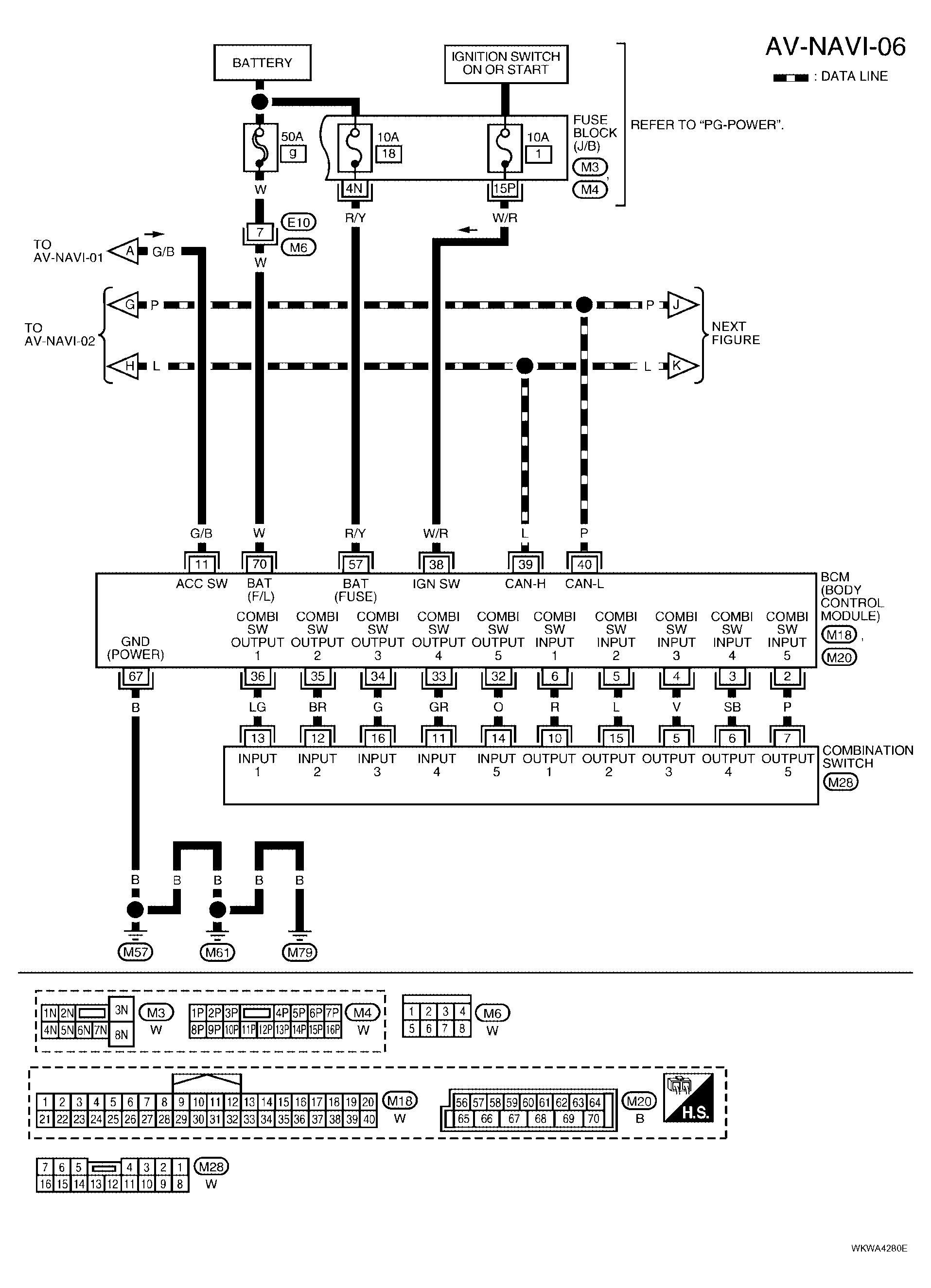

Fig 6: Wiring Diagram - AV-NAVI-06 - (6 Of 7)

G04177731

Courtesy of NISSAN MOTOR CO., U.S.A.

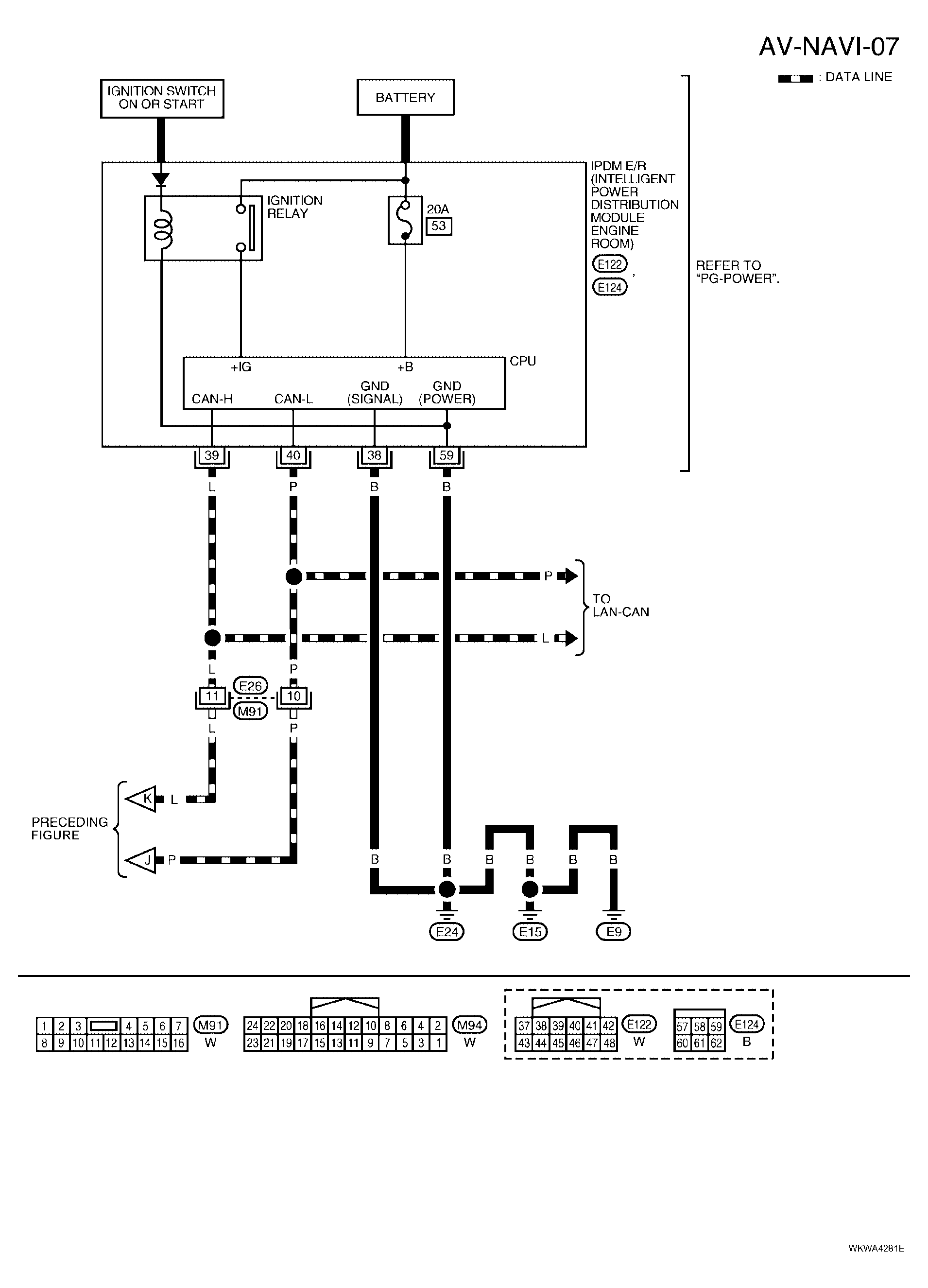

Fig 7: Wiring Diagram - AV-NAVI-07 - (7 Of 7)

G04177732

Courtesy of NISSAN MOTOR CO., U.S.A.
