BOSE System (With NAVI)

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

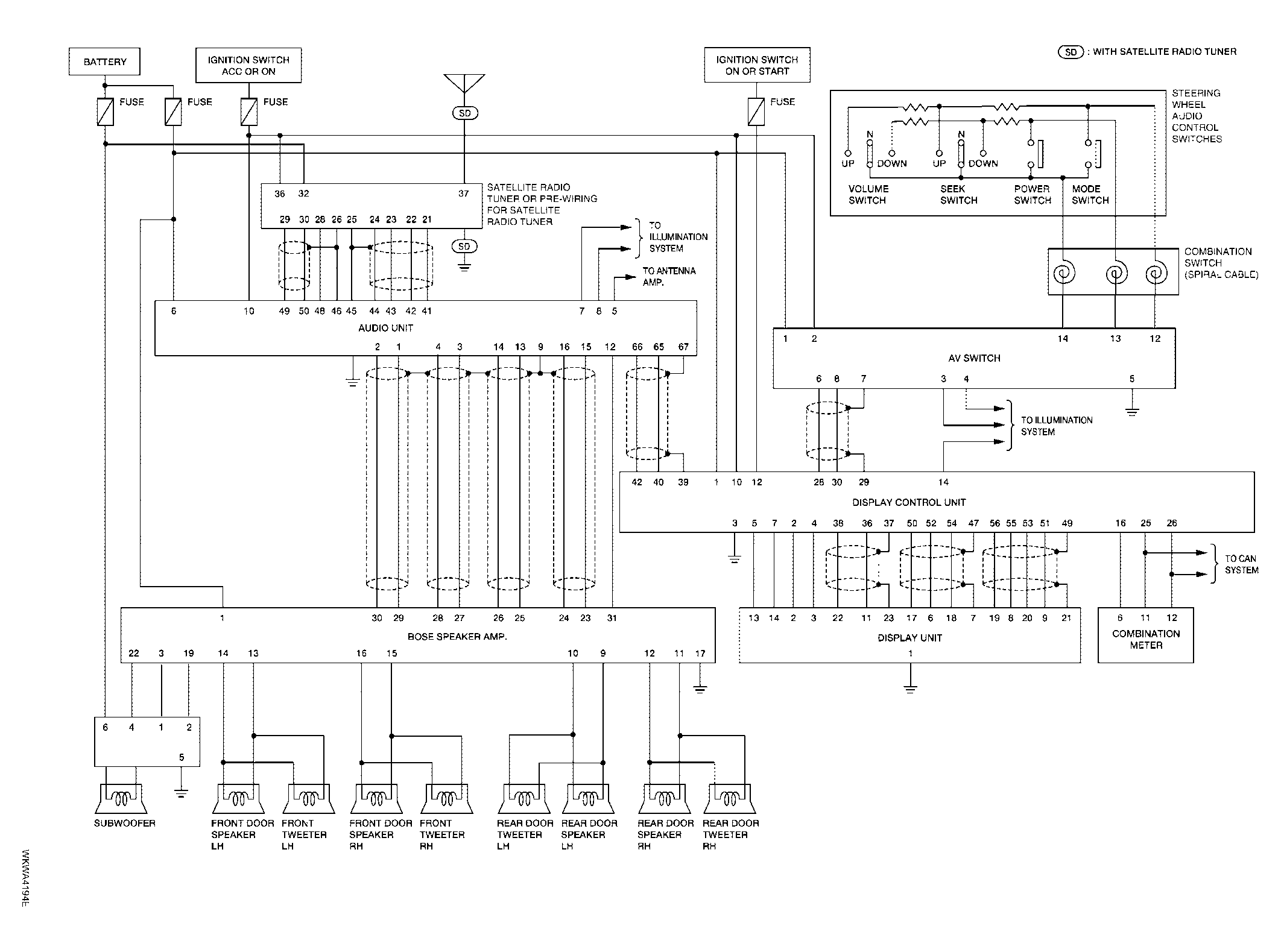

Fig 1: Schematic Diagram - Bose System (With NAVI)(2 Of 2)
G04177599Courtesy of NISSAN MOTOR CO., U.S.A.
