Satellite Radio Tuner: Notes

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative terminal.
  2. Disconnect satellite radio tuner connectors.
  3. Remove satellite radio tuner screws (A), and remove satellite radio tuner from above the parking brake pedal.

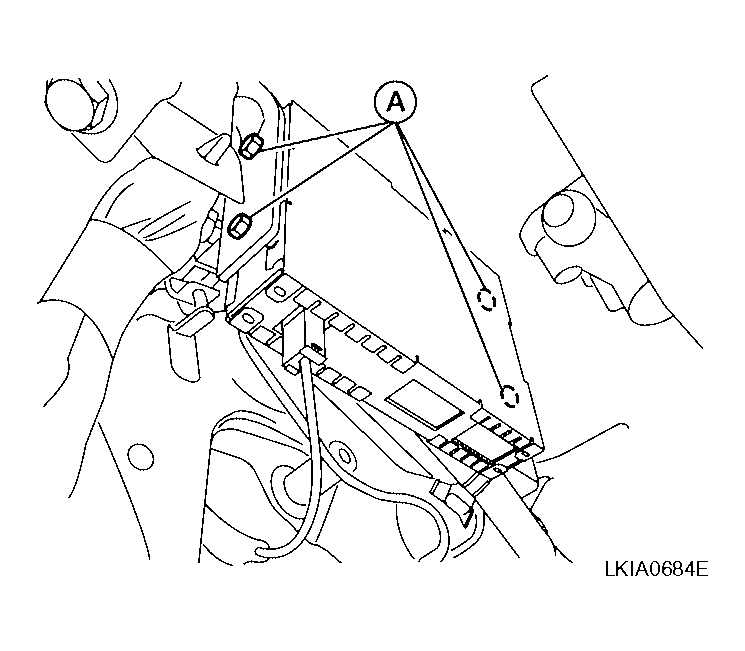

    Fig 1: Removing Satellite Radio Tuner Screws
    G04177699Courtesy of NISSAN MOTOR CO., U.S.A.
