Front Tweeter: Removal

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front tweeter grille.
  2. Remove the front tweeter screws.
    NOTE: The standard front tweeter has four screws, the optional Bose front tweeter has two screws as shown.
  3. Remove front tweeter and disconnect front tweeter connector.

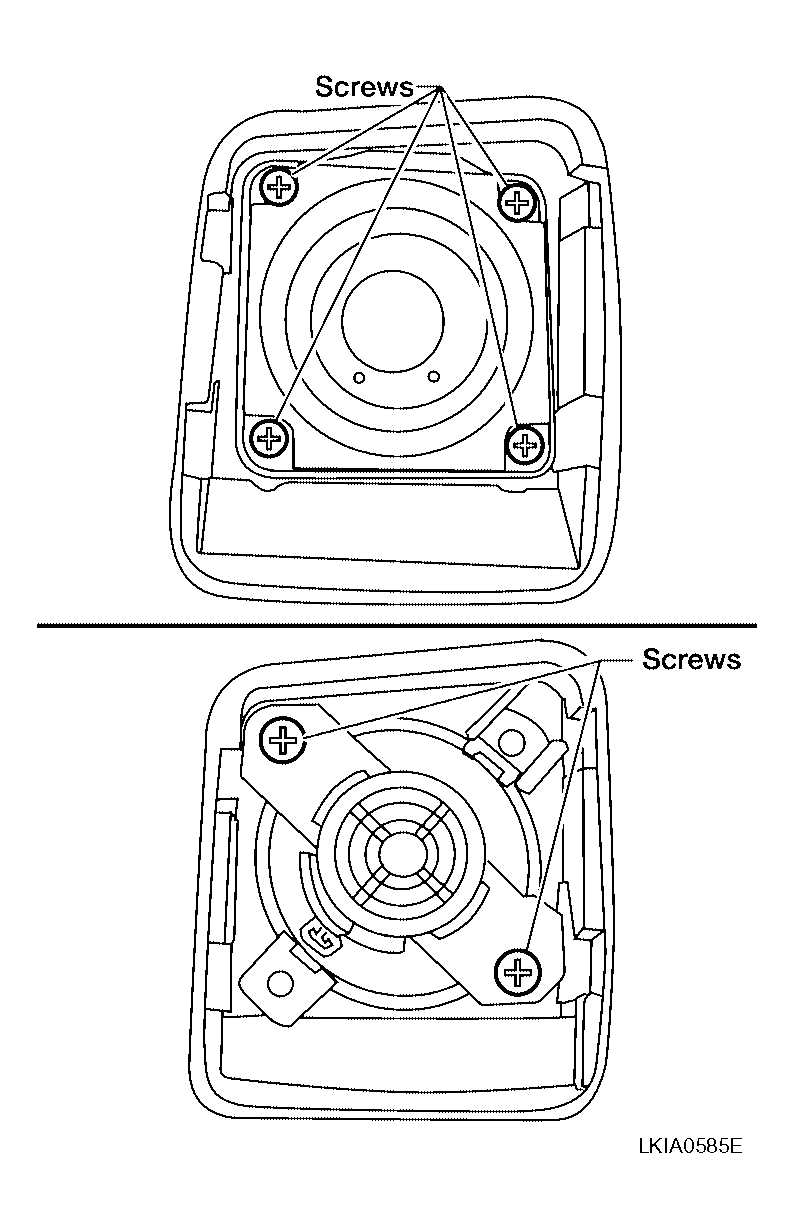

    Fig 1: Removing Front Tweeter Screws
    G04177695Courtesy of NISSAN MOTOR CO., U.S.A.
