Checking For Coolant Leaks

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

To check for leakage, apply pressure to the cooling system using Tool.

Tool number : EG17650301 (J-33984-A)

Testing pressure : 137 kPa (1.4 kg/cm 2  , 20 psi)

WARNING: Never remove the radiator cap or reservoir tank cap when the engine is hot. Serious burns could occur from high pressure coolant escaping from the radiator.

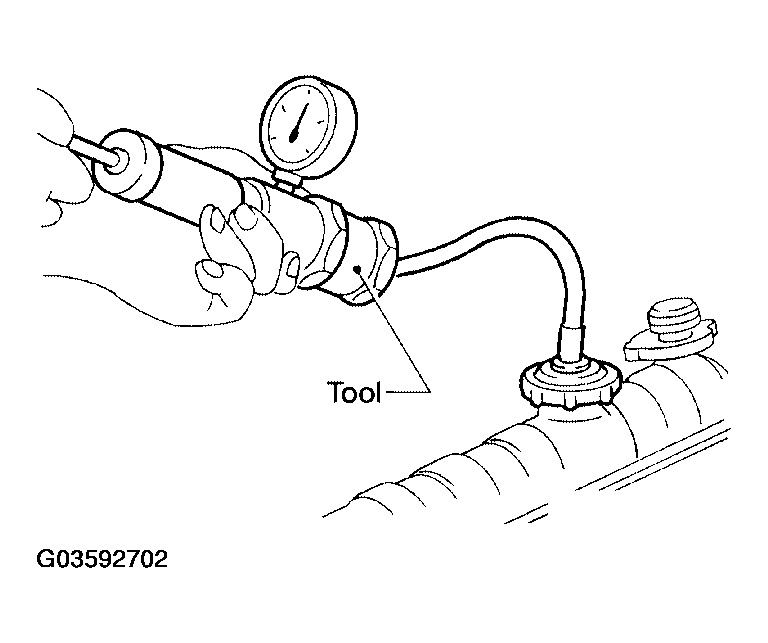

Fig 1: Applying Pressure To Cooling System
G03592702Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Higher pressure than specified may cause radiator damage.
