Display Items List

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

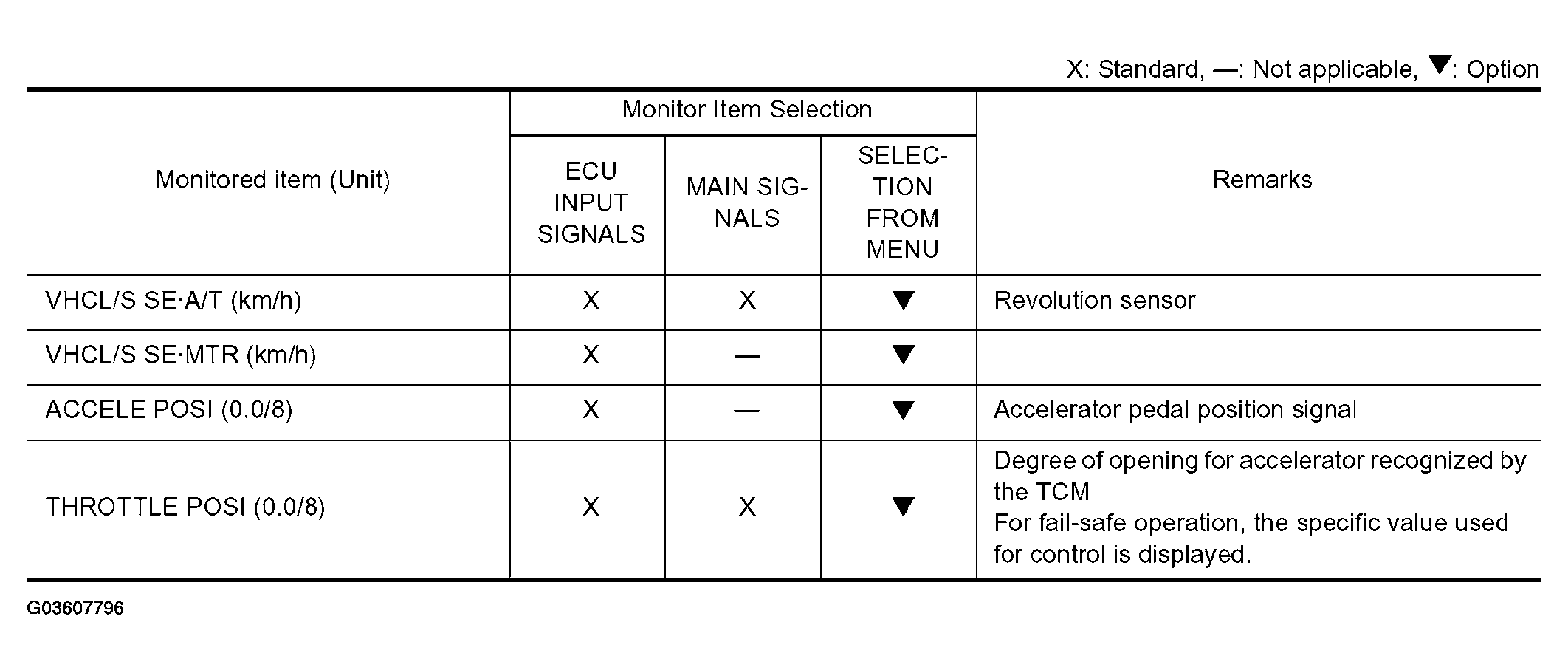

Fig 1: Display Items List (1 Of 5)
G03607796Courtesy of NISSAN MOTOR CO., U.S.A.

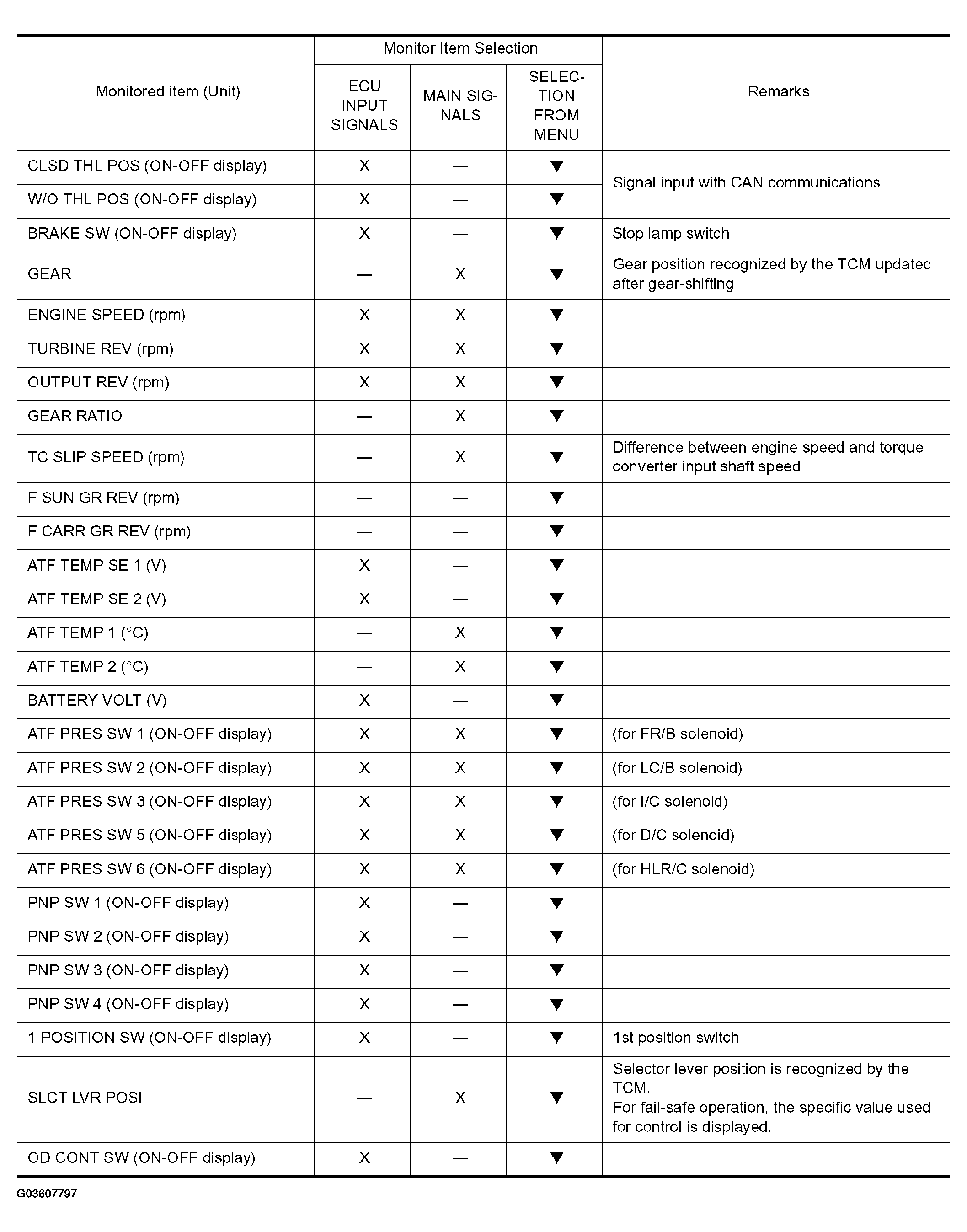

Fig 2: Display Items List (2 Of 5)
G03607797Courtesy of NISSAN MOTOR CO., U.S.A.

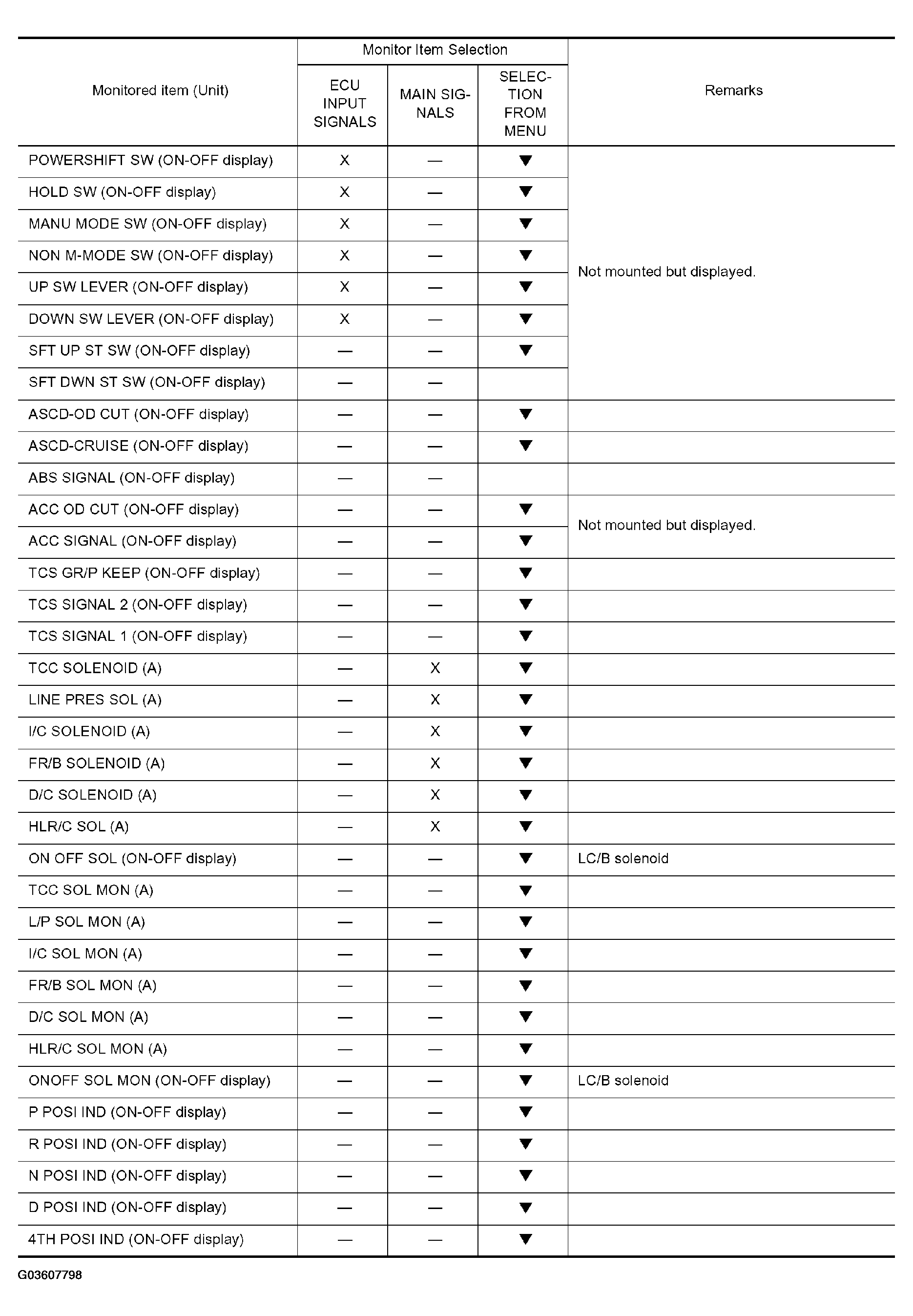

Fig 3: Display Items List (3 Of 5)
G03607798Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Display Items List (4 Of 5)
G03607799Courtesy of NISSAN MOTOR CO., U.S.A.

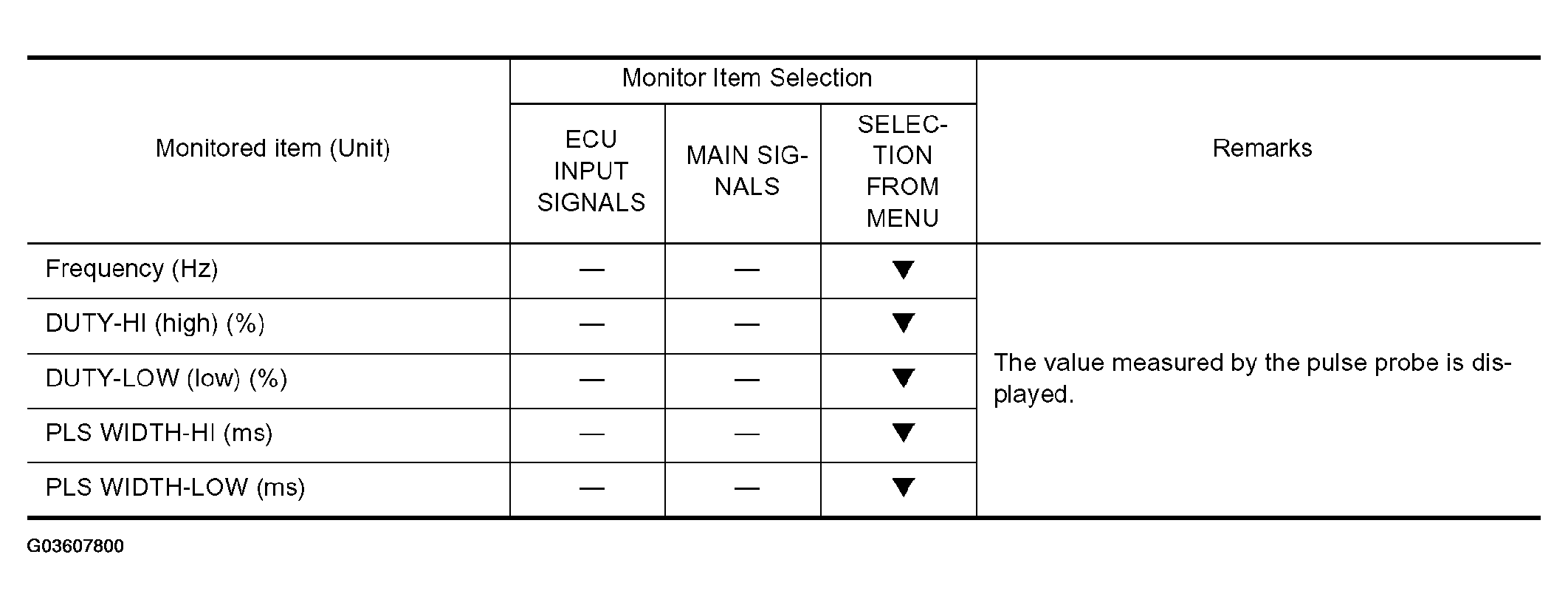

Fig 5: Display Items List (5 Of 5)
G03607800Courtesy of NISSAN MOTOR CO., U.S.A.
