Without Automatic Sliding Door System And Automatic Back Door System

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

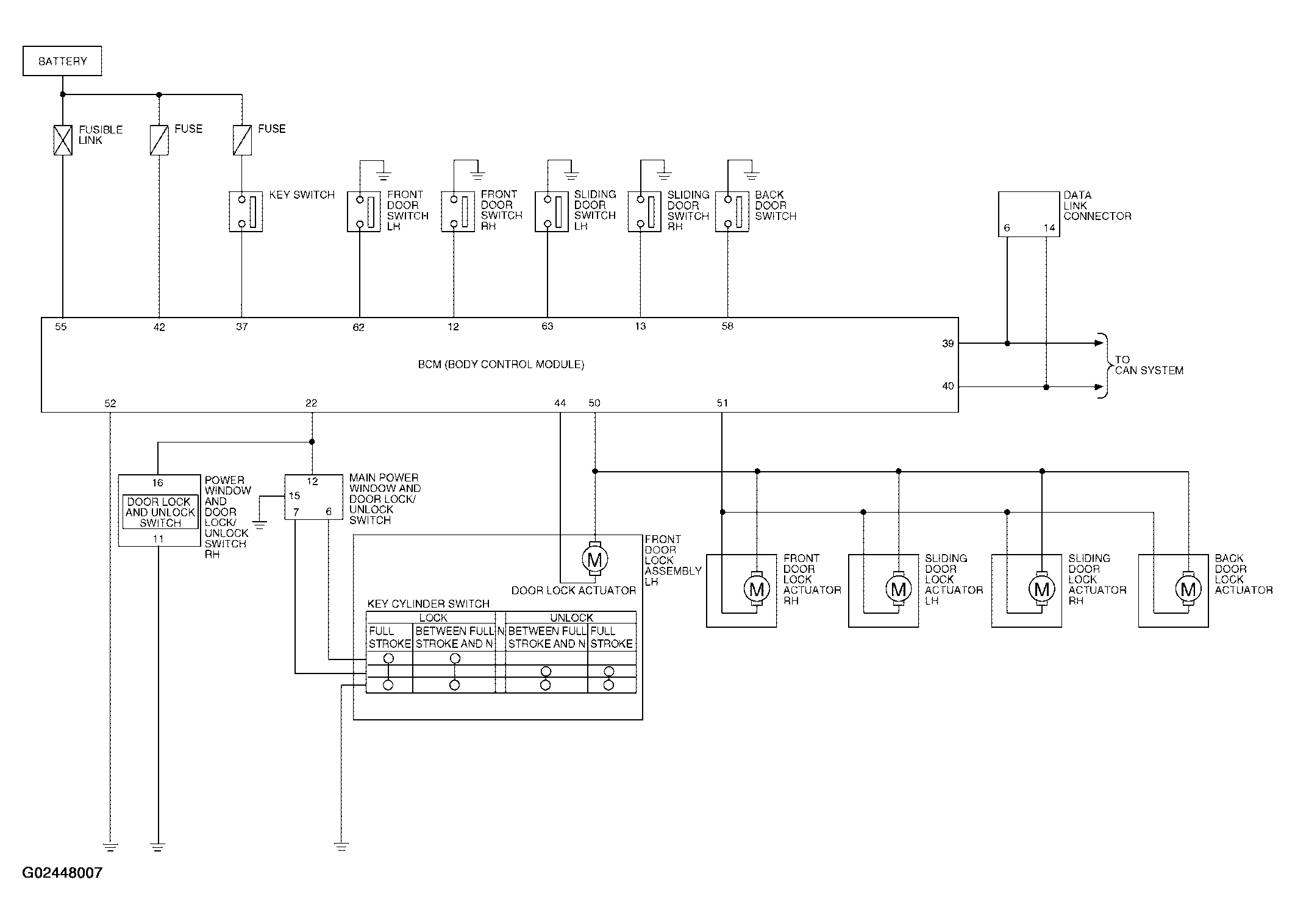

Fig 1: Schematic Diagram - Without Automatic Sliding Door System & Automatic Back Door System
G02448007Courtesy of NISSAN MOTOR CO., U.S.A.
