Door Switch Check (Without Automatic Back Door System)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR SWITCHES INPUT SIGNAL

    With CONSULT-II

    Check door switches ("DOOR SW-DR", "DOOR SW-AS""DOOR SW-RL", "DOOR SW-RR""BACK DOOR SW") in DATA MONITOR mode with CONSULT-II. Refer to "DATA MONITOR ".

    • When any doors are open:
      • DOOR SW-DR: ON
      • DOOR SW-AS: ON
      • DOOR SW-RR: ON
      • DOOR SW-RL: ON
      • BACK DOOR SW: ON
    • When any doors are closed:
      • DOOR SW-DR: OFF
      • DOOR SW-AS: OFF
      • DOOR SW-RR: OFF
      • DOOR SW-RL: OFF
      • BACK DOOR SW: OFF

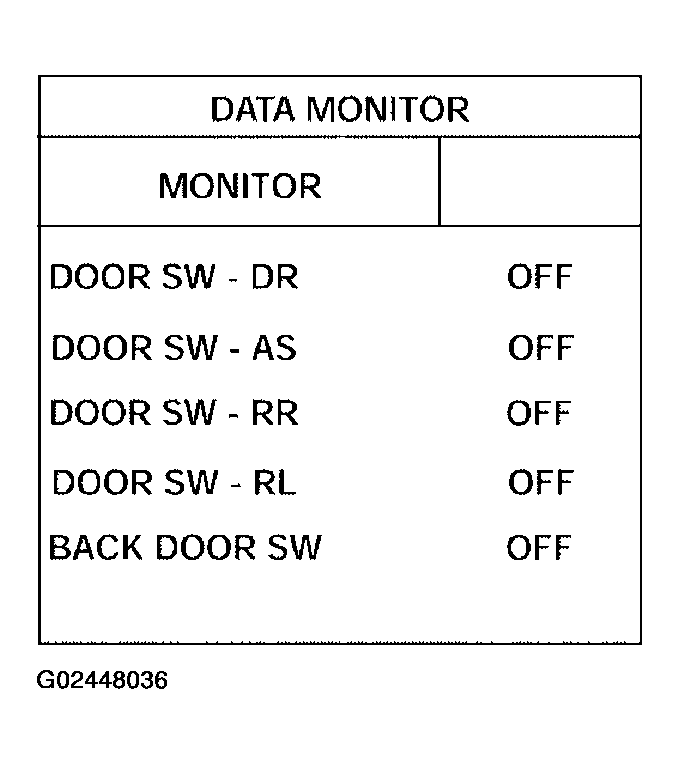

      Fig 1: CONSULT-II Display DATA MONITOR
      G02448036Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between BCM connector M18 or M20 terminals 12, 13, 58, 62, 63 and ground.

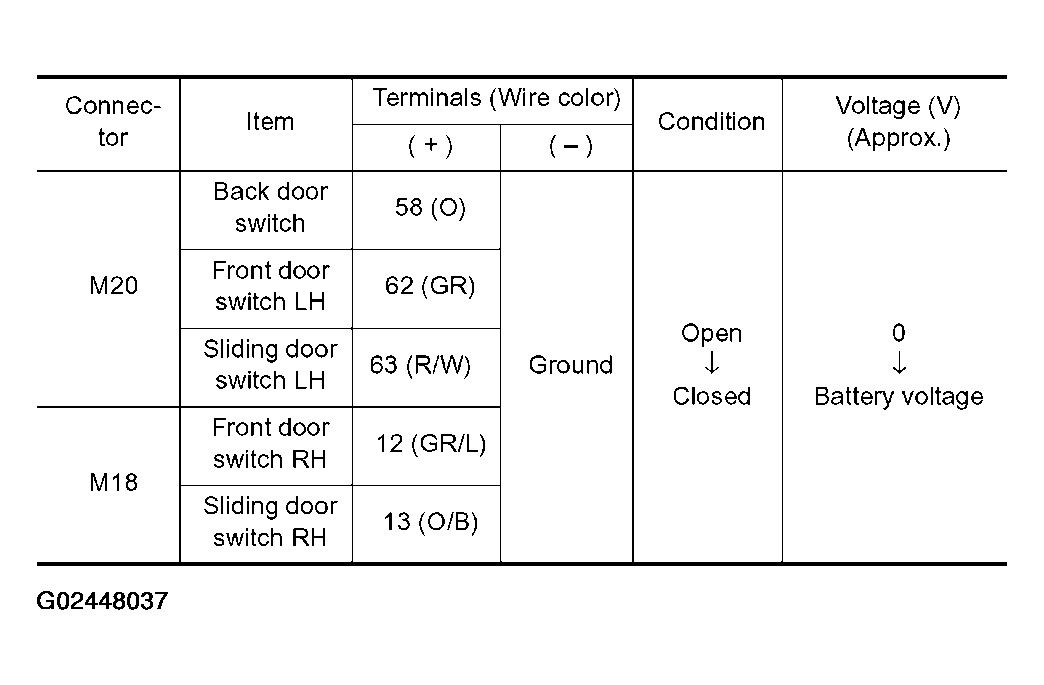

    Fig 2: Voltage Specifications
    G02448037Courtesy of NISSAN MOTOR CO., U.S.A.

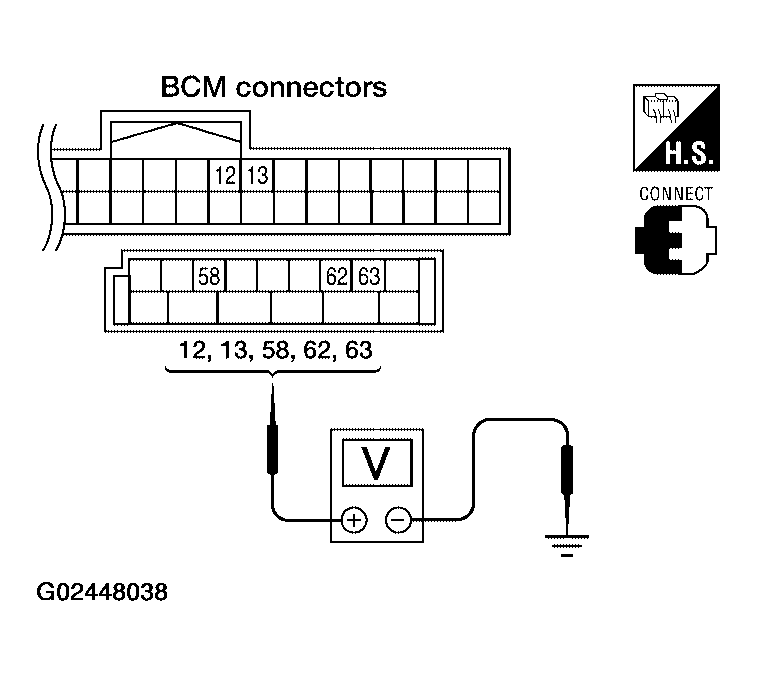

    Fig 3: Checking Voltage Between BCM Connector M18 Or M20 Terminals 12, 13, 58, 62, 63 & Ground
    G02448038Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Door switch is OK.
    • NG: GO TO 2.
  2. CHECK DOOR SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect door switch and BCM.
    3. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B46 (Sliding LH), B135 (Sliding RH) or D512 (Back) terminal 1 and BCM connector M18, M20 terminals 12, 13, 58, 62 and 63.

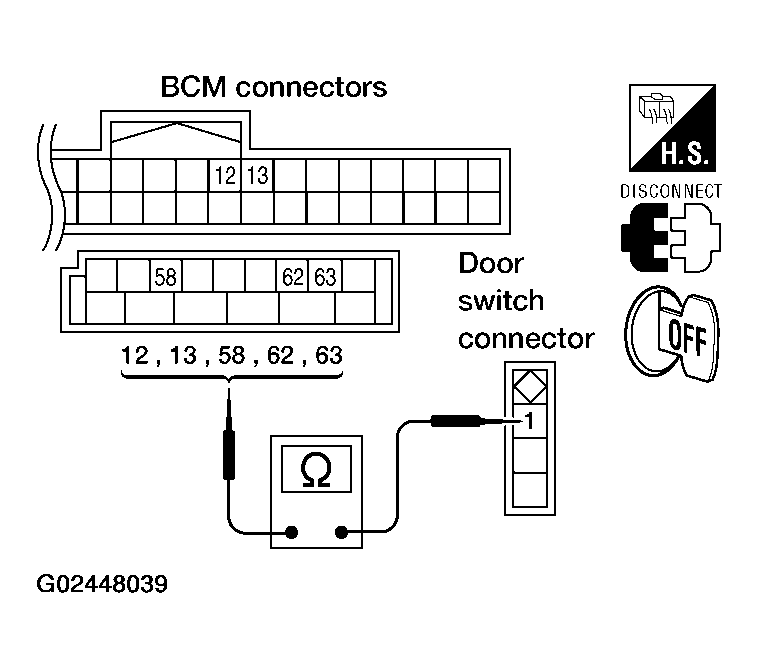

      Fig 4: Checking Door Switch Connector Circuits
      G02448039Courtesy of NISSAN MOTOR CO., U.S.A.
      • 1 (GR/R) - 62 (GR): Continuity should exist.
      • 1 (GR/L) - 12 (GR/L): Continuity should exist.
      • 1 (W/G) - 63 (R/W): Continuity should exist.
      • 1 (R/W) - 13 (O/B): Continuity should exist.
      • 1 (O) - 58 (O): Continuity should exist.
    4. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B46 (Sliding LH), B135 (Sliding RH) or D512 (Back) terminal 1 and ground.
      • 1 (GR/R, GR/L, W/G, R/W or O) - Ground: Continuity should not exist.

    OK or NG

    • OK: GO TO 3.
    • NG: Repair or replace harness.
  3. CHECK DOOR SWITCHES
    • Disconnect door switch harness.
    • Check continuity between door switch terminals.

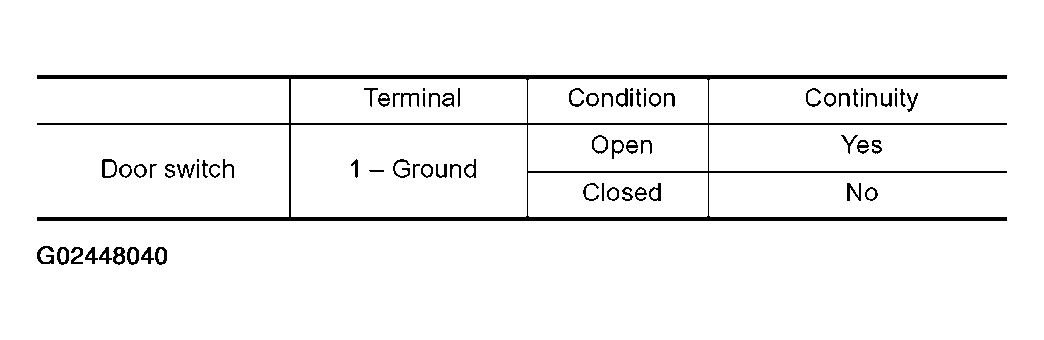

      Fig 5: Continuity Specifications
      G02448040Courtesy of NISSAN MOTOR CO., U.S.A.

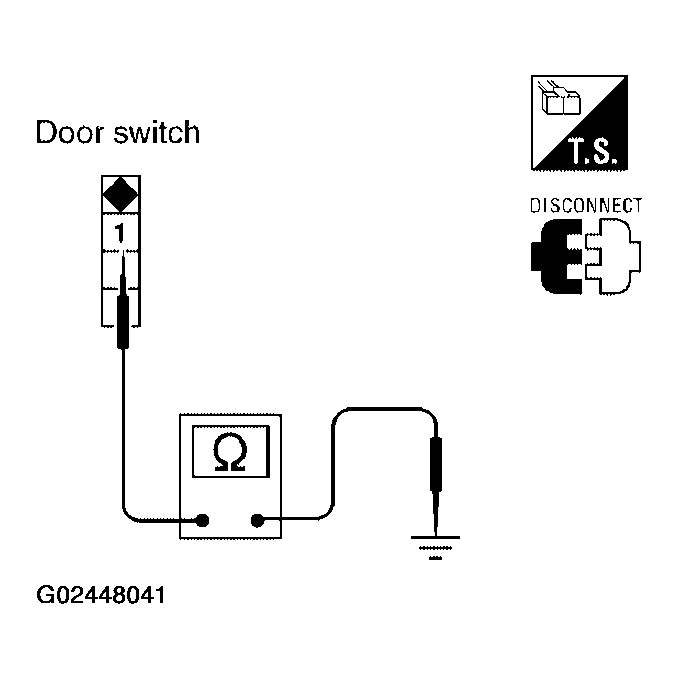

      Fig 6: Checking Continuity Between Door Switch Connector Terminal 1 & Ground
      G02448041Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Check door switch case ground condition (front and sliding door) or ground circuit (back door).
    • NG: Replace door switch.
