CONSULT-II Function (AIR BAG): Notes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

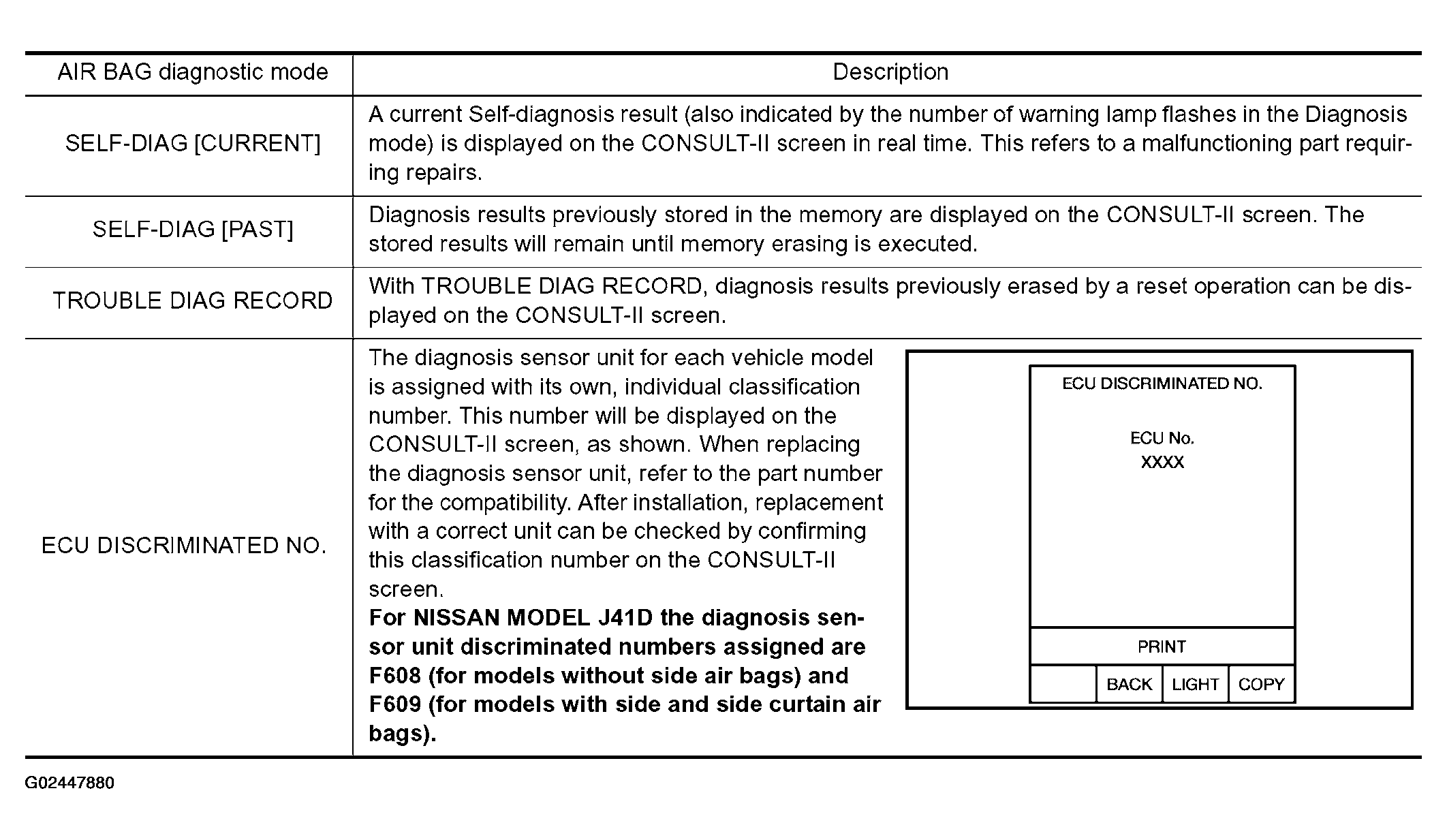

Fig 1: CONSULT-II Diagnosis Function Display
G02447880Courtesy of NISSAN MOTOR CO., U.S.A.
