Terminals and Reference Values of Soft Top Control Unit

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Terminals & Reference Values Of Soft Top Control Unit Chart (1 Of 2)
G02402725Courtesy of NISSAN MOTOR CO., U.S.A.

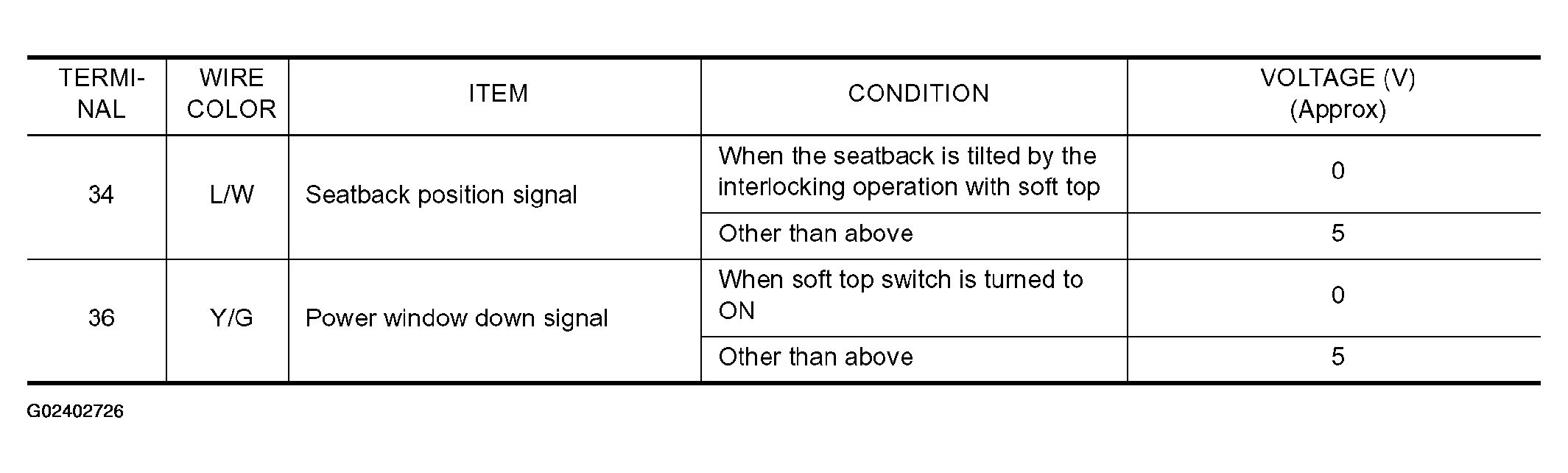

Fig 2: Terminals & Reference Values Of Soft Top Control Unit (2 Of 2)
G02402726Courtesy of NISSAN MOTOR CO., U.S.A.
