Power Supply Circuit Inspection

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSE
Check that the following fuses of the BOSE speaker amp., woofer, and audio unit are not blown.

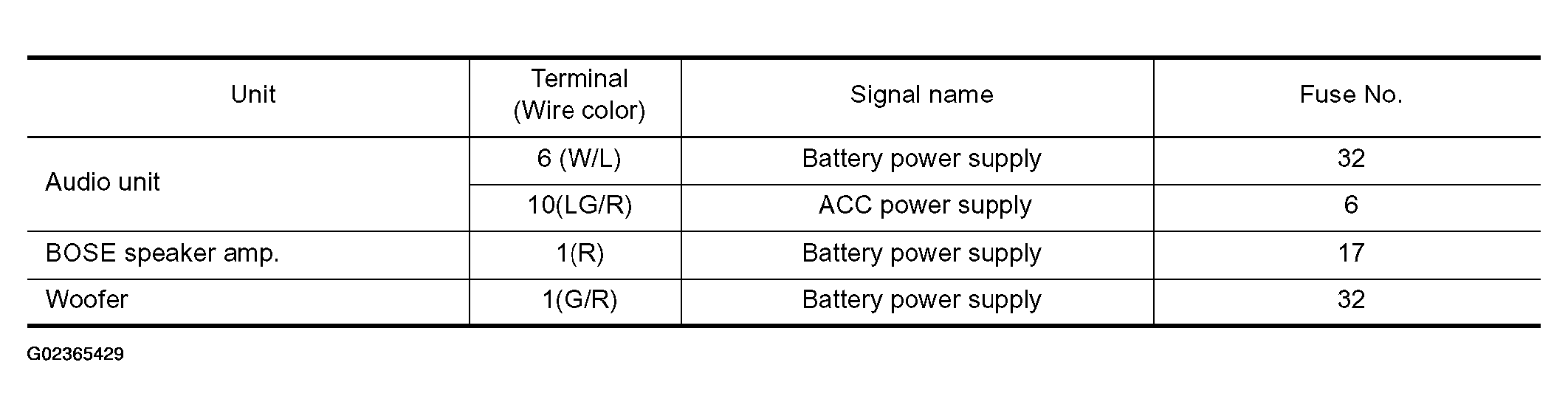

Fig 1: Bose Fuse Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 2.
2. NG : If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to "POWER SUPPLY ROUTING CIRCUIT ".
CHECK POWER SUPPLY CIRCUIT
1. Check voltage between the audio unit connector and ground.

  Fig 2: Checking Voltage Between Audio Unit Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 3: Terminal Voltage Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check voltage between BOSE speaker amp. connector or woofer connector and ground.

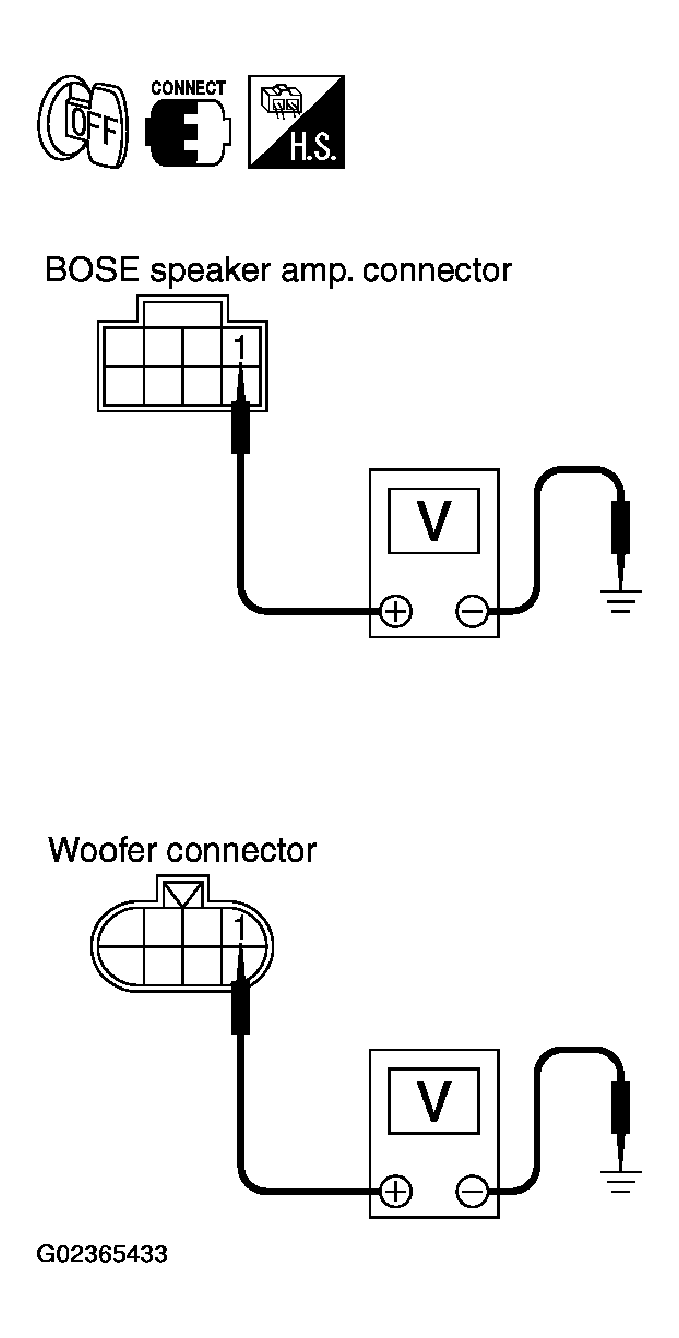

Fig 4: Checking Voltage Between Bose Speaker Amp. Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Terminal Voltage Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK :
  - INSPECTION END (Audio unit is OK.)
  - GO TO 3. (BOSE speaker amp. and woofer)
2. NG : Repair harness or connector between each unit and fuse.
CHECK GROUND CIRCUIT
1. Disconnect BOSE speaker amp. connector and woofer connector.
2. Check continuity between BOSE speaker amp. harness connector B212 terminal 17 (B) and ground.
  1. 17 (B) - Ground : Continuity should exist.
  Fig 6: Checking Continuity Between Bose Speaker Amp. Harness Connector B212 Terminal 17 (B) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check continuity between woofer harness connector B223 terminal 2 (B) and ground.
  1. 2 (B) - Ground : Continuity should exist.
OK or NG
1. OK : INSPECTION END (System is OK.)
2. NG : Repair harness or connector.
Fig 7: Checking Continuity Between Woofer Harness Connector B223 Terminal 2 (B) And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
