Main Power Window and Door Lock/Unlock Switch Power Supply and Ground Circuit Check/King Cab

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER SUPPLY CIRCUIT
    1. Turn ignition switch ON.
    2. Check voltage between main power window and door lock/unlock switch connector D7 terminal 1,10 and ground.

      1 (W/R) - Ground: Battery voltage

      10 (W/L) - Ground: Battery voltage

    OK or NG

    1. OK: GO TO 2.
    2. NG: GO TO  3 .

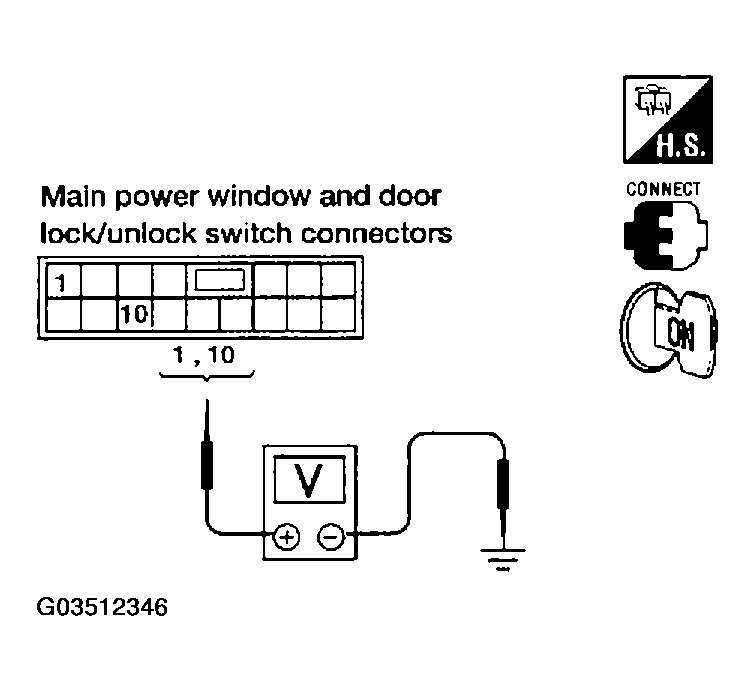

    Fig 1: Checking Voltage Between Main Power Window And Door Lock/Unlock Switch Connector Terminal And Ground
    G03512346Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect main power window and door lock/unlock switch.
    3. Check continuity between main power window and door lock/unlock switch connector D7 terminal 15 and ground.

      15 (B) - Ground: Continuity should exist.

    OK or NG

    1. OK: Power supply and ground circuit are OK.
    2. NG: Repair or replace harness.

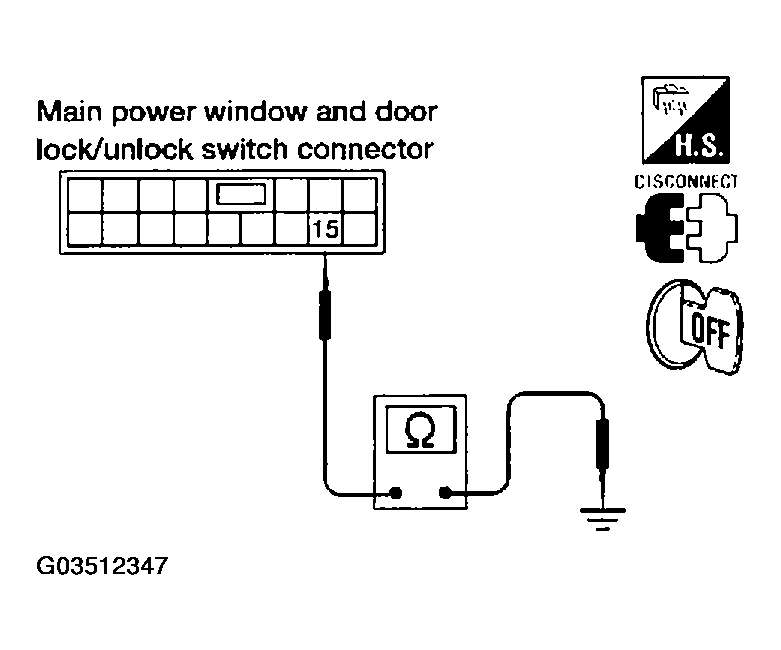

    Fig 2: Checking Continuity Between Main Power Window And Door Lock/Unlock Switch And Ground
    G03512347Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH POWER SUPPLY CIRCUIT
    1. Disconnect BCM.
    2. Check continuity between BCM connector M20 terminal 68, 69 and main power window and door lock/unlock switch connector D7 terminal 1,10.

      68 (W/L) -10 (W/L): Continuity should exist.

      69 (W/R) -1 (W/R): Continuity should exist.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair or replace harness.

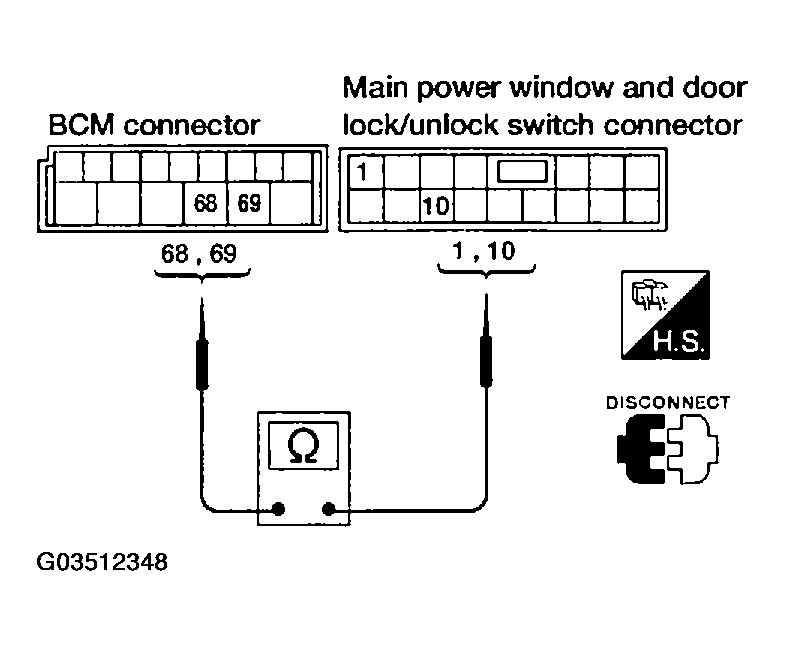

    Fig 3: Checking Continuity Between BCM Connector M20 Connector And Main Power Window And Door Lock/Unlock Switch
    G03512348Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK BCM OUTPUT SIGNAL
    1. Connect BCM.
    2. Turn ignition switch ON.
    3. Check voltage between BCM connector M20 terminal 68, 69 and ground.

      68 (W/L) - Ground: Battery voltage

      69 (W/R) - Ground: Battery voltage

    OK or NG

    1. OK: Check the condition of the harness and the connector.
    2. NG: Replace BCM.

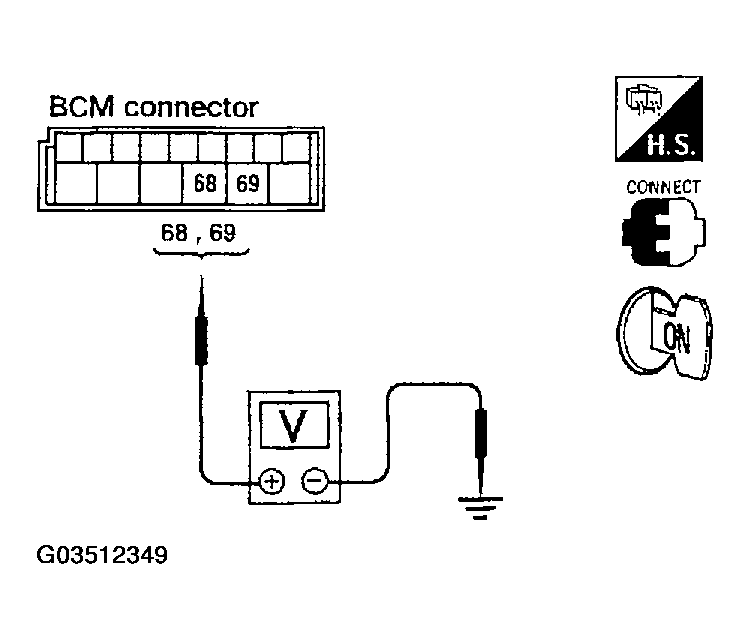

    Fig 4: Checking Voltage Between BCM Connector Terminal And Ground
    G03512349Courtesy of NISSAN MOTOR CO., U.S.A.
