Smart Entrance Control Unit Terminals And Reference Value Measured Between Each Terminal And Ground

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

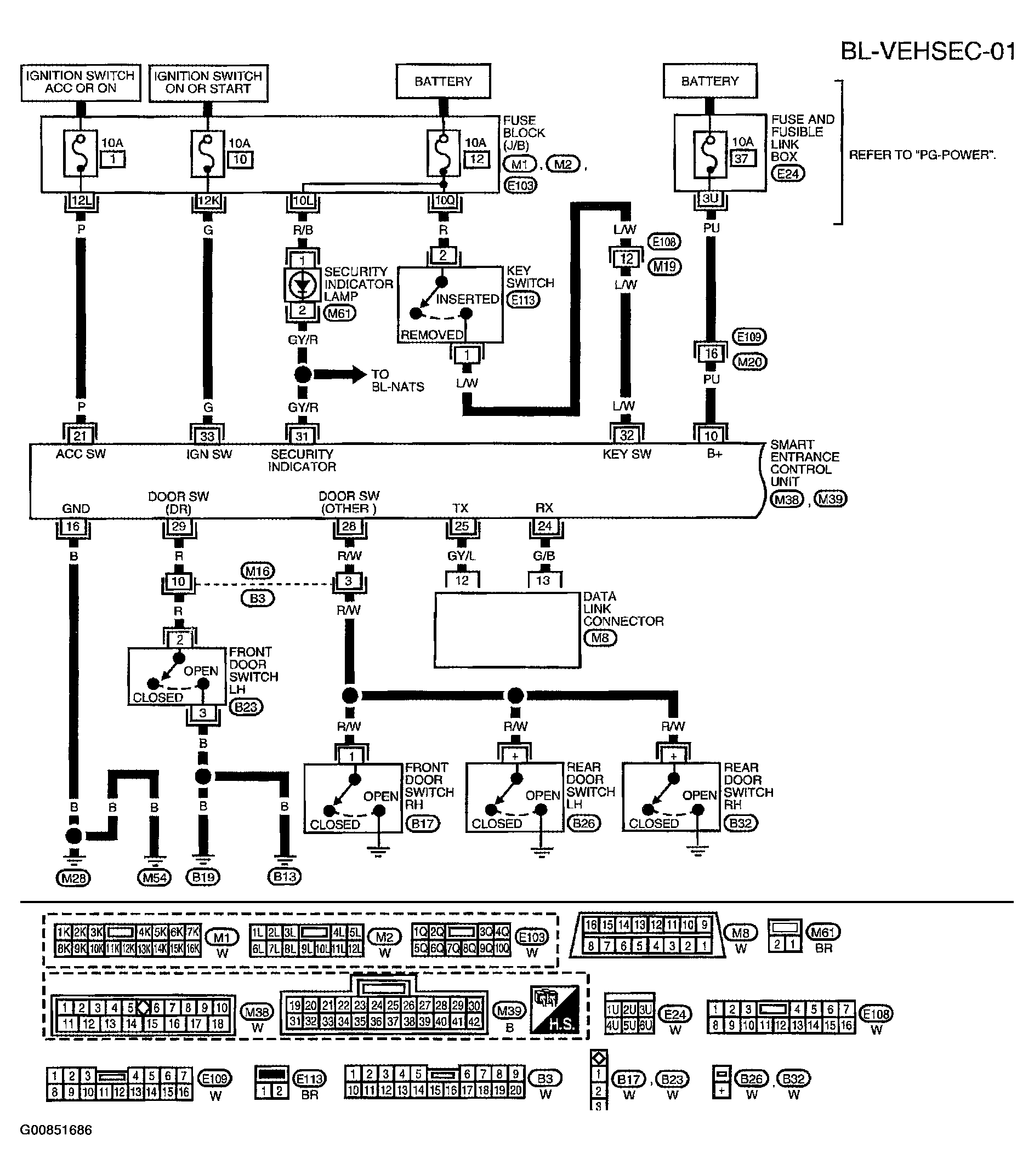

Fig 1: Wiring Diagram - BL-VEHSEC-01

Courtesy of NISSAN MOTOR CO., U.S.A.

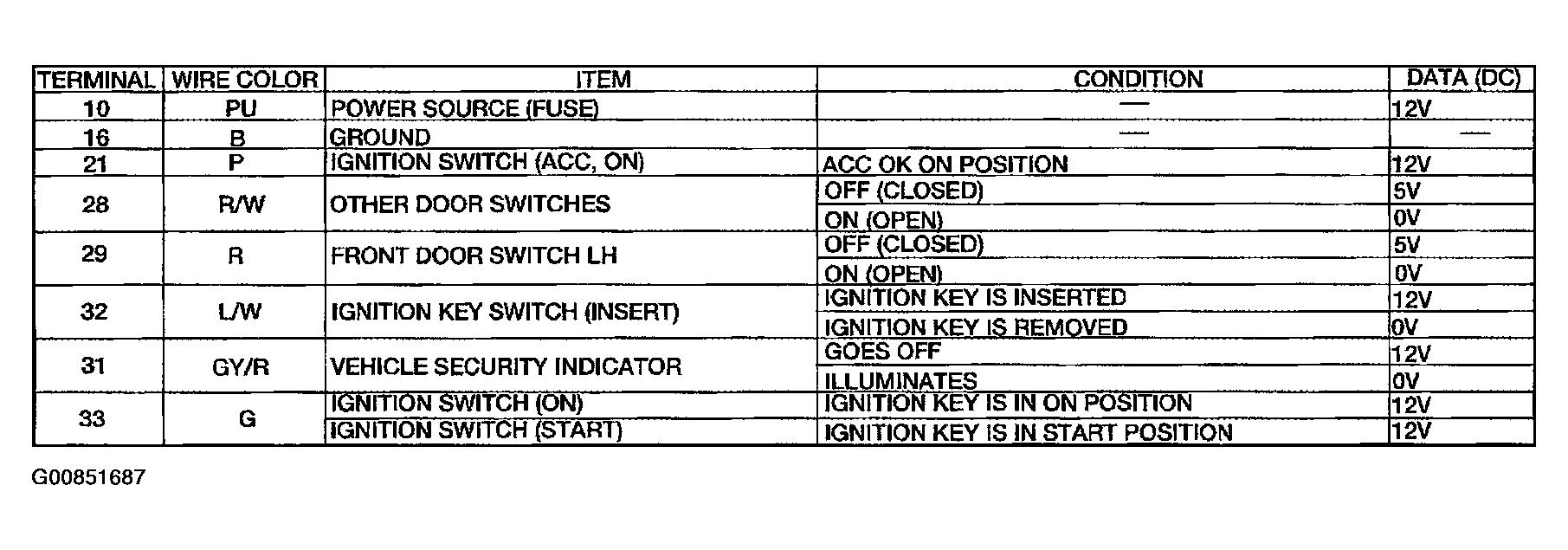

Fig 2: Wiring Color Condition Specification - BL-VEHSEC-01

Courtesy of NISSAN MOTOR CO., U.S.A.

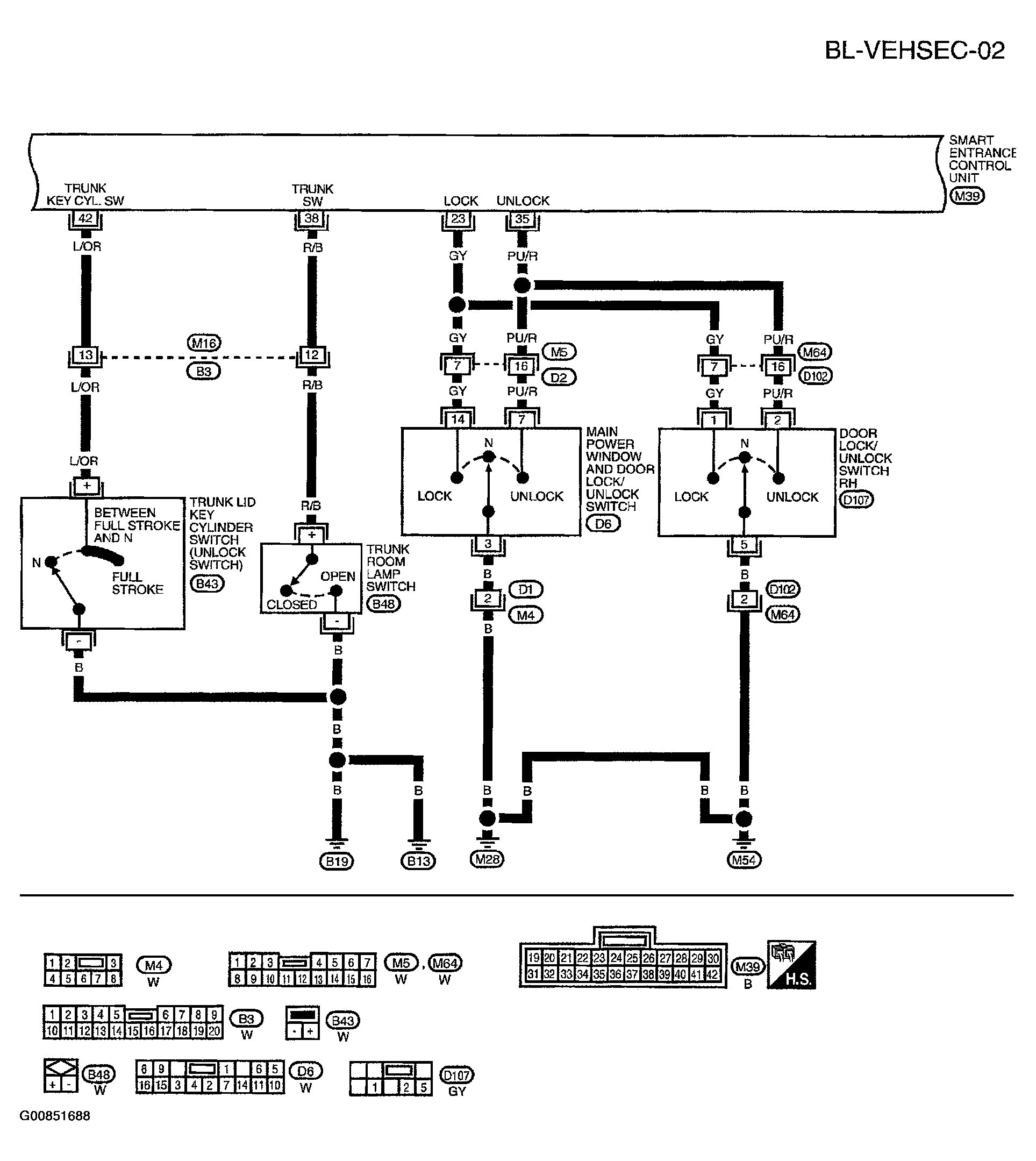

Fig 1: Wiring Diagram - BL-VEHSEC-02

Courtesy of NISSAN MOTOR CO., U.S.A.

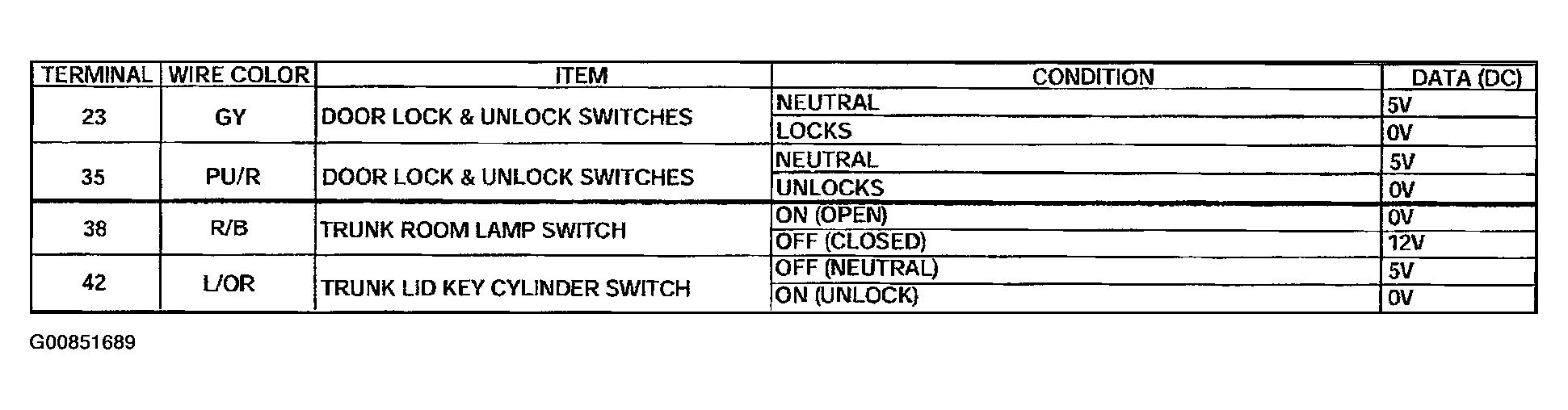

Fig 2: Wiring Color Condition Specification - BL-VEHSEC-02

Courtesy of NISSAN MOTOR CO., U.S.A.

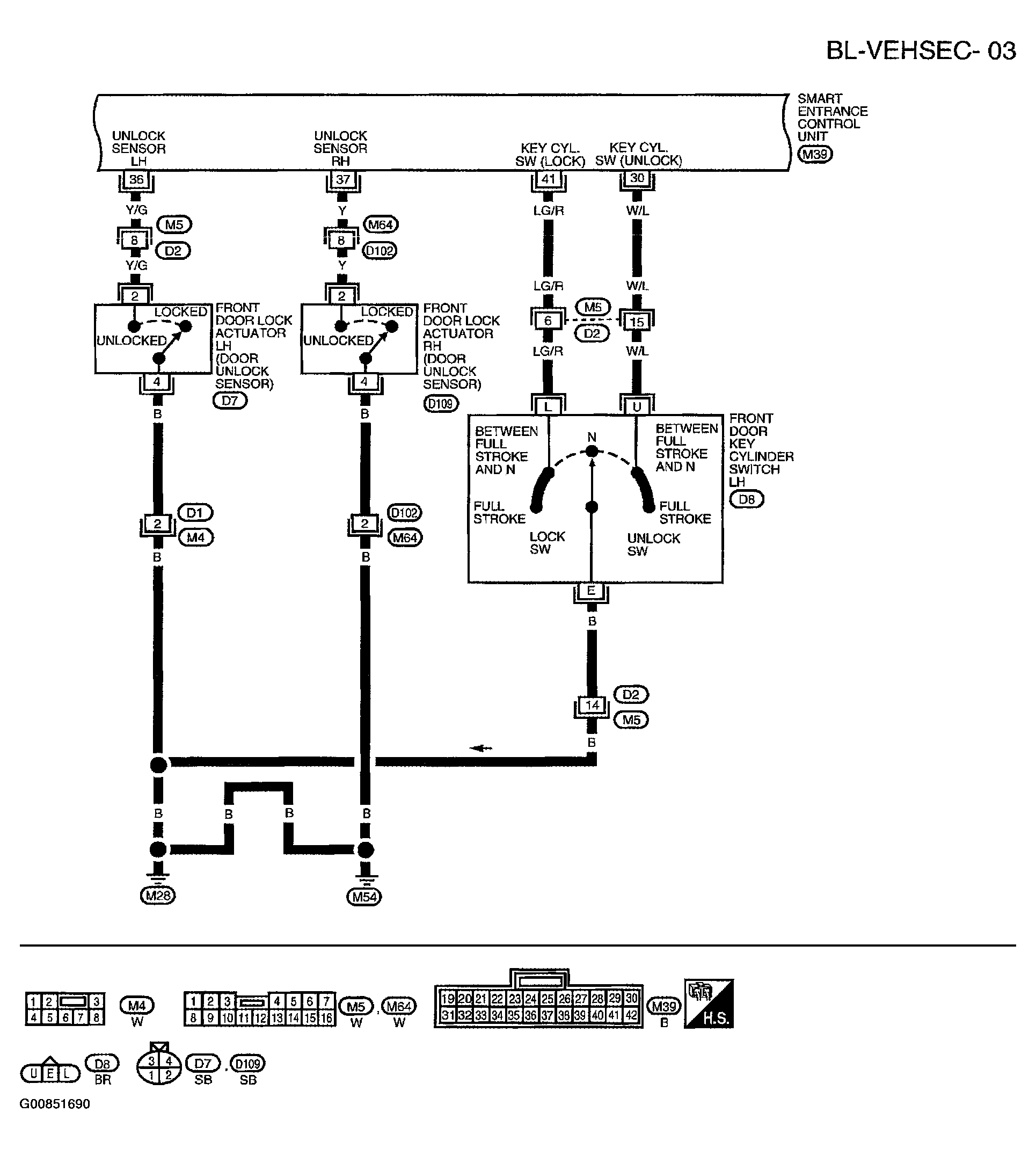

Fig 1: Wiring Diagram - BL-VEHSEC-03

Courtesy of NISSAN MOTOR CO., U.S.A.

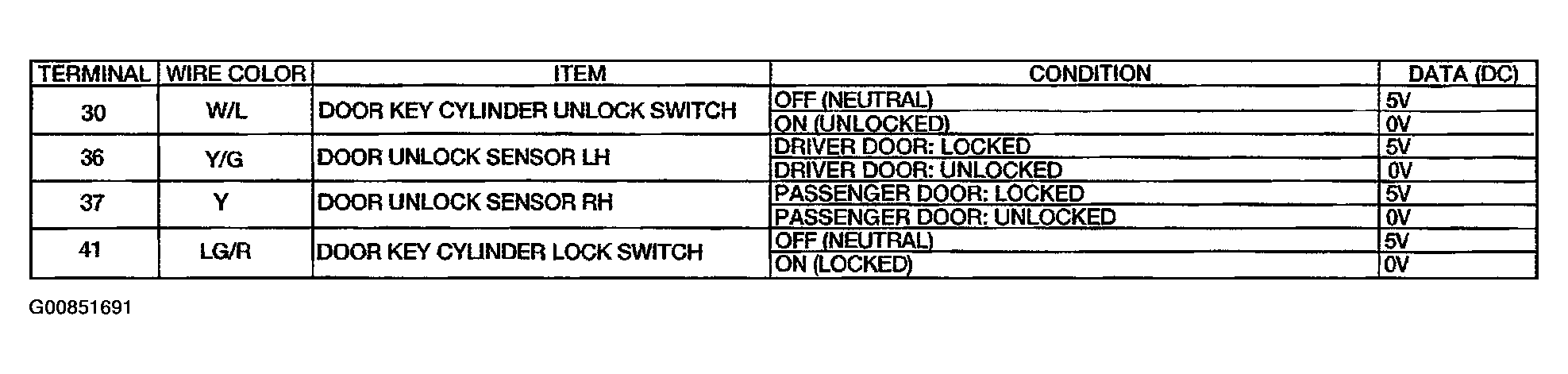

Fig 2: Wiring Color Condition Specification - BL-VEHSEC-03

Courtesy of NISSAN MOTOR CO., U.S.A.

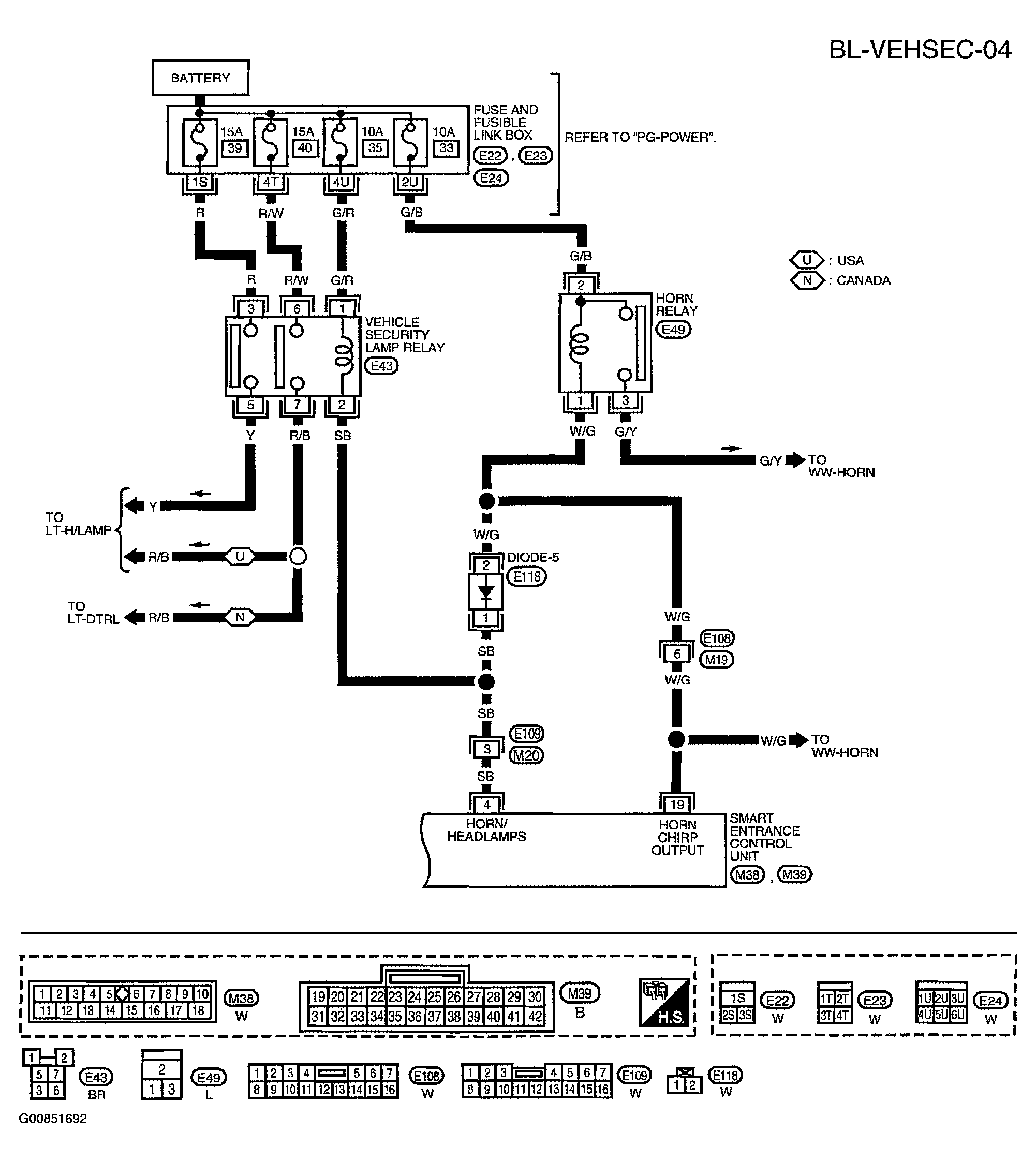

Fig 1: Wiring Diagram - BL-VEHSEC-04

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Wiring Color Condition Specification - BL-VEHSEC-04

Courtesy of NISSAN MOTOR CO., U.S.A.
