Default Settings

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When disconnecting the battery with the door opened, it is necessary to reset the default setting.

When the sliding door is removed and re-mounted, the door installation adjusted, carry out the following operations on a level location. When the battery is first connected, the sliding door control unit is automatically set to the initialization mode. If the door fails to enter initialization mode, perform the following procedure before performing initialization procedure.

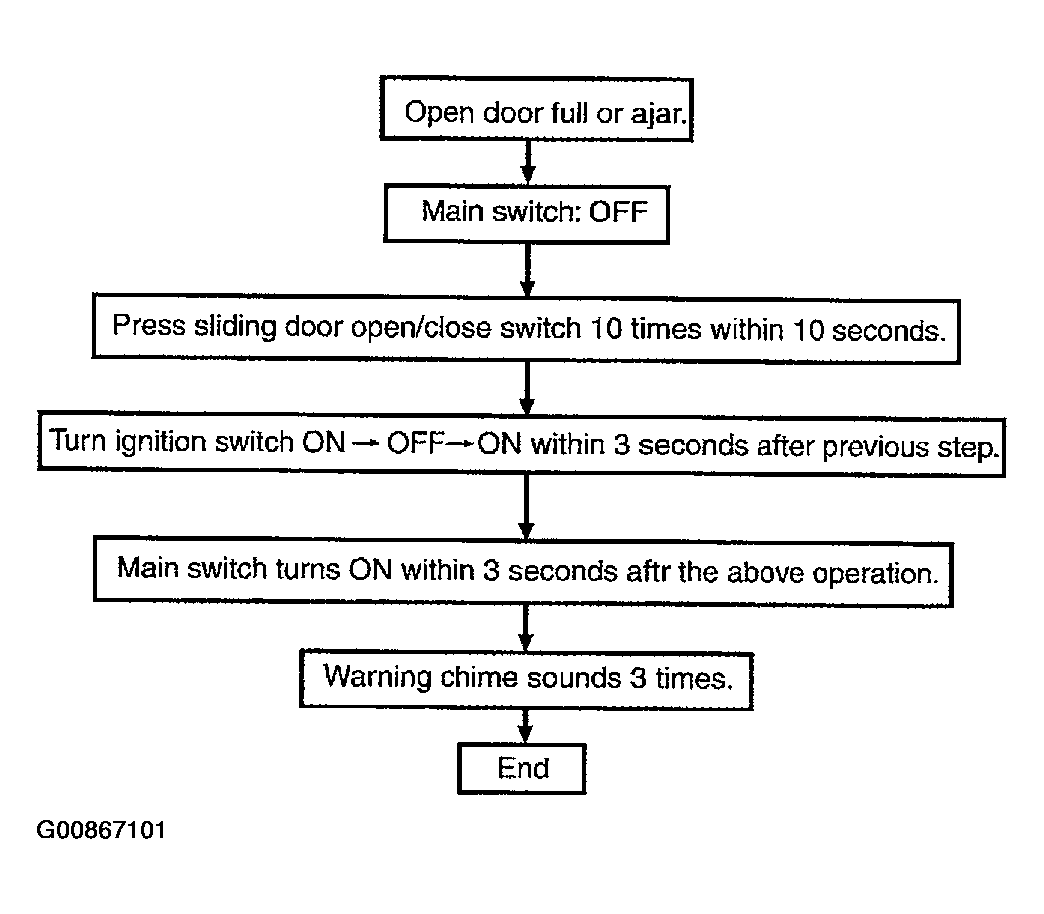

Fig 1: Operation Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
To initialize the sliding door, perform the following procedure.

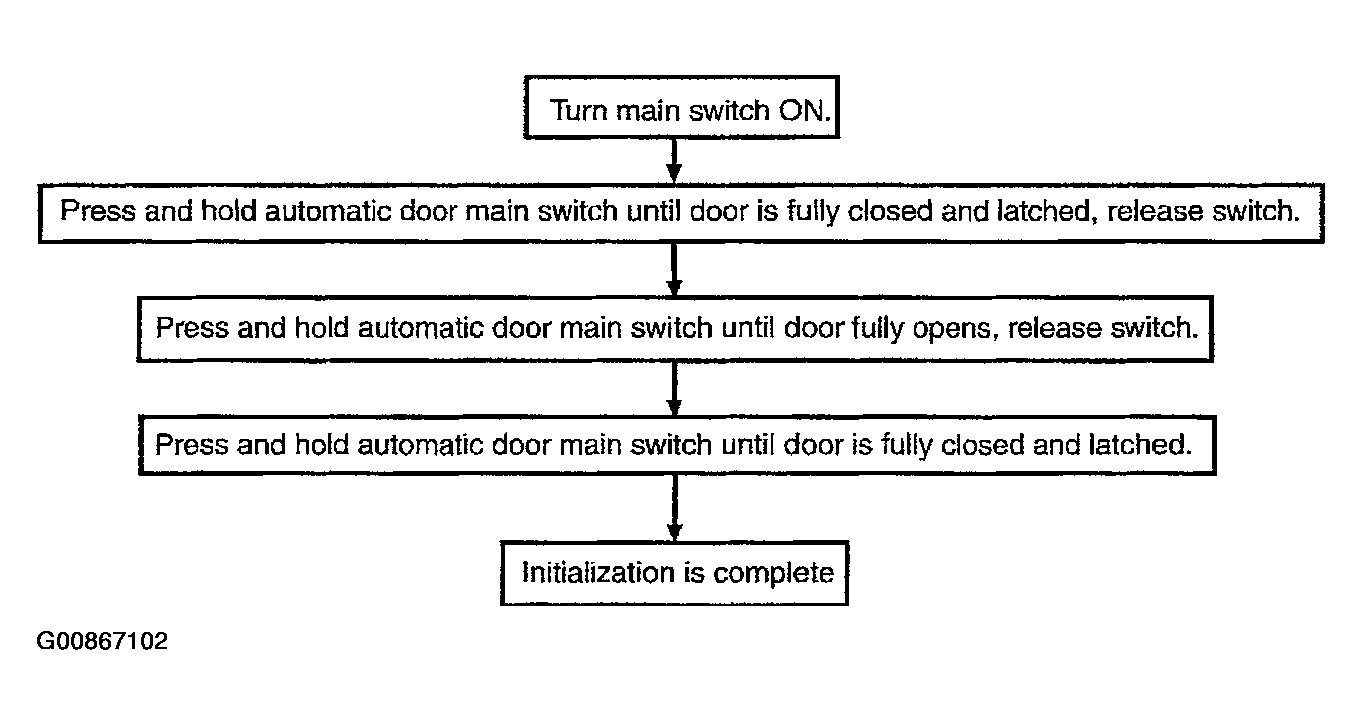

Fig 2: Operation Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
