Intake Valve Timing Control Solenoid Valve (3.5L Engines)

1. Disconnect intake valve timing control solenoid valve harness connector.
2. For component inspection, see Fig 1. For component and connector locations, see the following:
   • On Altima, see Figure.
   • On Maxima, see Figure.
   • On Murano, see Figure.
   • On Pathfinder, see Figure.
   • On 350Z, see Figure.

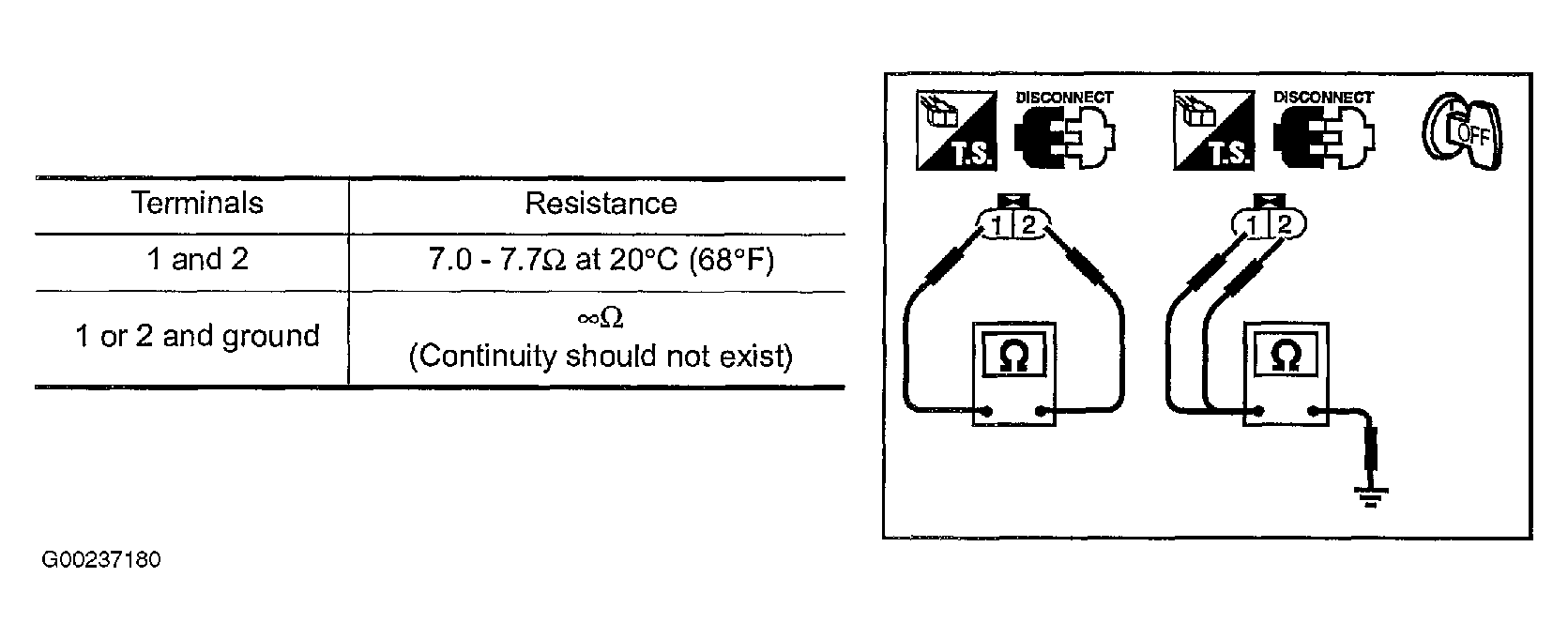

Fig 1: Testing Intake Valve Timing Control Solenoid Valve (3.5L Engines)

Courtesy of NISSAN MOTOR CO., U.S.A.
