Intake Valve Timing Control Solenoid Valve (2.5L Engines)

For component inspection, see Fig 1. For component and connector locations, see the following:

• On Altima, see Figure.
• On Sentra, see Figure.

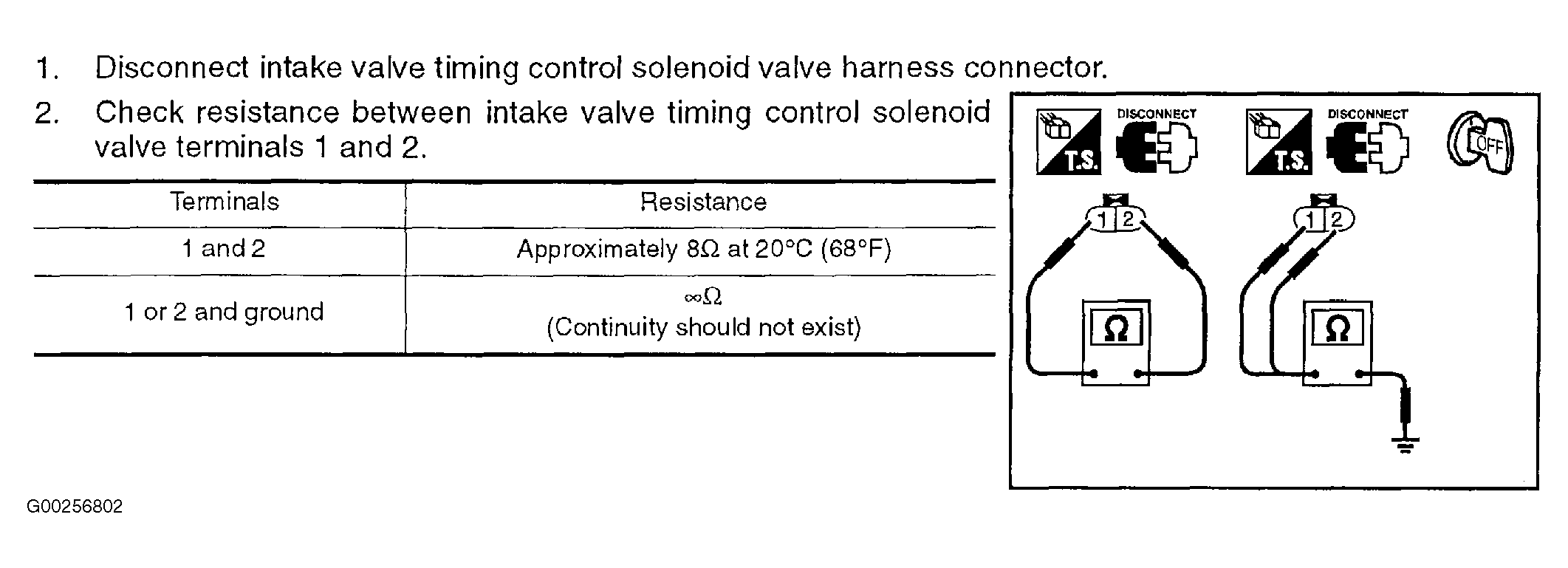

Fig 1: Testing Intake Valve Timing Control Solenoid Valve (2.5L Engines)

Courtesy of NISSAN MOTOR CO., U.S.A.
