Intake Valve Timing Control Solenoid Valve (1.8L Engines)

For component inspection, see Fig 1. For component and connector locations, see Figure.

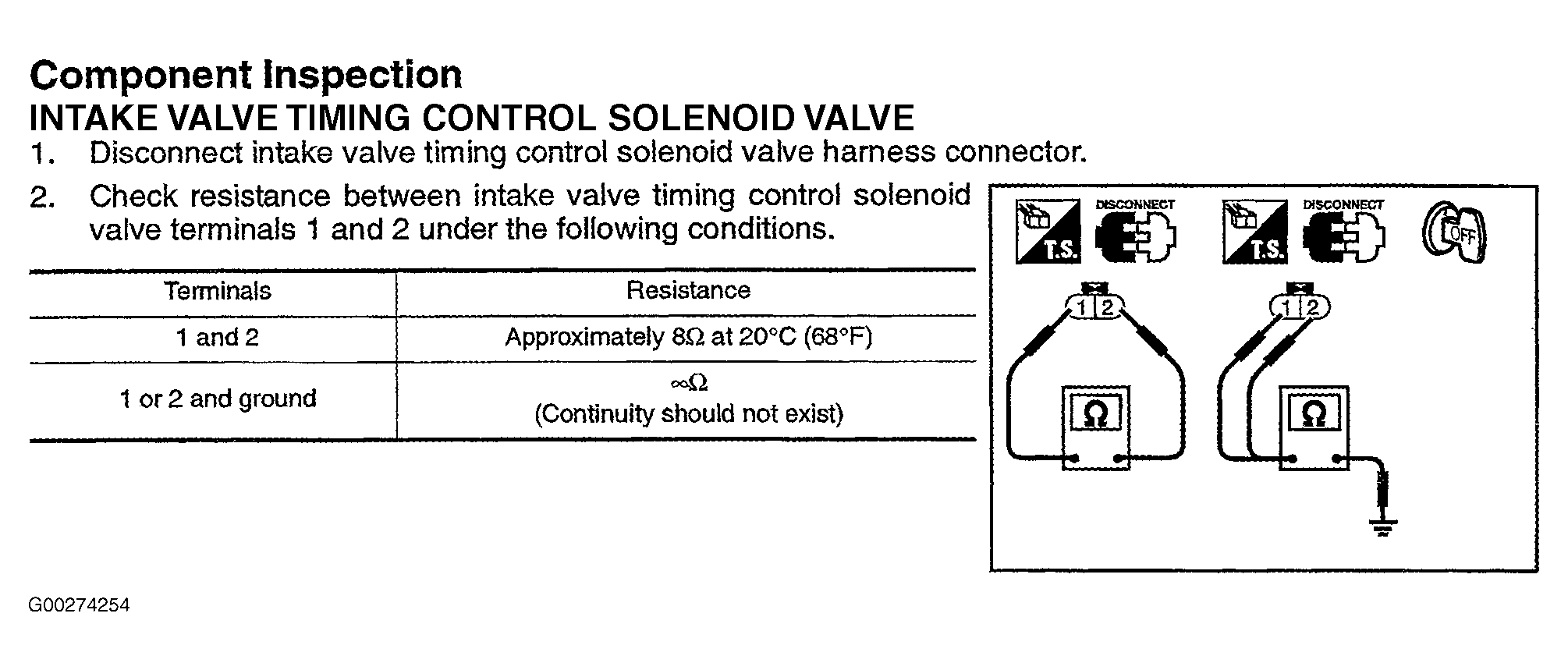

Fig 1: Testing Intake Valve Timing Control Solenoid Valve (1.8L Engines)

Courtesy of NISSAN MOTOR CO., U.S.A.
