Diagnostic Procedure

For diagnostic procedure, see Fig 1

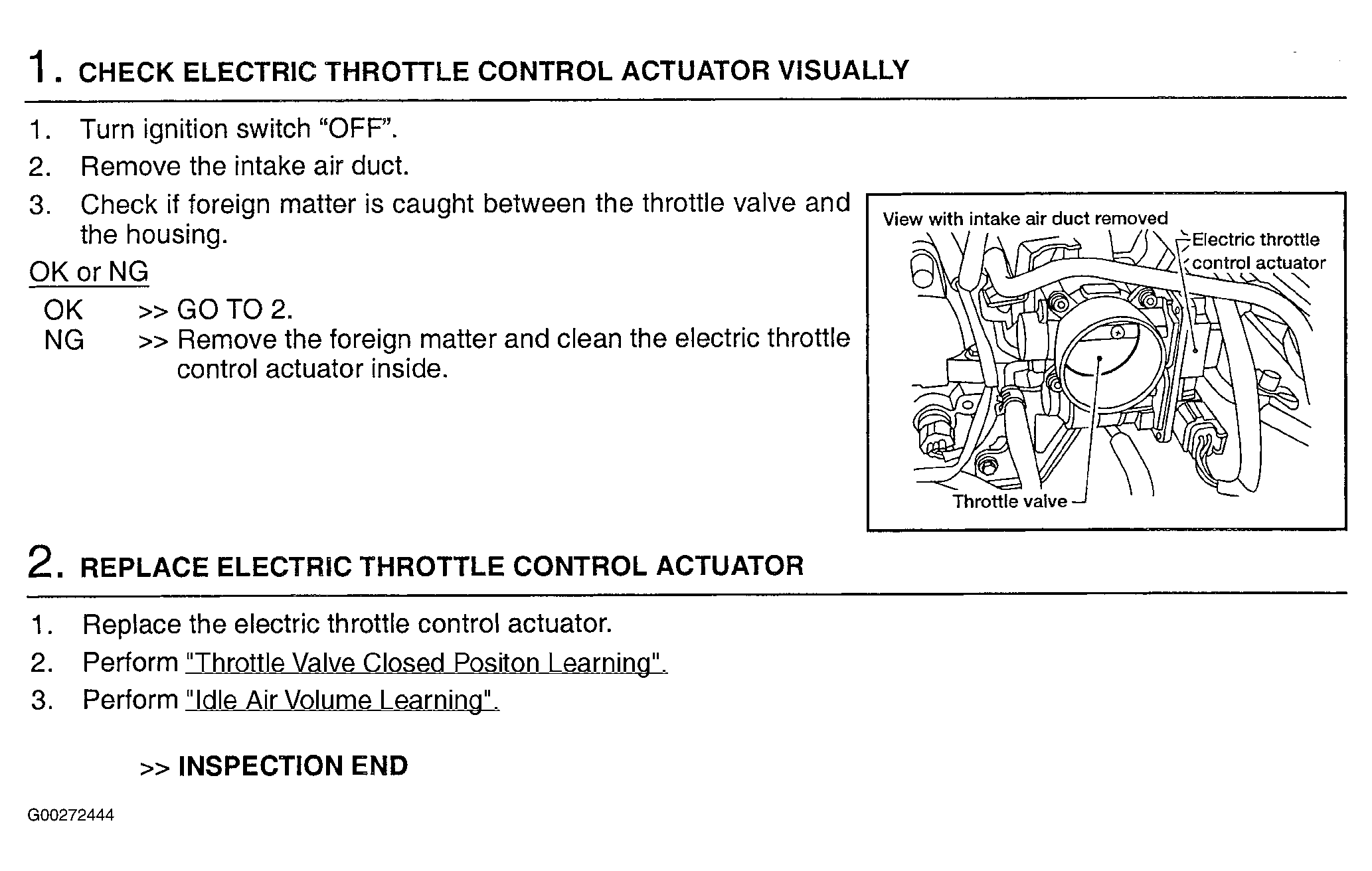

Fig 1: DTC P1226 Diagnostic Procedure
G00272444Courtesy of NISSAN MOTOR CO., U.S.A.
