Main 12 Causes Of Overheating

To identify the 12 main causes of overheating, see Fig 1 .

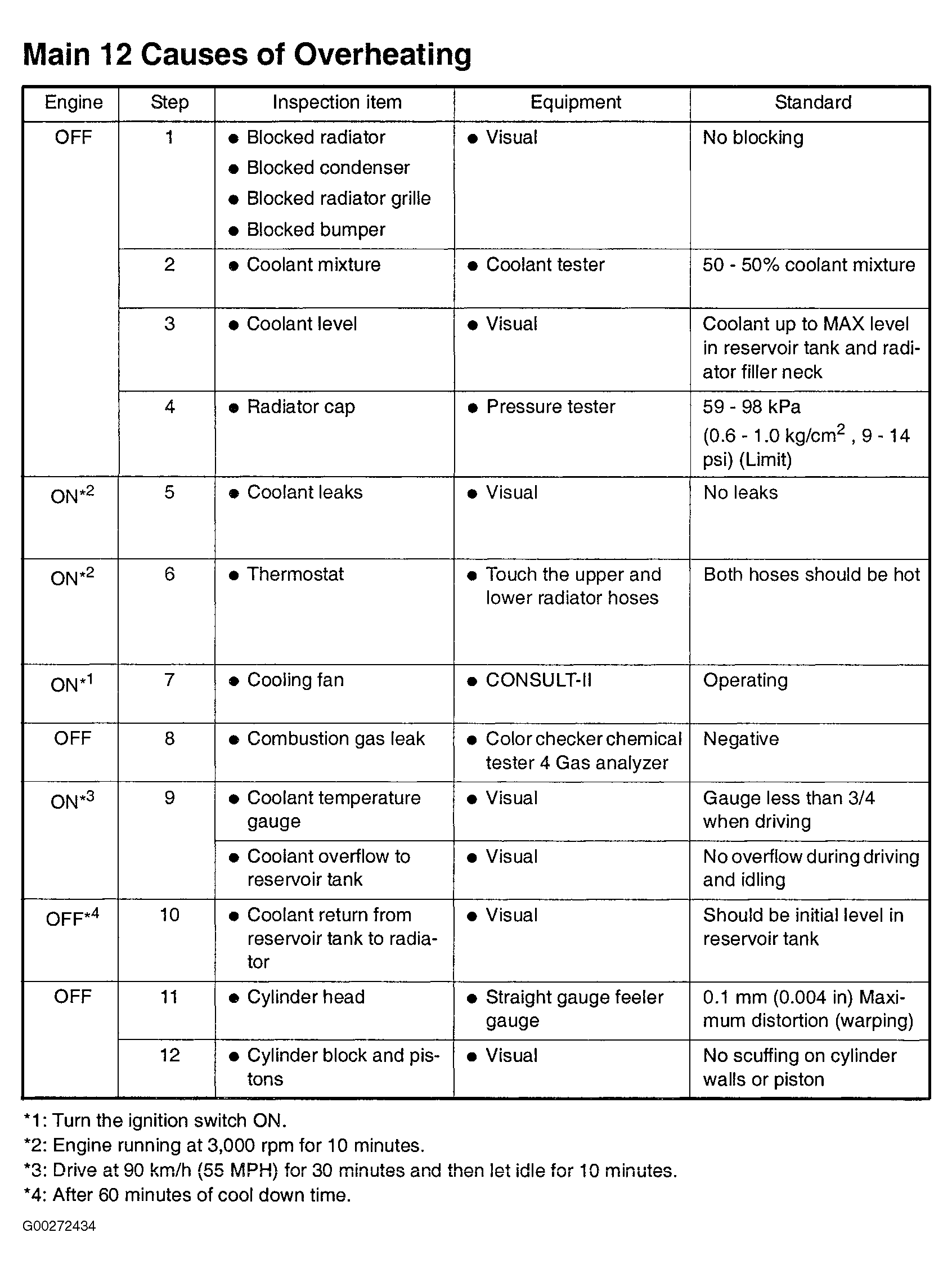

Fig 1: DTC P1217 Main 12 Causes Of Overheating

G00272434

Courtesy of NISSAN MOTOR CO., U.S.A.
