Component Inspection

For component inspection, see Fig 1 or Fig 2 .

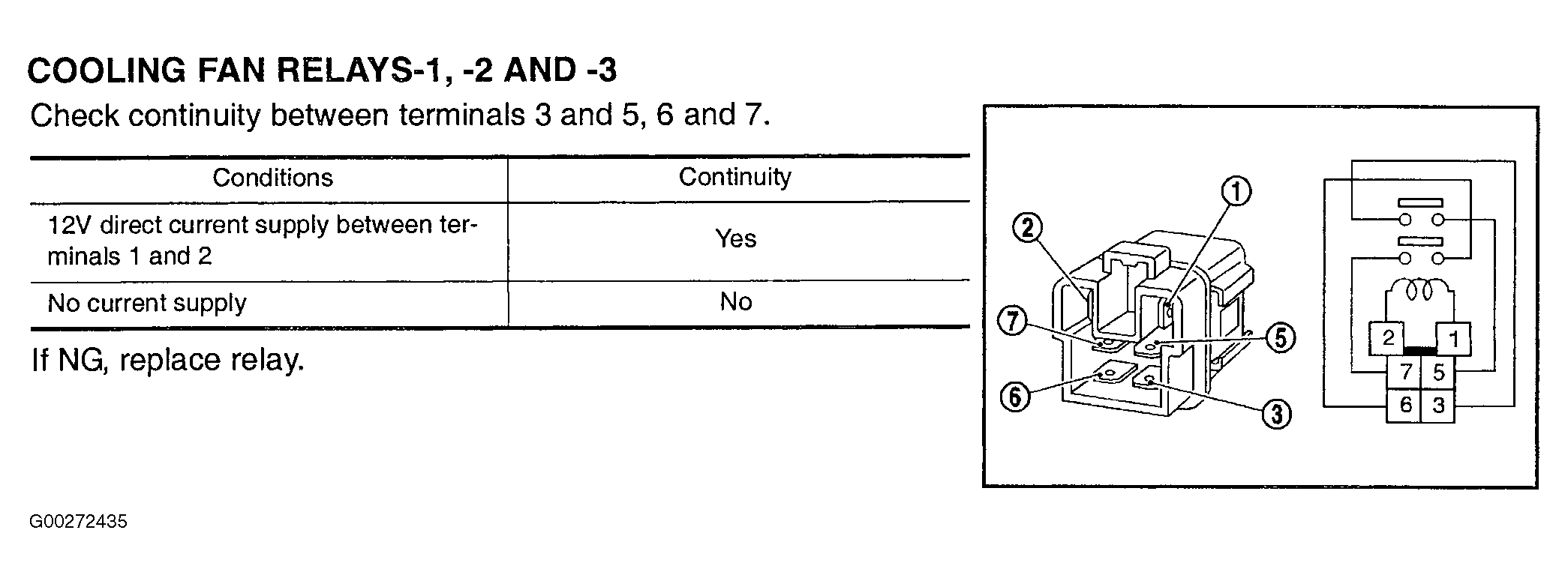

Fig 1: DTC P1217 Component Inspection (Cooling Fan Relays 1, 2 & 3)
G00272435Courtesy of NISSAN MOTOR CO., U.S.A.

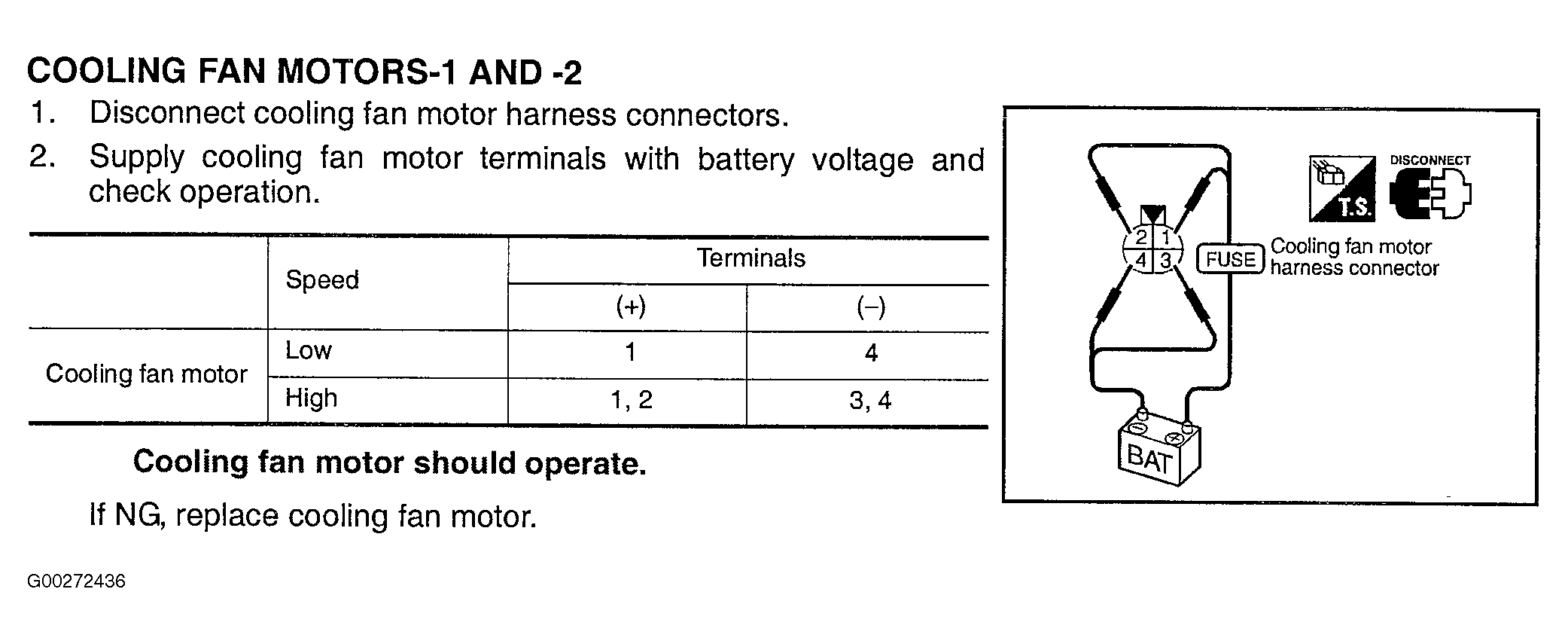

Fig 2: DTC P1217 Component Inspection (Cooling Fan Motors 1 & 2)
G00272436Courtesy of NISSAN MOTOR CO., U.S.A.
