Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 4 .

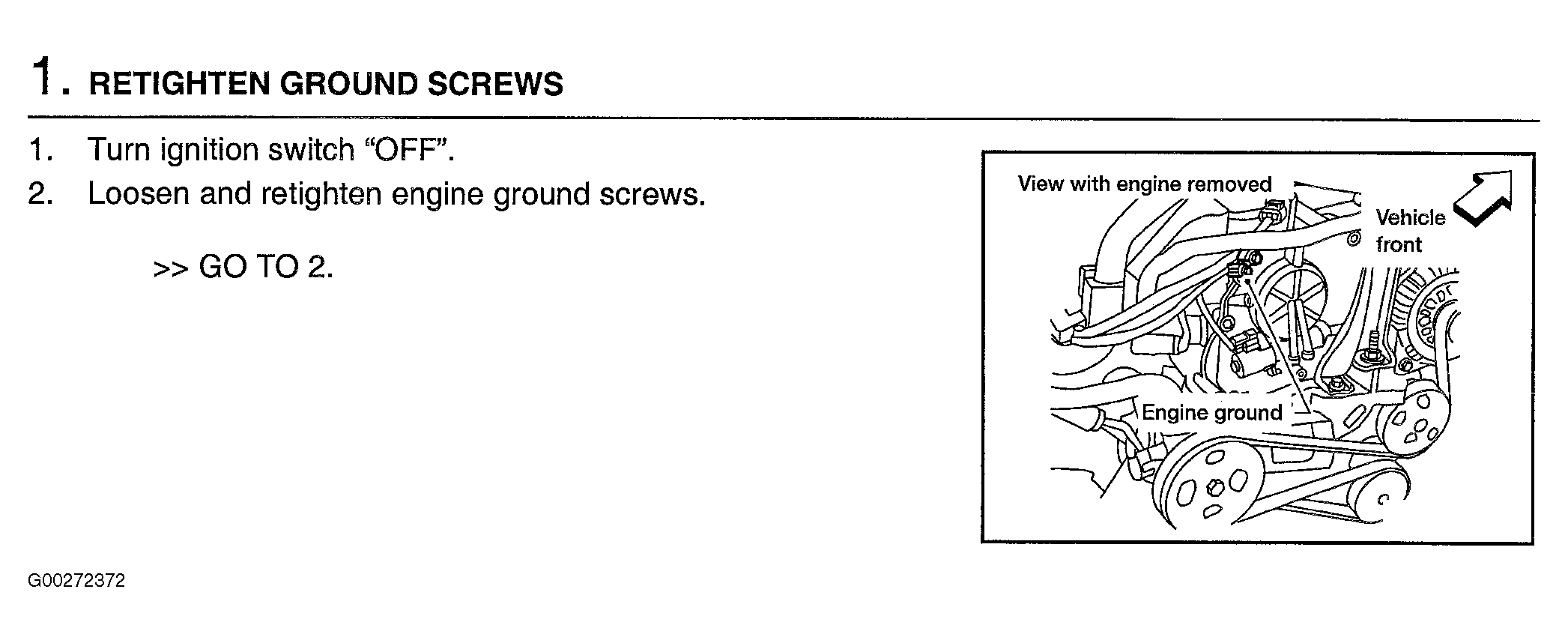

Fig 1: DTC P1122 Diagnostic Procedure (Step 1)
G00272372Courtesy of NISSAN MOTOR CO., U.S.A.

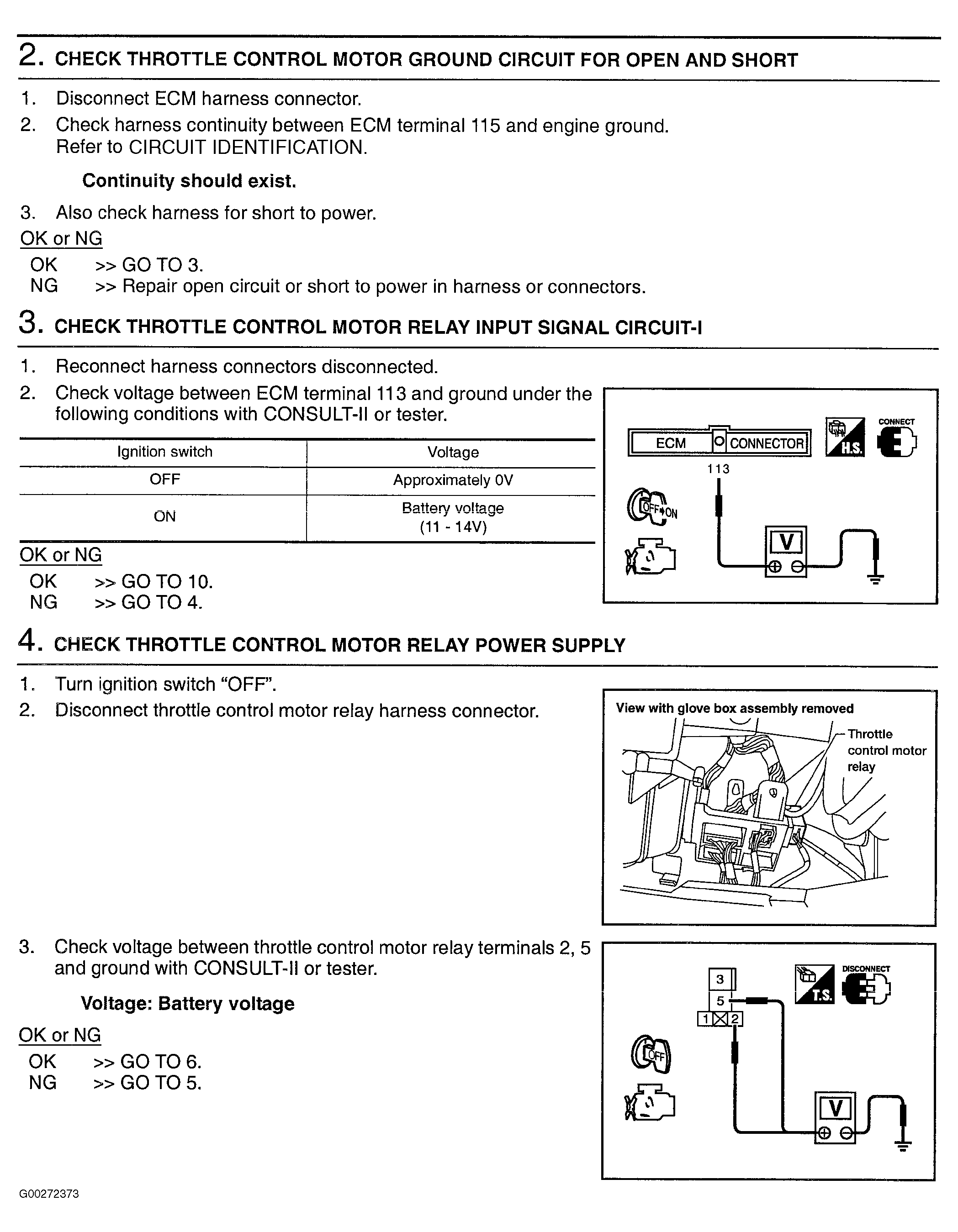

Fig 2: DTC P1122 Diagnostic Procedure (Steps 2-4)
G00272373Courtesy of NISSAN MOTOR CO., U.S.A.

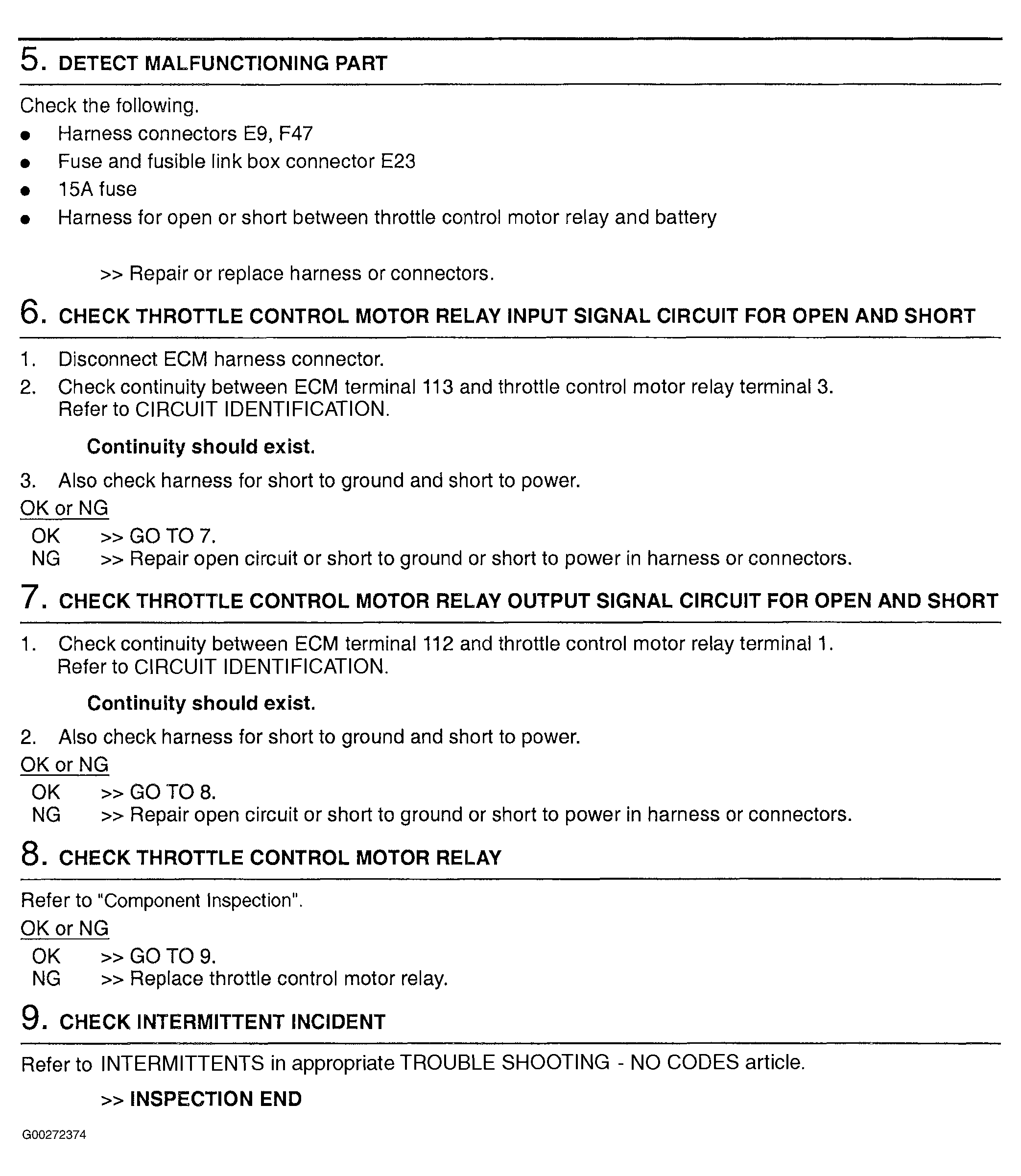

Fig 3: DTC P1122 Diagnostic Procedure (Steps 5-9)
G00272374Courtesy of NISSAN MOTOR CO., U.S.A.

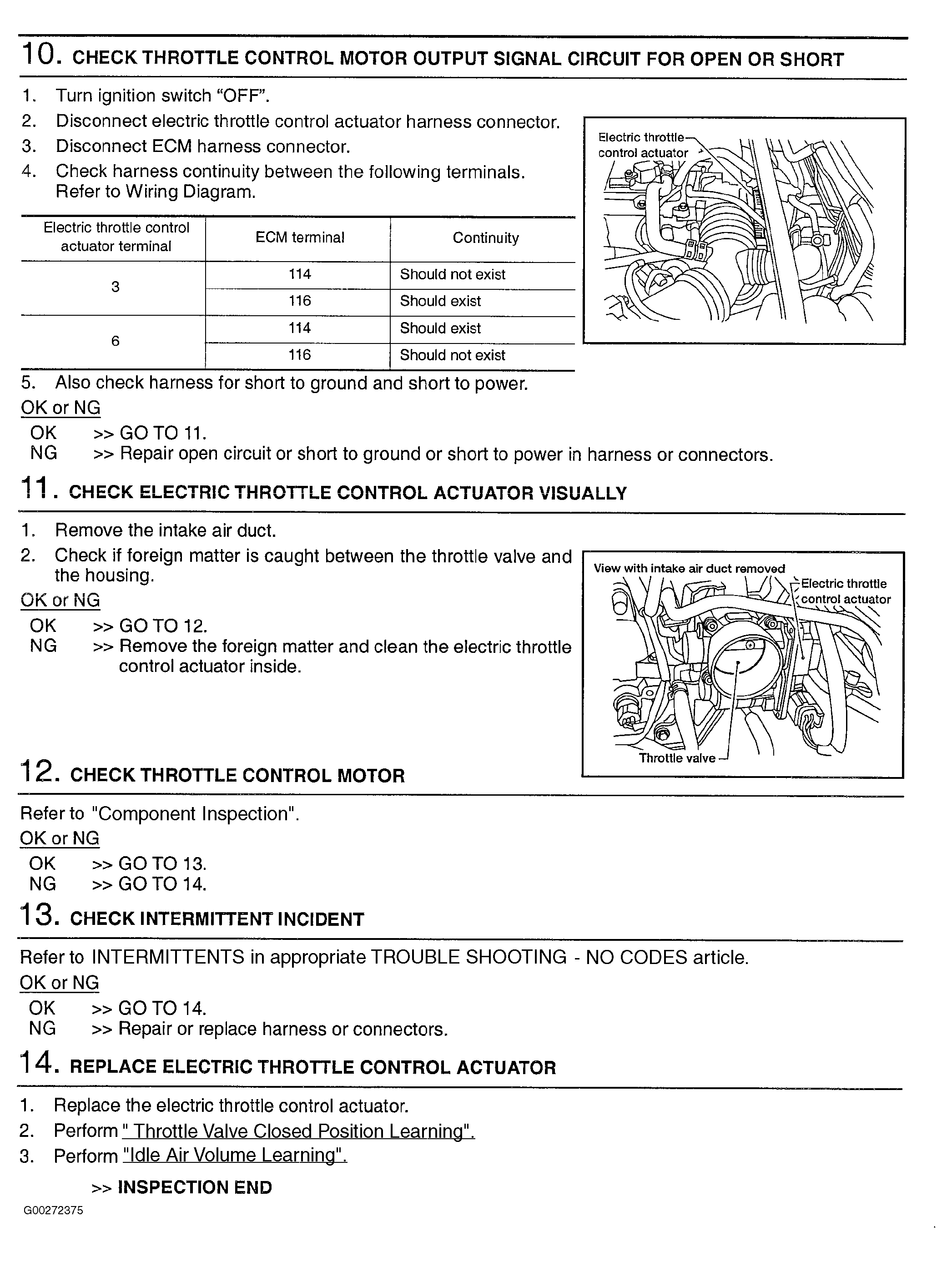

Fig 4: DTC P1122 Diagnostic Procedure (Steps 10-14)
G00272375Courtesy of NISSAN MOTOR CO., U.S.A.
