Overall Function Check

WARNING: Never remove the radiator cap when the engine is hot. Serious burns could be caused by high-pressure fluid escaping from the radiator. Wrap a thick cloth around the cap. Carefully remove the cap by turning it a quarter turn to allow built-up pressure to escape. Then turn all the way off.

Use this procedure to check the overall function of the coolant overtemperature enrichment protection check, a DTC might not be confirmed. See Fig 1 or Fig 2 .

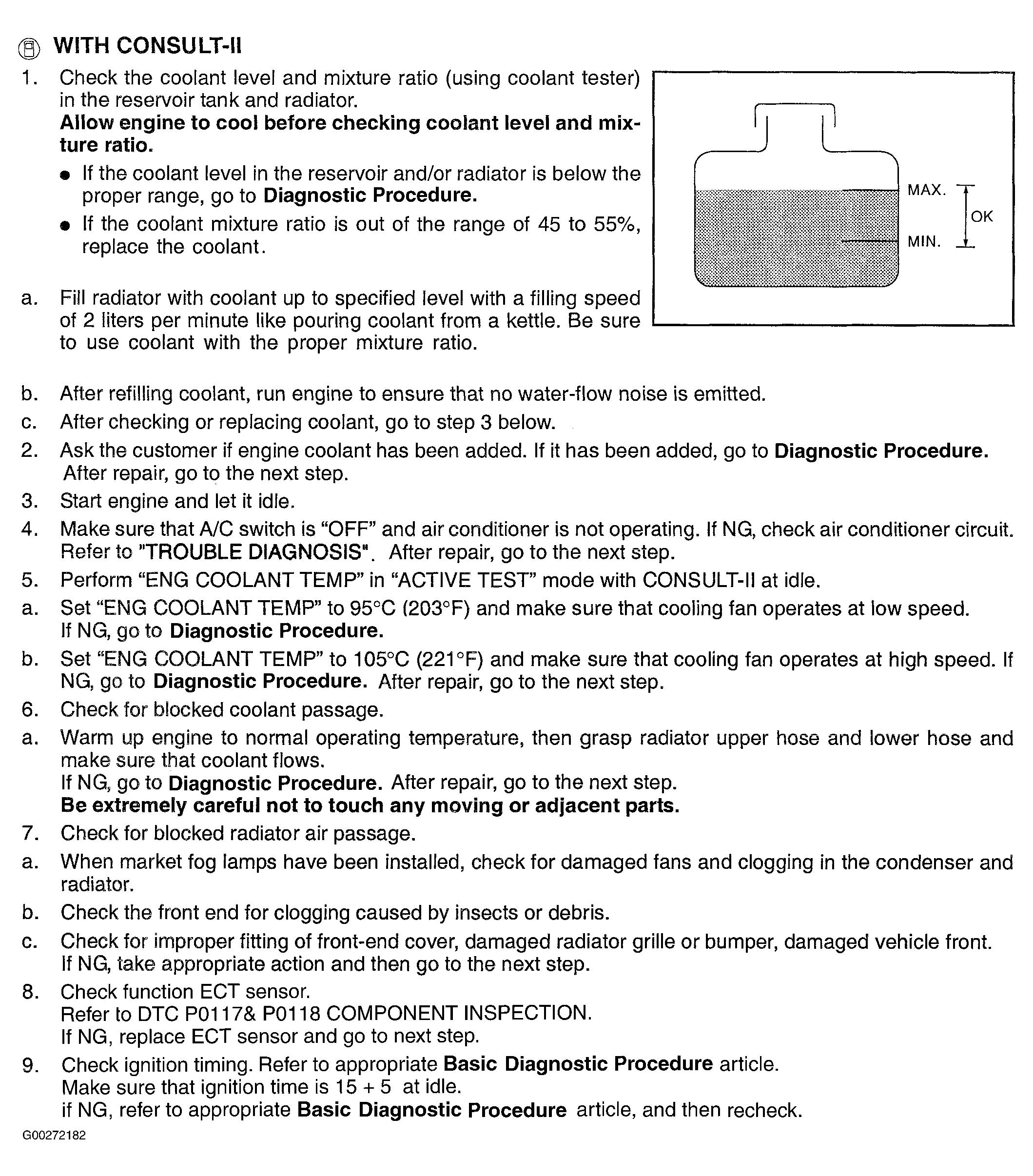

Fig 1: DTC P0217 Overall Function Check With CONSULT-II
G00272182Courtesy of NISSAN MOTOR CO., U.S.A.

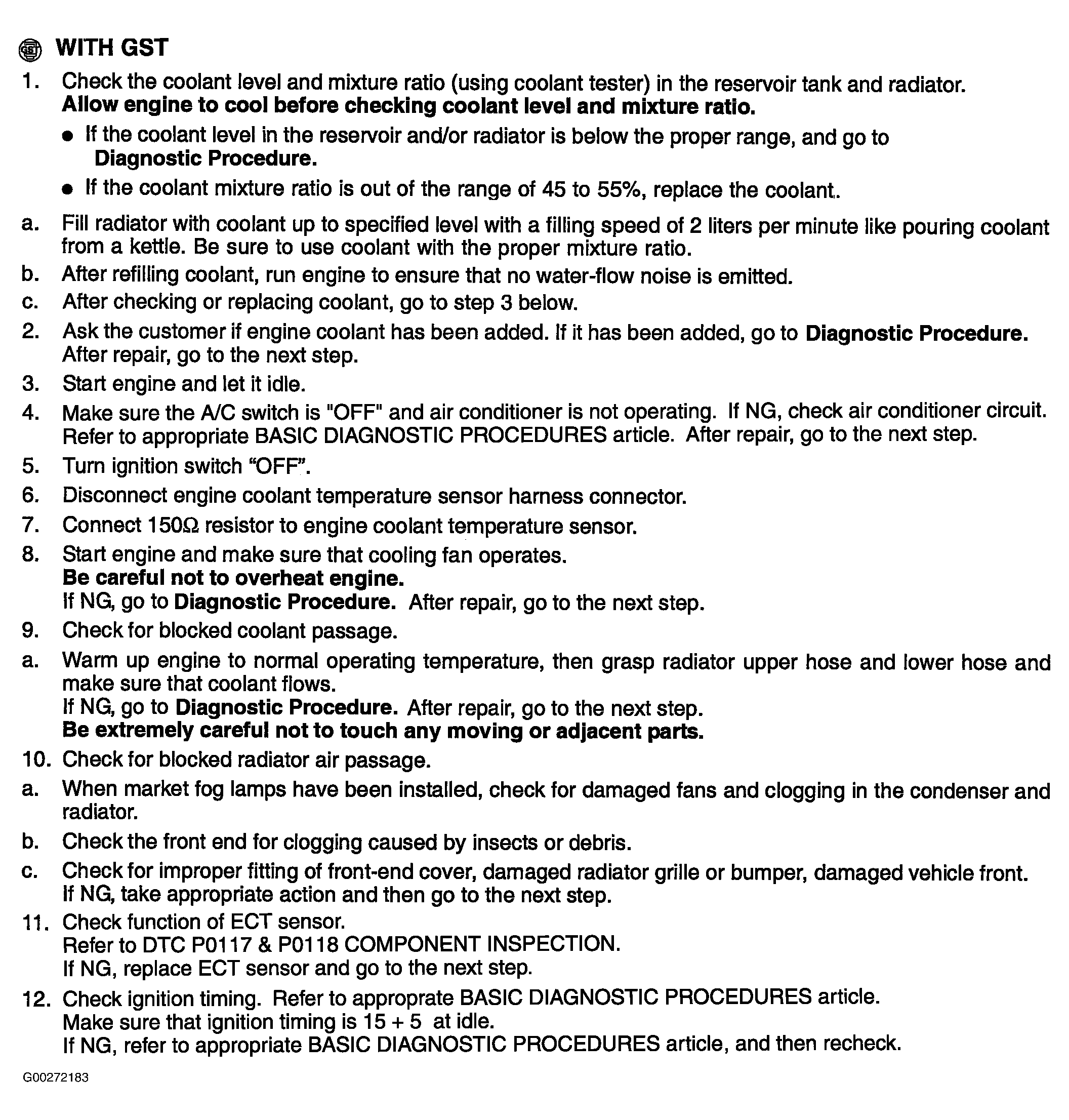

Fig 2: DTC P0217 Overall Function Check With GST
G00272183Courtesy of NISSAN MOTOR CO., U.S.A.
