Circuit Identification

For circuit identification, see Fig 1 .

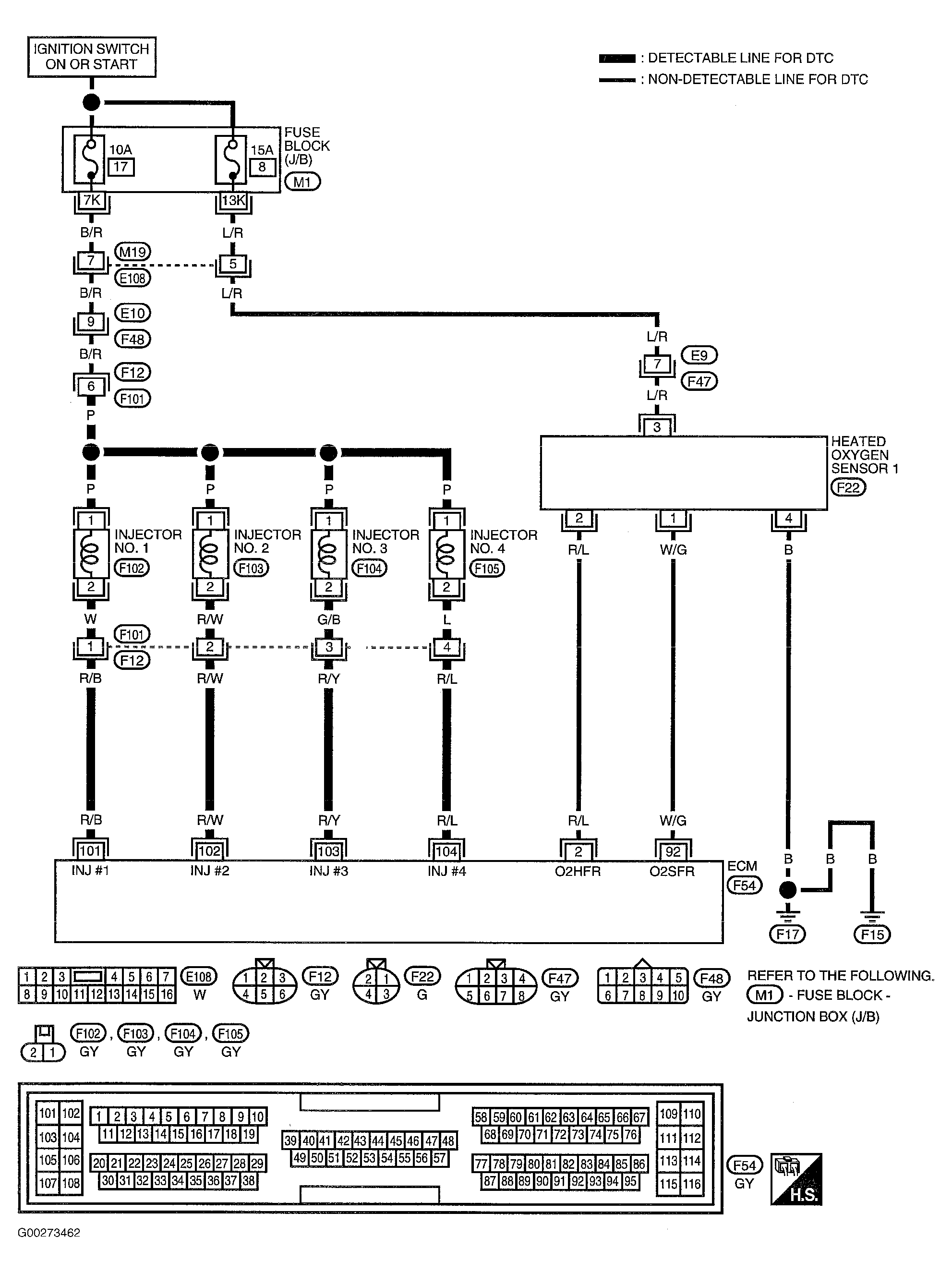

Fig 1: DTC P0171 Fuel Injection System Function Circuit Diagram

G00273462

Courtesy of NISSAN MOTOR CO., U.S.A.
