Component Inspection

For component inspection, see Fig 1 .

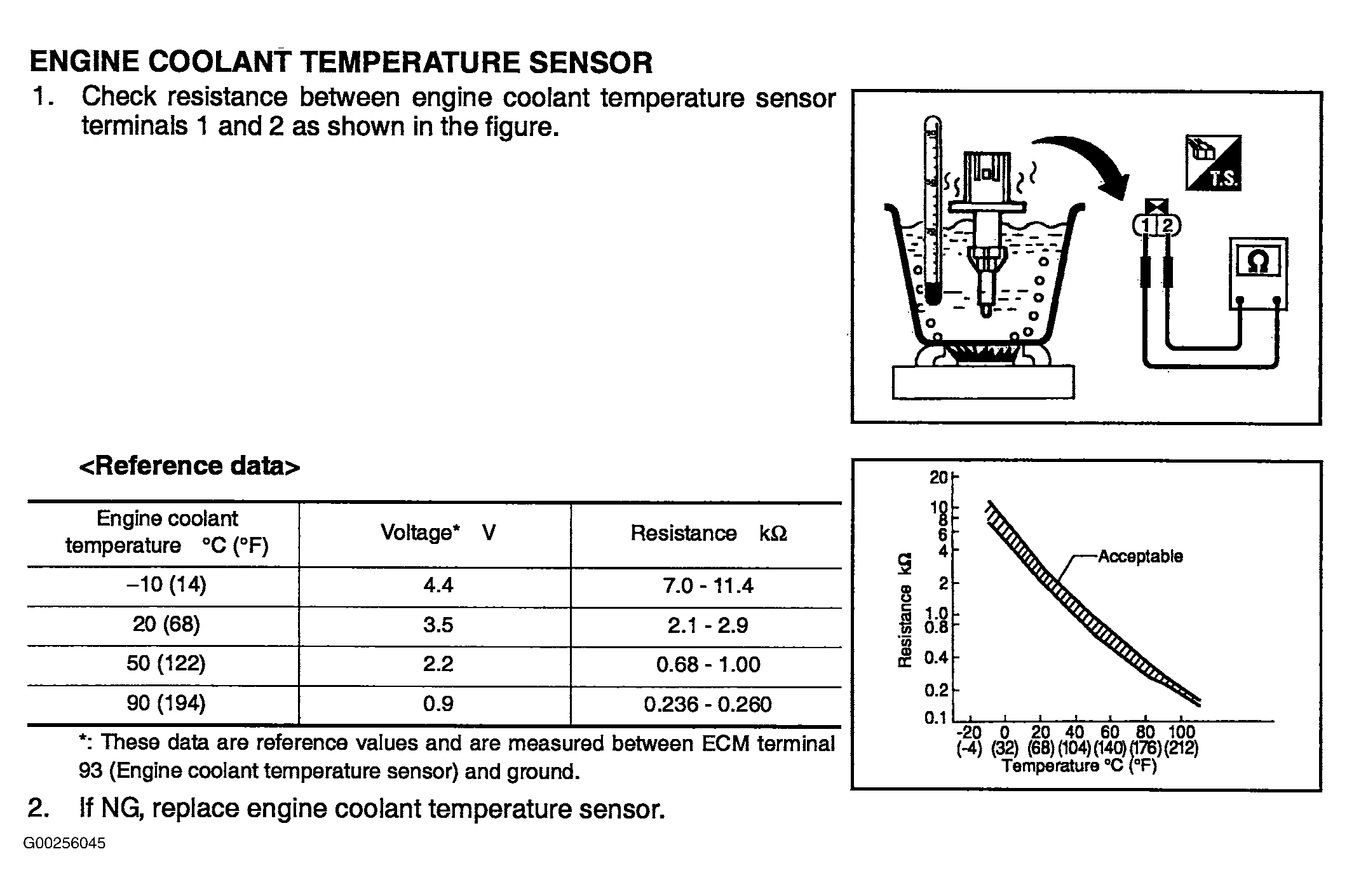

Fig 1: DTC P0125 Component Inspection
G00256045Courtesy of NISSAN MOTOR CO., U.S.A.
