Circuit Identification

For circuit identification, see Fig 1 .

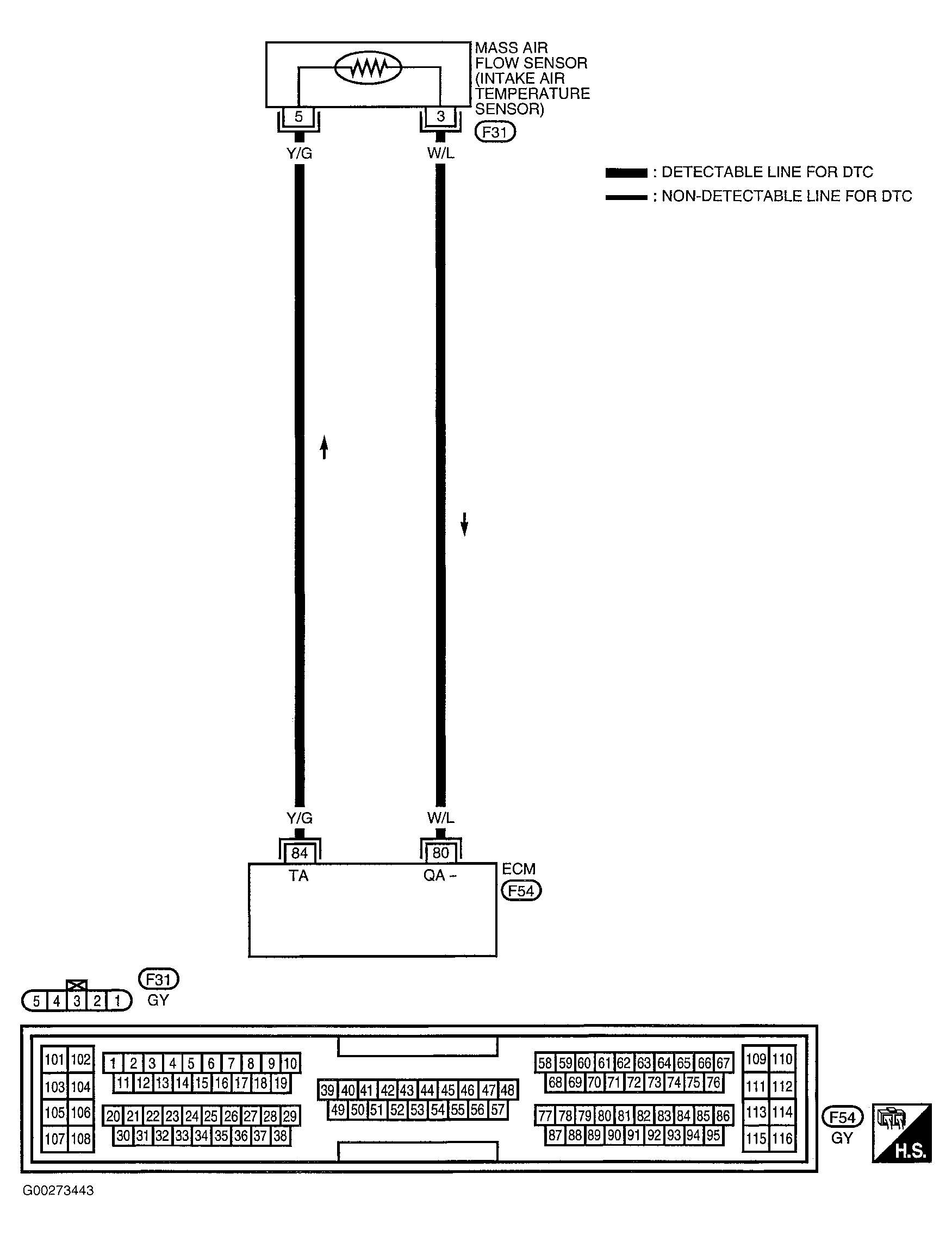

Fig 1: DTCs P0112 & P0113 IAT Sensor Circuit Diagram
G00273443Courtesy of NISSAN MOTOR CO., U.S.A.
