Home >> Nissan-Datsun >> 2003 >> Sentra SE-R, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics (Qr25DE) >> Diagnostic Tests >> DTC P0011: Intake Valve Timing (IVT) Control Performance Problem >> Diagnostic Procedure

Diagnostic Procedure

For diagnostic procedure, see Fig 1 .

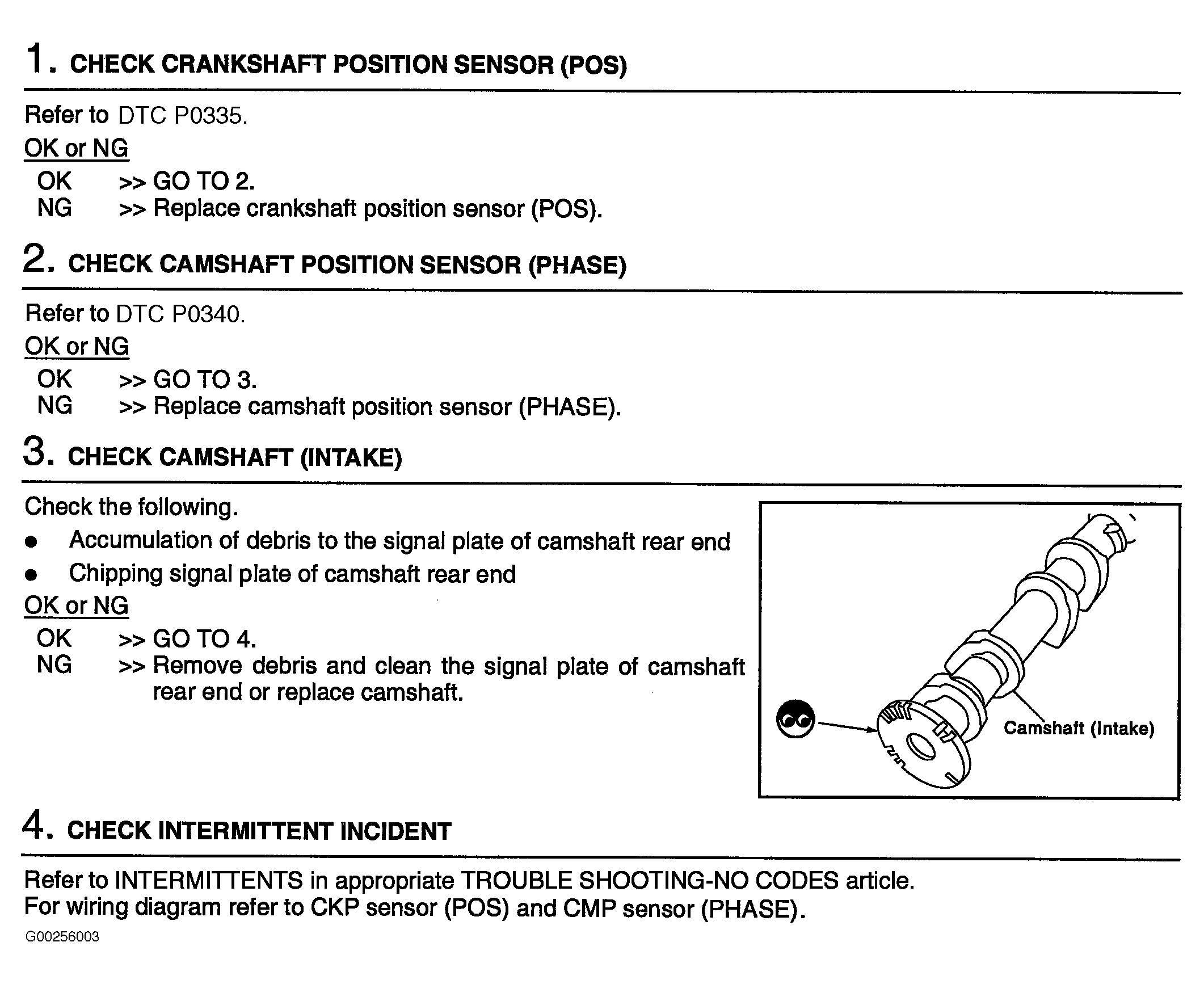

Fig 1: DTC P0011 Diagnostic Procedure
G00256003Courtesy of NISSAN MOTOR CO., U.S.A.
