With CONSULT-II

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "ETHANOL M/R ADJ" in "WORK SUPPORT" mode with CONSULT-II, then touch "START".

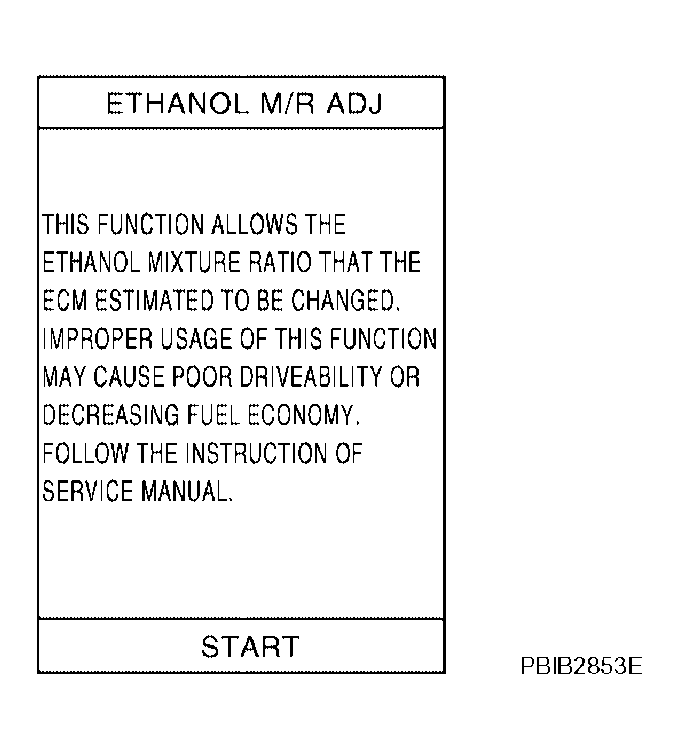

    Fig 1: CONSULT-II Screen Display - Ethanol M/R ADJ
    G04184958Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Select "E35" and then touch "UPDATE".
    Fig 2: CONSULT-II Screen Display - Ethanol M/R ADJ
    G04184959Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Crank engine and make sure that engine starts.

    If NG, go to next step.

  5. Select "E70" and then touch "UPDATE".

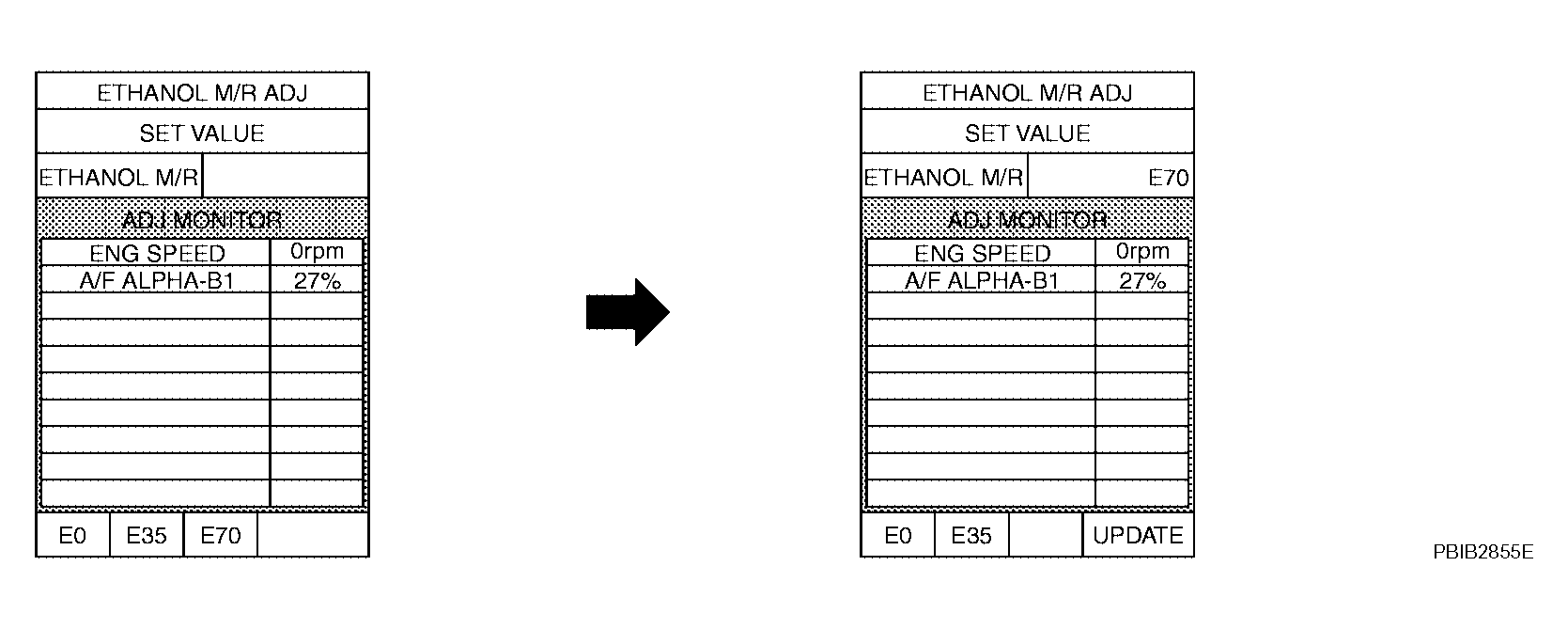

    Fig 3: CONSULT-II Screen Display - Ethanol M/R ADJ
    G04184960Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Crank engine and make sure that engine starts.
