Without CONSULT-II

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Check air passage continuity and operation delay time under the following conditions.

AIR PASSAGE CONTINUITY SPECIFICATION

Condition Air passage continuity between A and B Air passage continuity between A and C
12V direct current supply between terminals 1 and 2 Yes No
No supply No Yes

Operation takes less than 1 second  .

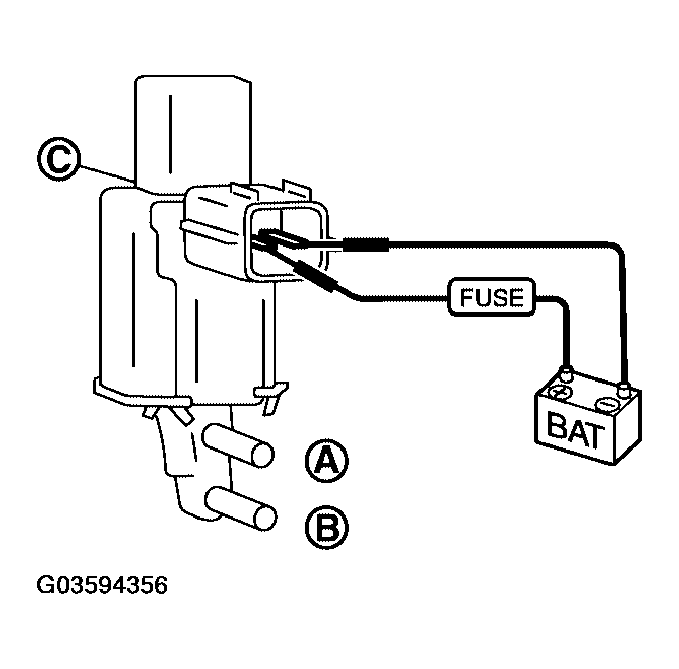

Fig 1: Checking Air Passage Continuity
G03594356Courtesy of NISSAN MOTOR CO., U.S.A.
