Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative cable.
  2. Remove cluster lid C. Refer to , "CLUSTER LID C ".
  3. Remove the five AV switch screws.
  4. Carefully remove the AV switch.

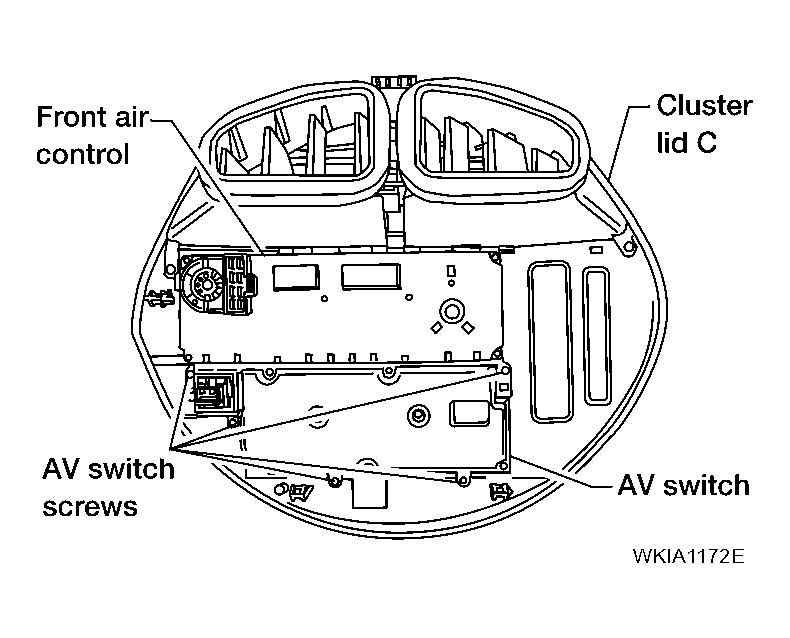

    Fig 1: Identifying AV Switch
    G04201526Courtesy of NISSAN MOTOR CO., U.S.A.
