Transfer Fluid: Replacement: Filling

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove filler plug and add transfer fluid until fluid level reaches the specified limit near filler plug mounting hole.

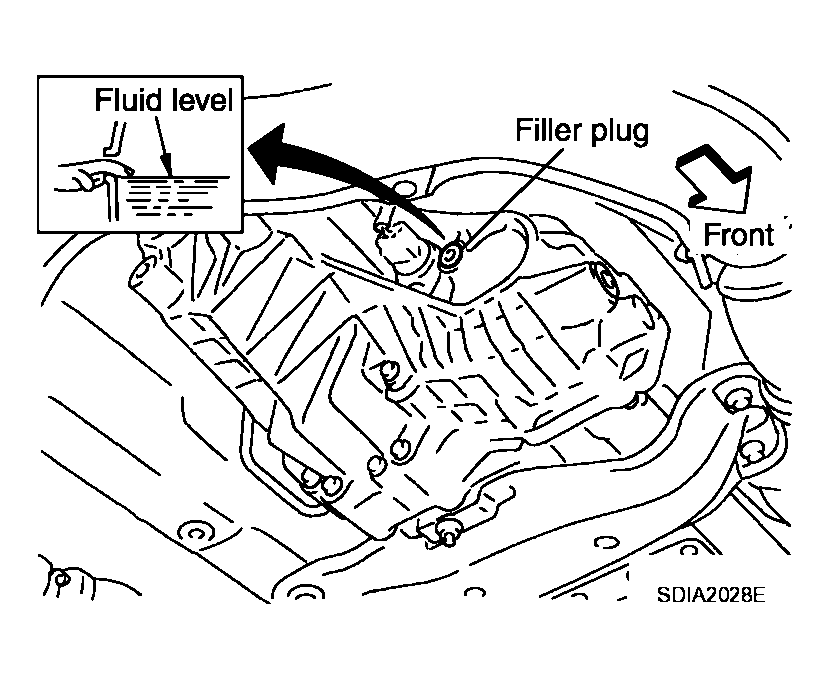

    Fig 1: Identifying Filler Plug
    G04121203Courtesy of NISSAN MOTOR CO., U.S.A.

    Fluid capacity

    : Approx. 1.25 l (2-5/8 US pt, 2-1/4 lmp pt)

    CAUTION: Carefully fill the fluid. (Fill up for approx. 3 minutes.)
  2. Leave the vehicle for 3 minutes, and check the fluid level again.
  3. Set a new gasket onto filler plug and install it on transfer and tighten to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse gasket.
