Booster Drive

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Perform active test subject to the conditions below.
  • Do not operate brake pedal during active test.
  • Make sure the engine revolution is over 500 rpm.
  • Make sure the vehicle is not moving.

Touch "UP" and "DOWN" on the screen. Check that booster drive operates as shown in table below.

BOOSTER DRIVE OPERATING DESCRIPTION

Operation UP DOWN
STOP LAMP SW ON OFF
BST OPER SIG ON OFF
PRESS SENSOR 50 +/- 5 bar 0 bar
PRESS SEN 2 50 +/- 5 bar 0 bar
STP OFF RLY OFF OFF
NOTE: "TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.

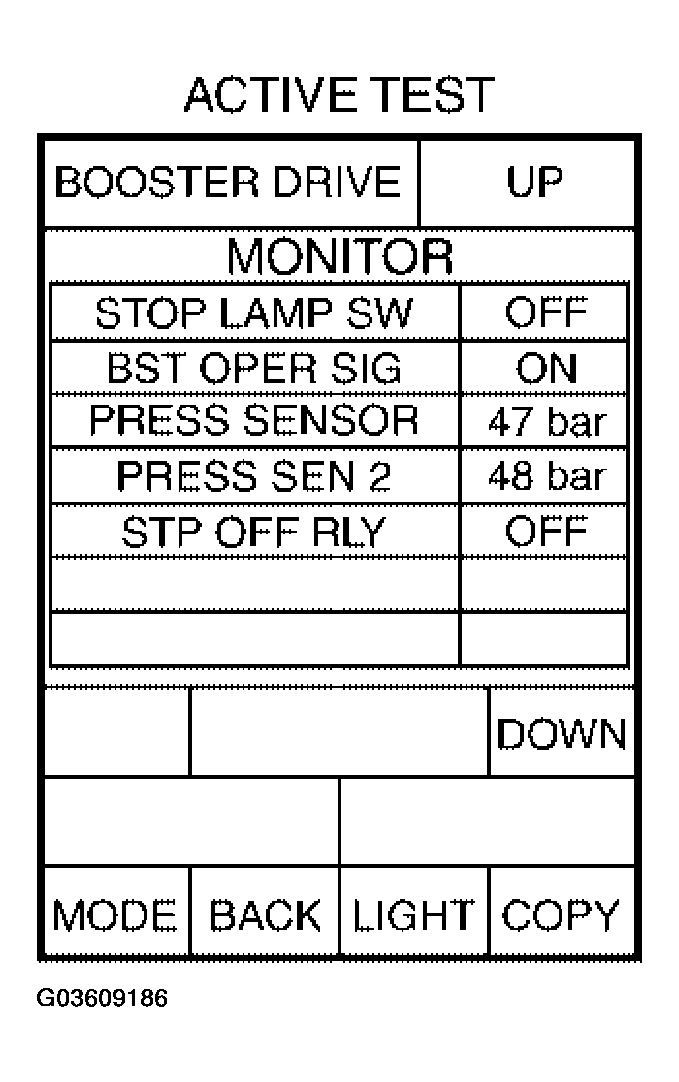

Fig 1: CONSULT-II Display - Active Test
G03609186Courtesy of NISSAN MOTOR CO., U.S.A.
